Human CDO Antibody

R&D Systems, part of Bio-Techne | Catalog # AF4384

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF4384
AF4384-SP

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

CyTOF-ready, Flow Cytometry, Immunocytochemistry, Western Blot

Cited:

Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Sheep IgG

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human CDO
Asp26-Pro943 (Leu669Ile)
Accession # NP_058648

Specificity

Detects human CDO in direct ELISAs and Western blots. In direct ELISAs and Western blots, approximately 50% cross-reactivity with recombinant mouse CDO is observed.

Clonality

Polyclonal

Host

Sheep

Isotype

IgG

Scientific Data Images for Human CDO Antibody

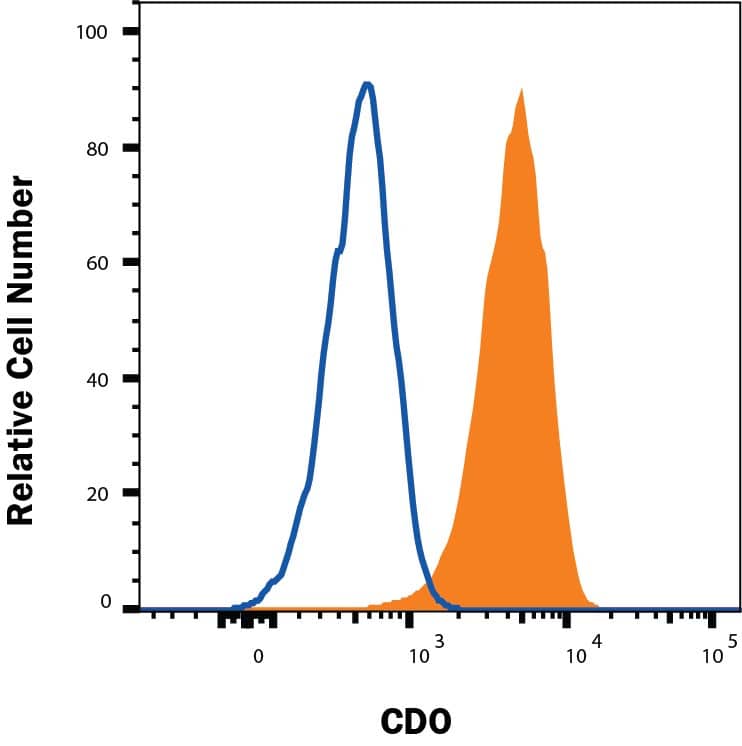

Detection of CDO antibody in C2C12 Mouse Cell Line antibody by Flow Cytometry.

Detection of CDO in C2C12 Mouse Cell Line by Flow Cytometry.

C2C12 mouse myoblast cell line was stained with Sheep Anti-Human CDO Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4384, filled histogram) or control antibody (5-001-A, open histogram), followed by NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (NL010).
CDO antibody in C2C12 Mouse Cell Line by Immunocytochemistry (ICC).

CDO in C2C12 Mouse Cell Line.

CDO was detected in immersion fixed C2C12 mouse myoblast cell line using Sheep Anti-Human CDO Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4384) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; NL010) and counterstained with DAPI (blue). Specific staining was localized to cell membranes. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

Detection of CDO in Jurkat cells by Flow Cytometry.

Jurkat cells were stained with Sheep Anti-Human CDO Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4384, filled histogram) or isotype control antibody (Catalog # 5-001-A, open histogram), followed by Phycoerythrin-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # F0126). View our protocol for Staining Membrane-associated Proteins.

Applications for Human CDO Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: C2C12 mouse myoblast and Jurkat cells

Immunocytochemistry

5-15 µg/mL
Sample: Immersion fixed C2C12 mouse myoblast cell line

Western Blot

0.1 µg/mL
Sample: Recombinant Human CDO (Catalog # 4384-CD)

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CDO

CDO (CAM-related/down‑regulated by oncogenes, also CDON; pronounced “kid-oh”) is a 190 kDa member of the Immunoglubulin (Ig) superfamily, Ig/Fibronectin (FN) type III repeat family of cell surface proteins (1). Human CDO is a type I transmembrane (TM) glycoprotein. It is synthesized as a 1287 amino acid (aa) precursor that contains a 25 aa signal sequence, a 938 aa extracellular domain (ECD), a 21 aa TM segment and a 303 aa cytoplasmic region (1, 2). The ECD contains five C2‑type Ig-like domains, followed by three FN type III repeats. The first FN repeat (aa 577‑673) is known to bind numerous cadherins, while the third (or juxtramembrane) FN type III repeat (aa 826‑923) binds SHH (3, 4). The intracellular region is believed to signal through various bHLH transcription factors (2). One alternate splice form is reported that shows a deletion of aa 1212‑1234 in the cytoplasmic tail. The ECD of human CDO is 85% aa identical to mouse CDO ECD. CDO is found on muscle precursor and neural progenitor cells of the embryo (5, 6). It likely promotes muscle differentiation, and contributes to axon guidance and neuronal patterning (2, 7, 8, 9). These effects may be mediated through two different receptor complexes. On muscle precursors, CDO apparently acts as both a coordinating and signaling subunit. Here, it integrates N- and M-cadherin, neogenin, netrin-3 and BOC into a cis-oriented receptor complex (2). While this complex has no identified ligand, intercellular cadherin interactions or netrin, may be enough to trigger CDO/cadherin/neogenin signaling. On axons, CDO may participate in a poorly‑defined receptor complex minimally composed of CDO, BOC and Gas1 that binds SHH, and interacts with PTCH1 (7, 8, 10).

References

  1. Kang, J.S. et al. (1997) J. Cell Biol. 138:203.
  2. Krauss, R.S. et al. (2005) J. Cell Sci. 118:2355.
  3. Yao, S. et al. (2006) Cell 125:343.
  4. Kang, J-S. et al. (2003) Proc. Natl. Acad. Sci. USA 100:3989.
  5. Kang, J-S. et al. (2002) EMBO J. 21:114.
  6. Zhang, W. et al. (2006) Mol. Cell. Biol. 26:3764.
  7. Okada, A. et al. (2006) Nature 444:369.
  8. Allen, B.L. et al. (2007) Genes Dev. 21:1244.
  9. Kang, J-S. et al. (2004) J. Cell. Biol. 167:493.
  10. Tenzen, T. et al. (2006) Dev. Cell 10:647.

Long Name

Cell Adhesion Molecule-related/Down-regulated by Oncogenes

Alternate Names

CDON, ORCAM

Entrez Gene IDs

50937 (Human); 57810 (Mouse)

Gene Symbol

CDON

UniProt

Additional CDO Products

Product Documents for Human CDO Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human CDO Antibody

For research use only
