Human CXCR6 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB699R

Recombinant Monoclonal Antibody.
R&D Systems, part of Bio-Techne

Key Product Details

Validated by

Biological Validation

Species Reactivity

Human

Applications

CyTOF-ready, Flow Cytometry

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Mouse IgG2B Clone # 56811R

Product Specifications

Immunogen

NS0 mouse myeloma cell line transfected with human CXCR6
Met1-Leu342
Accession # O00574

Specificity

Detects human CXCR6 in direct ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human CXCR6 Antibody

Detection of CXCR6 antibody in HEK293 Human cell line transfected with Human CXCR6 and eGFP antibody by Flow Cytometry.

Detection of CXCR6 in HEK293 Human cell line transfected with Human CXCR6 and eGFP by Flow Cytometry.

HEK293 Human cell line transfected with either (A) Human CXCR6 or (B) irrelevant transfectant and eGFP, was stained with Mouse Anti-Human CXCR6 Monoclonal Antibody (Catalog # MAB699R) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). Quadrant markers were set based on control antibody staining (Catalog # MAB0041). View our protocol for Staining Membrane-associated Proteins.

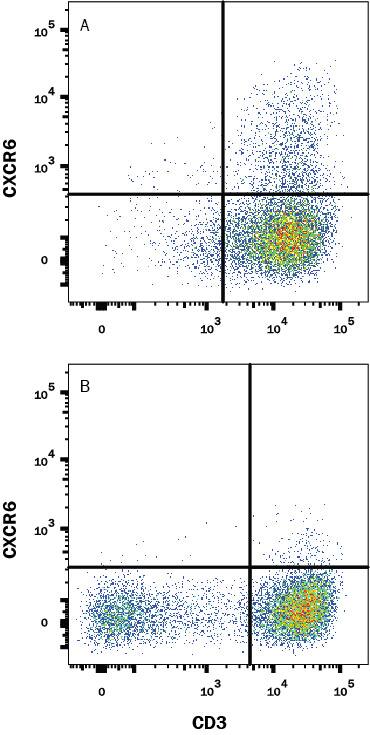

Detection of CXCR6 antibody in Human PBMCs antibody by Flow Cytometry.

Detection of CXCR6 in Human PBMCs by Flow Cytometry.

Human peripheral blood mononuclear cells (PBMCs) either (A) treated with 20 ng/mL Recombinant Human IL-2 (Catalog # 202-IL) for 6 days or (B) untreated were stained with Mouse Anti-Human CXCR6 Monoclonal Antibody (Catalog # MAB699R) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B) and Mouse Anti-Human CD3 epsilon PE-conjugated Monoclonal Antibody (Catalog # FAB100P). Quadrant markers were set based on control antibody staining (Catalog # MAB0041). View our protocol for Staining Membrane-associated Proteins.

Applications for Human CXCR6 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: HEK293 Human Cell Line transfected with Human CXCR6 and eGFP

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CXCR6

CXCR6, also known as Bonzo and STRL33, is a G protein coupled chemokine receptor expressed on activated T cells and tumor-infiltrating lymphocytes. It binds soluble CXCL16 and membrane-anchored CXCL16 expressed on dendritic cells and macrophages.

Alternate Names

Bonzo, CD186, CXCR6, STRL33

Entrez Gene IDs

10663 (Human); 80901 (Mouse); 100124593 (Rat)

Gene Symbol

CXCR6

UniProt

Additional CXCR6 Products

Product Documents for Human CXCR6 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human CXCR6 Antibody

For research use only
