Human Granulysin Antibody

R&D Systems, part of Bio-Techne | Catalog # AF3138

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF3138
AF3138-SP

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

CyTOF-ready, Intracellular Staining by Flow Cytometry, Western Blot

Cited:

Immunoprecipitation

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human Granulysin
Arg23-Leu145
Accession # P22749

Specificity

Detects human Granulysin in direct ELISAs and Western blots. In direct ELISAs and Western blots, less than 1% cross-reactivity with recombinant human NKG-2D is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Human Granulysin Antibody

Detection of Granulysin antibody in Human PBMCs antibody by Flow Cytometry.

Detection of Granulysin in Human PBMCs by Flow Cytometry.

Human peripheral blood mononuclear cells were treated for 24 hr with 50 ng/ml PMA and 200 ng/ml Ca2+ionomycin then stained with Goat Anti-Human Granulysin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3138, filled histogram) or control antibody (AB-108-C, open histogram), followed by Phycoerythrin-conjugated Anti-Goat IgG Secondary Antibody (F0107).

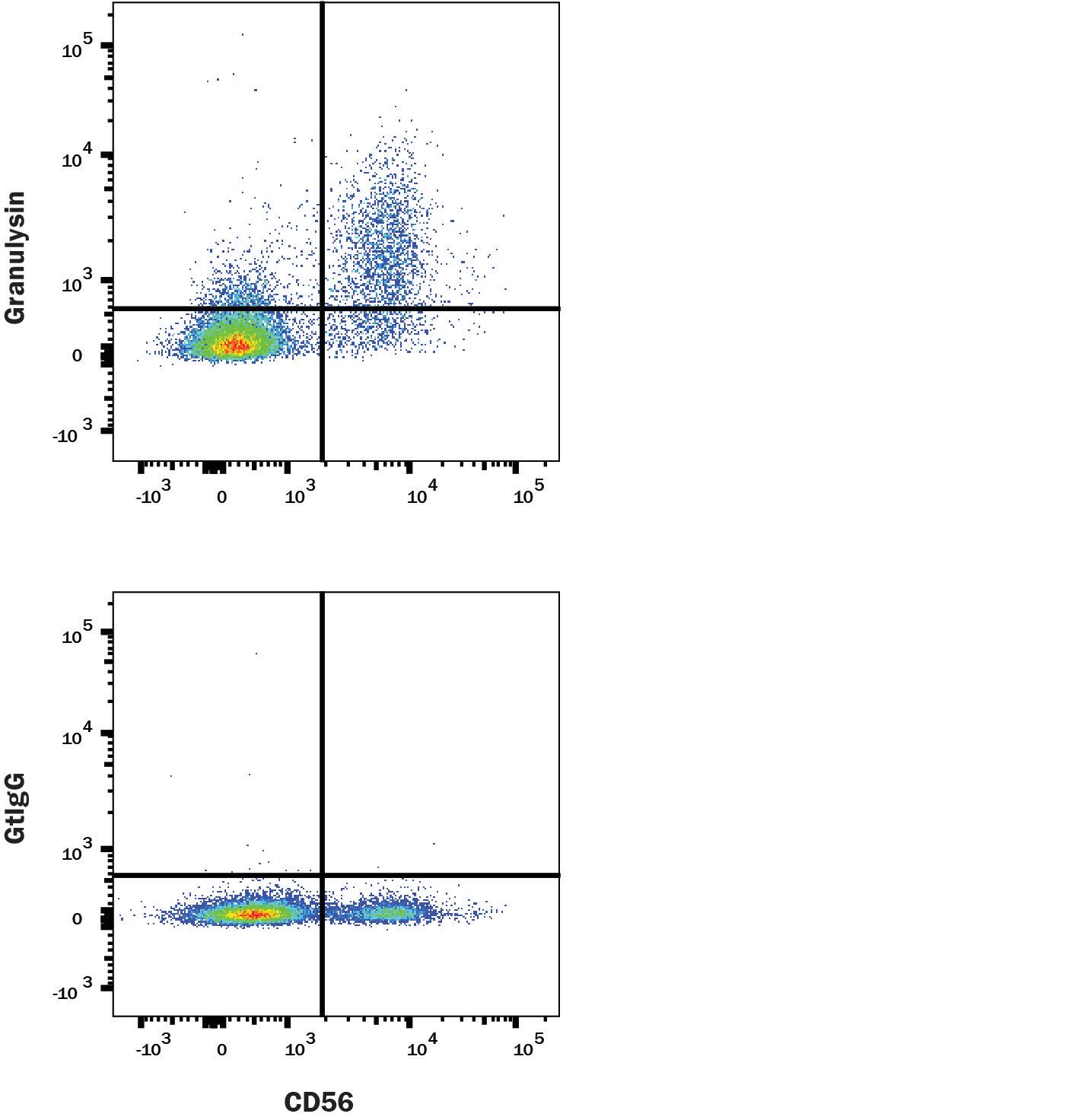

Detection of Granulysin in human PBMCs by Flow Cytometry

Human PBMCs were stained with Rabbit Anti-Human NCAM-1/CD56 PE-conjugated Monoclonal Antibody (Catalog # FAB24086P) and either (A) Goat Anti-Human Granulysin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3138) or (B) isotype control antibody (Catalog # AB-108-C) followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

Applications for Human Granulysin Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Intracellular Staining by Flow Cytometry

2.5 µg/106 cells
Sample: Human PBMCs

Western Blot

0.1 µg/mL
Sample: Recombinant Human Granulysin (Catalog # 3138-GN/CF)
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. See Certificate of Analysis for details.
*Small pack size (-SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Granulysin

Granulysin (formerly NKG5 or Lymphokine LAG-2) is a member of the saposin-like protein (SAPLIP) family of membrane disrupting proteins (1). Granulysin is expressed in granules of natural killer and activated cytotoxic T cells. It exhibits cytolytic activity against intracellular or extracellular microbes and also tumors, either alone or in synergy with perforin (2). Human granulysin has structural similarity and 30 - 40% aa identity to granulysins and NK-lysins of other mammals such as bovine, porcine and canine; similar peptides in rodents have not been identified (1). The 15 kDa unglycosylated protein contains five helical domains; helix 2 and 3 contain 9 arginines and one cysteine critical for activity. Peptides of either helix 2 or 3 will lyse bacteria, while helix 3 is needed to lyse tumor targets (3, 4). One isoform designated 519 uses a different start codon, has no signal peptide sequence and is poorly expressed (5). A post-translationally processed 9 kDa form is present in acidified granules and is less lytic than the 15 kDa form at granule pH (6). IL-15 is necessary and sufficient for granulysin upregulation in CD8 T cells (2). Nanomolar granulysin promotes chemotaxis and increases production of chemokines by monocytic cells, while micromolar local concentrations are needed for lysis (7). Experimental evidence supports the following mechanism for activity against intracellular pathogens (8). First, granulysin forms clusters in lipid rafts due to interaction of positive charges in helices 2-3 with acidic sphingolipids. After endocytosis, early endosomes fuse with phagosomes, probably regulated by small GTPase rab5. Granulysin binds microbial membranes through charge interactions and disrupts them, probably via scissoring actions of granulysin molecules (9, 10).

References

  1. Clayberger, C. and A.M. Krensky (2003) Curr. Opin. Immunol. 15:560.
  2. Ma, L.L. et al. (2002) J. Immunol. 169:5787.
  3. Wang, Z. et al. (2000) J. Immunol. 165:1486.
  4. Linde, C.M.A. et al. (2005) Infect. Immun. 73:6332.
  5. Yabe, T. et al. (1990) J. Exp. Med. 172:1159.
  6. Hanson, D.A. et al. (1999) Mol. Immunol. 36:413.
  7. Deng, A. et al. (2005) J. Immunol. 174:5243.
  8. Walch, M. et al. (2005) J. Immunol. 174:4220.
  9. Ernst, W.A. et al. (2000) J. Immunol. 165:7102.
  10. Anderson, D.H. et al. (2003) J. Mol. Biol. 325:355.

Alternate Names

GNLY, LAG2, Lymphokine, NKG5, TLA519

Entrez Gene IDs

10578 (Human)

Gene Symbol

GNLY

UniProt
