Human ICAM-5 Antibody

R&D Systems, part of Bio-Techne | Catalog # AF1950

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF1950
AF1950-SP

Key Product Details

Species Reactivity

Human

Applications

Validated:

Simple Western, Western Blot

Cited:

Flow Cytometry, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human ICAM-5
Ala28-Glu570
Accession # Q9UMF0

Specificity

Detects human ICAM-5 in direct ELISAs and Western blots. In direct ELISAs and Western blots, approximately 10% cross-reactivity with recombinant mouse ICAM-5 is observed and less than 2% cross-reactivity with recombinant human (rh) ICAM-1, rhICAM-2 and rhICAM-3 is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Human ICAM-5 Antibody

Detection of Human ICAM-5 antibody by Western Blot.

Detection of Human ICAM‑5 by Western Blot.

Western blot shows lysates of human brain (motor cortex) tissue. PVDF membrane was probed with 0.1 µg/mL of Goat Anti-Human ICAM-5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1950) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). Specific bands were detected for ICAM-5 at approximately 115 and 140 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

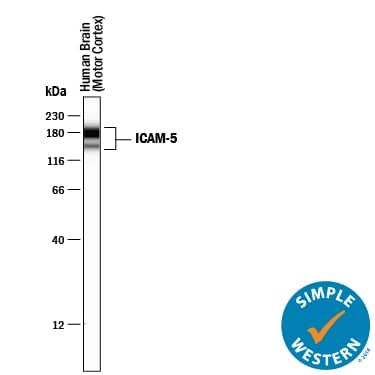

Detection of Human ICAM-5 antibody by Simple WesternTM.

Detection of Human ICAM‑5 by Simple WesternTM.

Simple Western lane view shows lysates of human brain (motor cortex) tissue, loaded at 0.2 mg/mL. Specific bands were detected for ICAM-5 at approximately 146 and 180 kDa (as indicated) using 1 µg/mL of Goat Anti-Human ICAM-5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1950) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Applications for Human ICAM-5 Antibody

Application
Recommended Usage

Simple Western

1 µg/mL
Sample:   Human brain (motor cortex) tissue

Western Blot

0.1 µg/mL
Sample: Human brain (motor cortex) tissue

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: ICAM-5

Intercellular adhesion molecule-5 (ICAM-5), also known as telencephalin, is a cell surface glycoprotein belonging to the immunoglobulin superfamily. Human ICAM-5 consists of an 832 amino acid (aa) extracellular domain containing 9 immunoglobulin (Ig) domains and 15 N-glycosylation sites, a 28 aa transmembrane domain, and a 64 aa cytoplasmic domain. ICAM-5 shares 38‑55% aa identity with other ICAMs, being most closely related to ICAM-1 (50% identity) and ICAM-3 (55% identity) (1). Human and mouse ICAM-5 share 85% aa identity. The tissue distribution of ICAM-5 is unique among ICAMs, being expressed only in telencephalic regions of the central nervous system (2). Like other ICAMs, ICAM-5 binds to the leukocyte integrin LFA-1 (CD11a/CD18) (3). Binding of ICAM-5 to LFA-1 is dependent on the first amino terminal Ig domain of ICAM-5 (4). ICAM-5 also displays homophilic binding, with the amino terminal Ig domain binding to Ig domains 4‑5. Homophilic binding of ICAM-5 is dependent of ICAM-5 being in a monomeric form. The monomeric form of ICAM-5 is found during dendritogenesis in developing brain, whereas a high molecular weight complex is found in mature neurons (5).

References

  1. Mizuno, T. et al. (1997) J. Biol. Chem. 272:1156.
  2. Yoshihara, Y. et al. (1994) Neuron 12:541.
  3. Tain, L. et al. (1997) J. Immunol. 158:928.
  4. Tain, L. et al. (2000) Eur. J. Immunol. 30:810.
  5. Tain, L. et al. (2000) J. Immunol. 150:243.

Long Name

Intercellular Adhesion Molecule 5

Alternate Names

ICAM5, Telencephalin

Entrez Gene IDs

7087 (Human); 15898 (Mouse)

Gene Symbol

ICAM5

UniProt

Additional ICAM-5 Products

Product Documents for Human ICAM-5 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human ICAM-5 Antibody

For research use only
