Human IL-7R alpha/CD127 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB306

R&D Systems, part of Bio-Techne

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human, Mouse

Applications

Validated:

CyTOF-ready, Flow Cytometry, Western Blot

Cited:

ELISA Capture, ELISA Development, Flow Cytometry, Immunocytochemistry, Immunoprecipitation, Neutralization, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 40131

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human IL-7 R alpha
Extracellular domain

Specificity

Detects human IL-7 R alpha in Western blots. In Western blots, approximately 5% cross-reactivity was observed with recombinant human(rh) IL‑10 R, rhIL‑2 R beta, rhIL‑5 R alpha, and rhIL‑6 R.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human IL-7R alpha/CD127 Antibody

Detection of IL-7 Ra/CD127 antibody in Human Blood Lymphocytes antibody by Flow Cytometry.

Detection of IL‑7 R alpha/CD127 in Human Blood Lymphocytes by Flow Cytometry.

Human peripheral blood lymphocytes were stained with Mouse Anti-Human CD3e PE-conjugated Monoclonal Antibody (Catalog # FAB100P) and either (A) Mouse Anti-Human IL-7 Ra/CD127 Monoclonal Antibody (Catalog # MAB306) or (B) Mouse IgG1Isotype Control (Catalog # MAB002) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B).

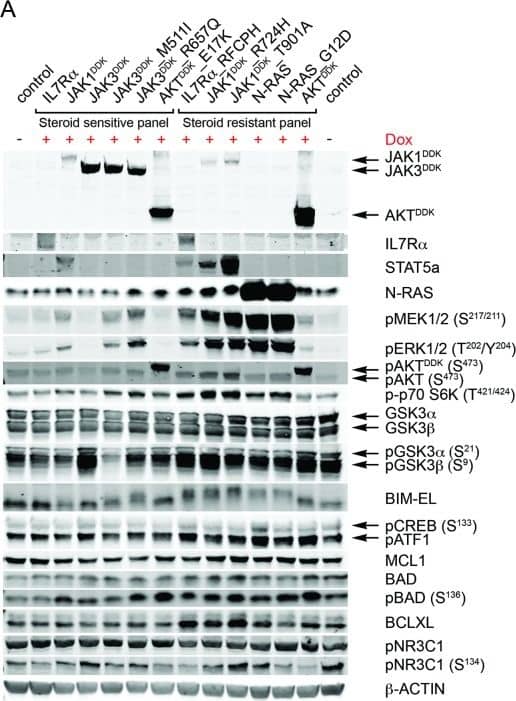

Detection of Human IL-7R alpha/CD127 by Western Blot

Detection of Human IL-7R alpha/CD127 by Western Blot

Steroid resistance induced by wild-type or mutant IL7R signaling molecules is associated with activation of MEK-ERK and/or AKT.(A) Western blot results for total and/or phosphorylated levels of IL7R signaling molecules following doxycycline induction (+Dox) of wild-type or mutant forms of IL7R, JAK1, JAK3, NRAS, or AKT molecules in SUPT1 cells. The steroid-sensitive and -resistant panels are indicated. Cellular lysate of parental SUPT1 cells was used as a control. (B–G) beta-actin-normalized protein concentrations for (B) NR3C1, (C) pMEK, (D) pERK, (E) pAKT, (F) pGSK3B, and (G) BCLXL in doxycycline-induced steroid-sensitive and -resistant SUPT1 lines. Significance levels were calculated using the Mann-Whitney U test. In (E), phospho-AKT levels are shown for all lines except for lines induced to express construct-driven AKT and AKTE17K. (H) Schematic overview of crosstalk between the proapoptotic NR3C1 response following steroid exposure and activation of MEK-ERK and AKT pathways downstream of IL7R signaling mutations. Green vectors indicate molecules that drive a proapoptotic, steroid-sensitive response, whereas red vectors indicate molecules that drive an antiapoptotic, steroid-resistant response. See also S7 Fig. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27997540), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human IL-7R alpha/CD127 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

2.5 µg/106 cells
Sample: Human peripheral blood lymphocytes

Western Blot

1 µg/mL
Sample: Recombinant Human IL-7 R alpha/CD127 Fc Chimera (Catalog # 306-IR)

Reviewed Applications

Read 1 review rated 5 using MAB306 in the following applications:

Formulation, Preparation, and Storage

Purification

Protein A or G purified from ascites

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: IL-7R alpha/CD127

Interleukin 7 Receptor alpha (IL-7 R alpha), also known as CD127, is a 75 kDa hematopoietin receptor superfamily member that plays an important role in lymphocyte differentiation, proliferation, and survival (1, 2). Mature human IL-7 R alpha consists of a 219 amino acid (aa) extracellular domain (ECD) with one fibronectin type-III domain and a WSXWS motif, a 25 aa transmembrane segment, and a 195 aa cytoplasmic domain (3). Alternate splicing of human IL-7 R alpha generates a secreted soluble form of the receptor (3). Within the ECD, human IL‑7 R alpha shares 67% aa sequence identity with mouse and rat IL-7 R alpha. IL-7 R alpha associates with the common gamma chain ( gammac) to form the functional high affinity IL-7 receptor complex (4). The gammac is also a subunit of the receptors for IL-2, -4, -9, -15, and -21. Human and mouse IL‑7 show cross-species activity through the IL-7 receptor (3, 5). IL-7 R alpha is expressed on double negative (CD4-/CD8-) and CD4+ or CD8+ single positive T cells as well as on CD8+ memory T cells and their precursors (6, 7). It is expressed early in B cell development, prior to the appearance of surface IgM (6). In mouse, IL-7 activation of IL-7 R alpha is critical for both T cell and B cell lineage development (8). In human, by contrast, it is required for T cell but not for B cell development (9). IL-7 induces the downregulation and shedding of cell surface IL‑7 R alpha (10). IL-7 R alpha additionally associates with TSLP R to form the functional receptor for thymic stromal lymphopoietin (11, 12). TSLP indirectly regulates T cell development by modulating dendritic cell activation (2, 13). Knockout of TSLP R in mice provokes minor changes in B and T cell development compared to those seen with IL-7 R alpha deletion (8, 14). The complexity of IL-7 R alpha biology is suggested by the competition between IL-7 and TSLP for receptor binding and by the ability of IL-7 R alpha to form functional complexes with SCF R and HGF R (11, 12, 15, 16).

References

  1. Mazzucchelli, R. and S.K. Durum (2007) Nat. Rev. Immunol. 7:144.
  2. Liu, Y-J. et al. (2007) Annu. Rev. Immunol. 25:193.
  3. Goodwin, R.G. et al. (1990) Cell 60:941.
  4. Noguchi, M. et al. (1993) Science 262:1877.
  5. Barata, J.T. et al. (2006) Exp. Hematol. 34:1133.
  6. Sudo, T. et al. (1993) Proc. Natl. Acad. Sci. USA 90:9125.
  7. Kaech, S.M. et al. (2003) Nat. Immunol. 4:1191.
  8. Peschon, J.J. et al. (1994) J. Exp. Med. 180:1955.
  9. Prieyl, J.A. and T.W. LeBien (1996) Proc. Natl. Acad. Sci. USA 93:10348.
  10. Vranjkovic, A. et al. (2007) Int. Immunol. 19:1329.
  11. Park, L.S. et al. (2000) J. Exp. Med. 192:659.
  12. Pandey, A. et al. (2000) Nat. Immunol. 1:59.
  13. Reche, P.A. et al. (2001) J. Immunol. 167:336.
  14. Al-Shami, A. et al. (2004) J. Exp. Med. 200:159.
  15. Jahn, T. et al. (2007) Blood 110:1840.
  16. Lai, L. et al. (2006) Blood 107:1776.

Long Name

Interleukin 7 Receptor alpha

Alternate Names

CD127, IL-7 R alpha, IL-7Ra, IL7R, IL7R alpha

Entrez Gene IDs

3575 (Human); 16197 (Mouse); 294797 (Rat); 102143679 (Cynomolgus Monkey)

Gene Symbol

IL7R

Additional IL-7R alpha/CD127 Products

Product Documents for Human IL-7R alpha/CD127 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human IL-7R alpha/CD127 Antibody

For research use only
