Human IL-7R alpha/CD127 Antibody

R&D Systems, part of Bio-Techne | Catalog # AF-306-PB

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF-306-PB
AF-306-SP

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human, Primate - Macaca mulatta (Rhesus Macaque)

Applications

Validated:

CyTOF-ready, Flow Cytometry, Western Blot

Cited:

Cell Selection, Flow Cytometry, Immunoprecipitation, Luminex Development, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human IL-7 R alpha/CD127

Specificity

Detects human IL-7 R alpha in direct ELISAs and Western blots. In direct ELISAs, less than 15% cross-reactivity with recombinant rat IL-7 R alpha and less than 5% cross-reactivity with recombinant mouse IL‑7 R alpha is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Human IL-7R alpha/CD127 Antibody

Detection of Human IL-7R alpha/CD127 by Flow Cytometry

Detection of Human IL-7R alpha/CD127 by Flow Cytometry

IL-7 response of CD4+ T cells from tuberculosis patients and healthy contacts.(a) IL-7-induced (10 ng/ml) STAT5 phosphorylation of CD4+ T cells from tuberculosis patients (n = 22) and healthy contacts (n = 24) measured by flow cytometry. The STAT5 phosphorylation level of non-stimulated cells has been subtracted of all values. (b) IFN gamma/CD40L-expressing CD4+ T cells after PPD re-stimulation in the presence or absence of IL-7 detected by flow cytometry. Non-stimulated values with or without IL-7 have been subtracted. (c) Induction of IFN gamma/CD40L-expressing CD4+ T cells by IL-7 and PPD stimulation. Absolute differences as compared to PPD alone are shown. (d) Plasma IL-6 levels of tuberculosis patients (n = 20) and healthy contacts (n = 24). An arbitrary threshold indicated by a dotted line was set to define tuberculosis patients with high (IL-6high) and low (IL-6low) concentrations of plasma IL-6. (e) STAT5 phosphorylation, and IL-7-induced PPD response (f) for tuberculosis patients with high or low plasma IL-6 level, as defined in (d). Median and interquartile range is depicted, and exact Mann-Whitney U test was applied for comparison of groups, whereas paired data was evaluated by Wilcoxon Signed-Rank test. Nominal p-values are indicated as * p < 0.05, ** p < 0.01, *** p < 0.001. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.ppat.1006425), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human IL-7R alpha/CD127 by Flow Cytometry

Detection of Human IL-7R alpha/CD127 by Flow Cytometry

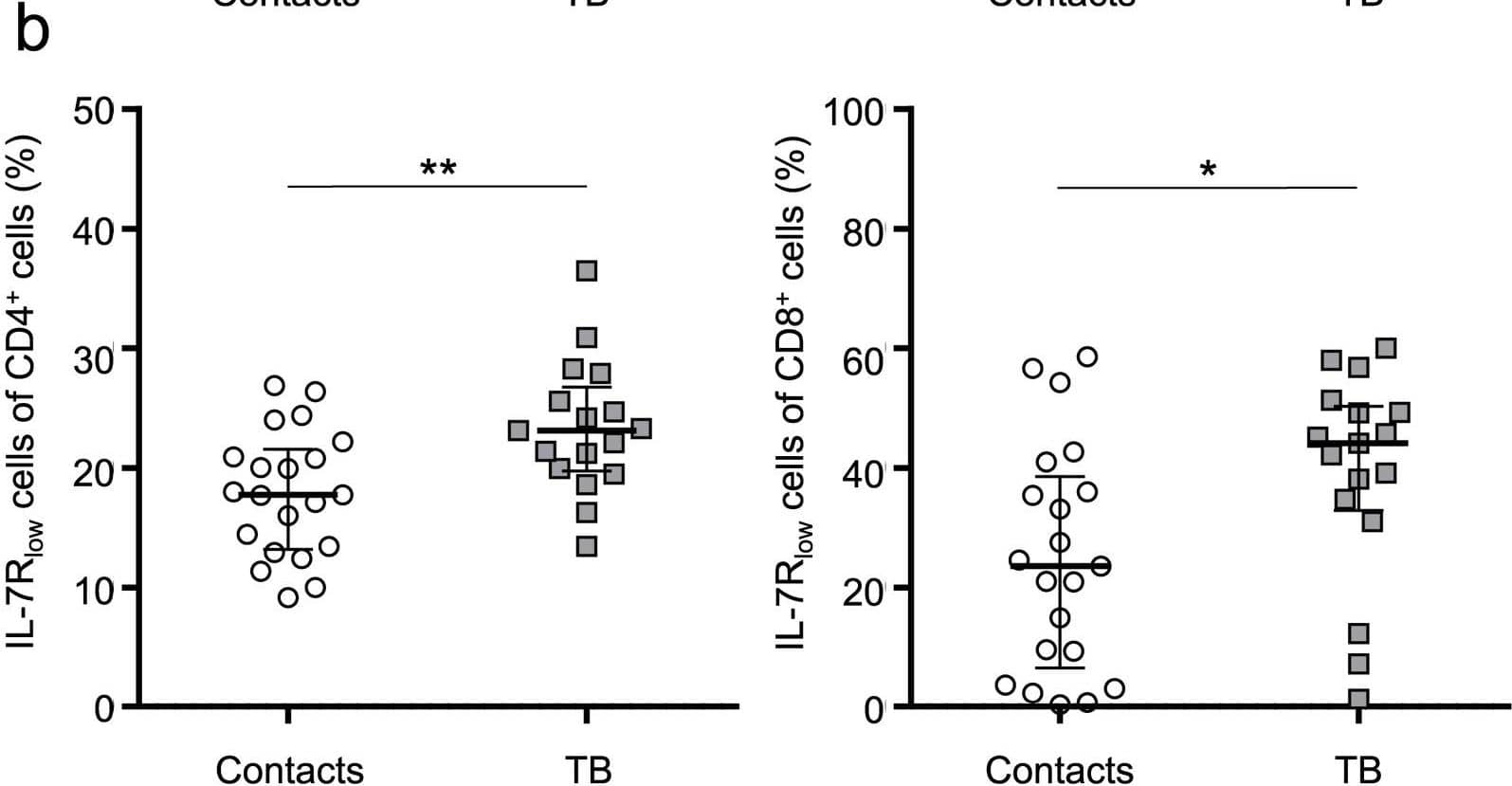

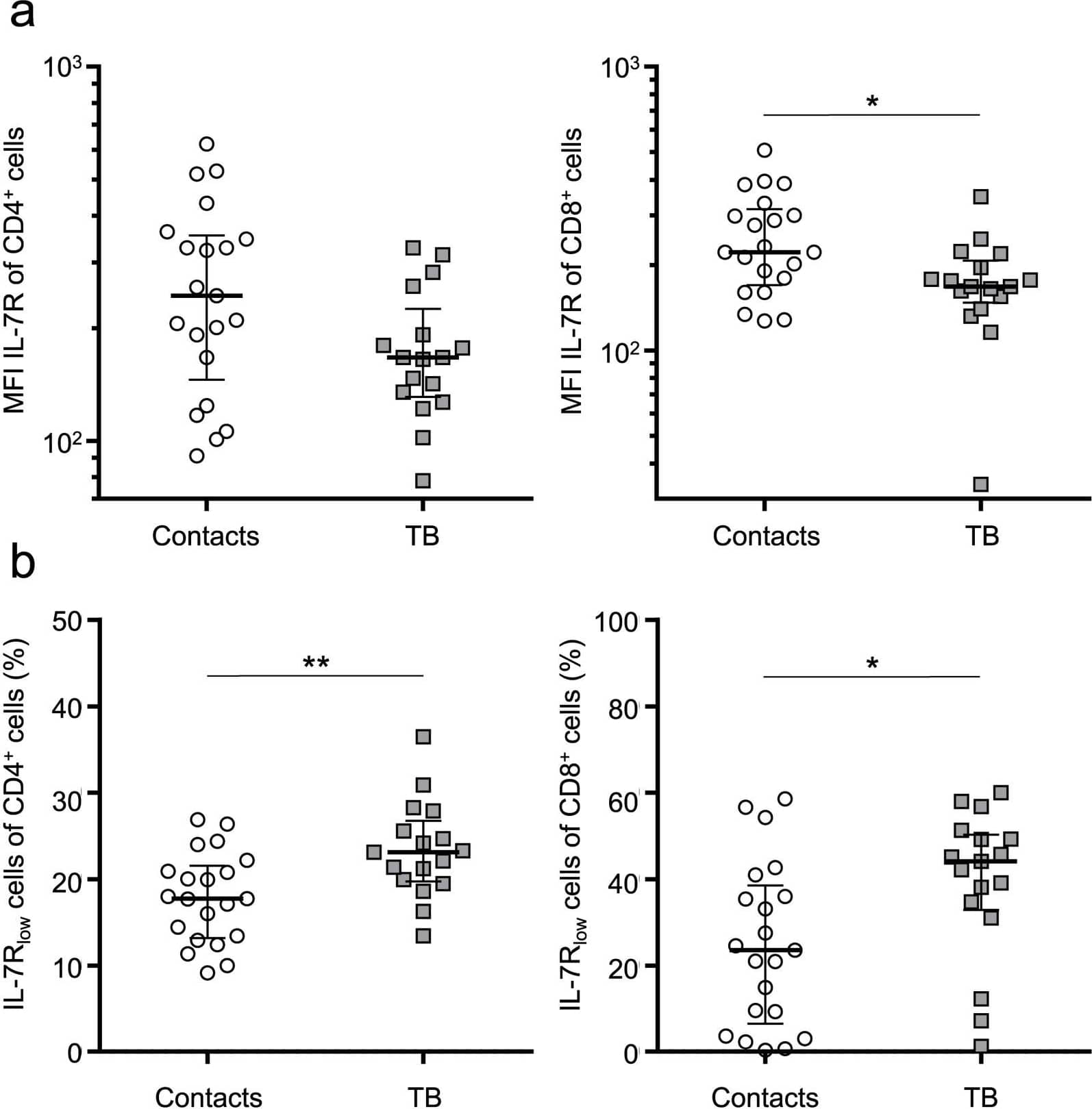

Membrane-associated IL-7R expression on CD4+ and CD8+ T cells.Membrane-associated IL-7R expression of CD4+ (left graphs) and CD8+ (right graphs) T cells from tuberculosis patients (n = 17) and healthy contacts (n = 21) analysed by flow cytometry. (a) Mean fluorescence intensity (MFI) analyses of IL-7R. (b) Proportions of IL-7Rlow-expressing CD4+ and CD8+ T cells from tuberculosis patients and healthy contacts. Median and interquartile range is depicted, and each symbol indicates mean values of duplicates from each individual donor. Exact Mann-Whitney U test used for comparison of groups. Nominal p-values are indicated as * p < 0.05, ** p < 0.01. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.ppat.1006425), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human IL-7R alpha/CD127 by Flow Cytometry

Detection of Human IL-7R alpha/CD127 by Flow Cytometry

Membrane-associated IL-7R expression on CD4+ and CD8+ T cells.Membrane-associated IL-7R expression of CD4+ (left graphs) and CD8+ (right graphs) T cells from tuberculosis patients (n = 17) and healthy contacts (n = 21) analysed by flow cytometry. (a) Mean fluorescence intensity (MFI) analyses of IL-7R. (b) Proportions of IL-7Rlow-expressing CD4+ and CD8+ T cells from tuberculosis patients and healthy contacts. Median and interquartile range is depicted, and each symbol indicates mean values of duplicates from each individual donor. Exact Mann-Whitney U test used for comparison of groups. Nominal p-values are indicated as * p < 0.05, ** p < 0.01. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.ppat.1006425), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human IL-7R alpha/CD127 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: Human peripheral blood CD4+ lymphocytes

Western Blot

0.1 µg/mL
Sample: Recombinant Human IL-7 R alpha/CD127 Fc Chimera (Catalog # 306-IR)

Reviewed Applications

Read 1 review rated 5 using AF-306-PB in the following applications:

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: IL-7R alpha/CD127

Interleukin 7 Receptor alpha (IL-7 R alpha), also known as CD127, is a 75 kDa hematopoietin receptor superfamily member that plays an important role in lymphocyte differentiation, proliferation, and survival (1, 2). Mature human IL-7 R alpha consists of a 219 amino acid (aa) extracellular domain (ECD) with one fibronectin type-III domain and a WSXWS motif, a 25 aa transmembrane segment, and a 195 aa cytoplasmic domain (3). Alternate splicing of human IL-7 R alpha generates a secreted soluble form of the receptor (3). Within the ECD, human IL‑7 R alpha shares 67% aa sequence identity with mouse and rat IL-7 R alpha. IL-7 R alpha associates with the common gamma chain ( gammac) to form the functional high affinity IL-7 receptor complex (4). The gammac is also a subunit of the receptors for IL-2, -4, -9, -15, and -21. Human and mouse IL‑7 show cross-species activity through the IL-7 receptor (3, 5). IL-7 R alpha is expressed on double negative (CD4-/CD8-) and CD4+ or CD8+ single positive T cells as well as on CD8+ memory T cells and their precursors (6, 7). It is expressed early in B cell development, prior to the appearance of surface IgM (6). In mouse, IL-7 activation of IL-7 R alpha is critical for both T cell and B cell lineage development (8). In human, by contrast, it is required for T cell but not for B cell development (9). IL-7 induces the downregulation and shedding of cell surface IL‑7 R alpha (10). IL-7 R alpha additionally associates with TSLP R to form the functional receptor for thymic stromal lymphopoietin (11, 12). TSLP indirectly regulates T cell development by modulating dendritic cell activation (2, 13). Knockout of TSLP R in mice provokes minor changes in B and T cell development compared to those seen with IL-7 R alpha deletion (8, 14). The complexity of IL-7 R alpha biology is suggested by the competition between IL-7 and TSLP for receptor binding and by the ability of IL-7 R alpha to form functional complexes with SCF R and HGF R (11, 12, 15, 16).

References

  1. Mazzucchelli, R. and S.K. Durum (2007) Nat. Rev. Immunol. 7:144.
  2. Liu, Y-J. et al. (2007) Annu. Rev. Immunol. 25:193.
  3. Goodwin, R.G. et al. (1990) Cell 60:941.
  4. Noguchi, M. et al. (1993) Science 262:1877.
  5. Barata, J.T. et al. (2006) Exp. Hematol. 34:1133.
  6. Sudo, T. et al. (1993) Proc. Natl. Acad. Sci. 90:9125.
  7. Kaech, S.M. et al. (2003) Nat. Immunol. 4:1191.
  8. Peschon, J.J. et al. (1994) J. Exp. Med. 180:1955.
  9. Prieyl, J.A. and T.W. LeBien (1996) Proc. Natl. Acad. Sci. USA 93:10348.
  10. Vranjkovic, A. et al. (2007) Int. Immunol. 19:1329.
  11. Park, L.S. et al. (2000) J. Exp. Med. 192:659.
  12. Pandey, A. et al. (2000) Nat. Immunol. 1:59.
  13. Reche, P.A. et al. (2001) J. Immunol. 167:336.
  14. Al-Shami, A. et al. (2004) J. Exp. Med. 200:159.
  15. Jahn, T. et al. (2007) Blood 110:1840.
  16. Lai, L. et al. (2006) Blood 107:1776.

Long Name

Interleukin 7 Receptor alpha

Alternate Names

CD127, IL-7 R alpha, IL-7Ra, IL7R, IL7R alpha

Entrez Gene IDs

3575 (Human); 16197 (Mouse); 294797 (Rat); 102143679 (Cynomolgus Monkey)

Gene Symbol

IL7R
