Human/Mouse/Rat FoxP3 PE-conjugated Antibody
R&D Systems, part of Bio-Techne | Catalog # IC8970P
Recombinant Monoclonal Antibody.
Key Product Details
Species Reactivity
Validated:
Human, Mouse, Rat
Cited:
Mouse
Applications
Validated:
Intracellular Staining by Flow Cytometry
Cited:
Flow Cytometry
Label
Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)
Antibody Source
Recombinant Monoclonal Mouse IgG1 Clone # 376209
Product Specifications
Immunogen
E. coli-derived recombinant human FoxP3
Gln105-Lys200
Accession # Q9BZS1
Gln105-Lys200
Accession # Q9BZS1
Specificity
Detects human FoxP3 in direct ELISAs. Detects human, mouse, and rat FoxP3 in flow cytometry.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Scientific Data Images for Human/Mouse/Rat FoxP3 PE-conjugated Antibody

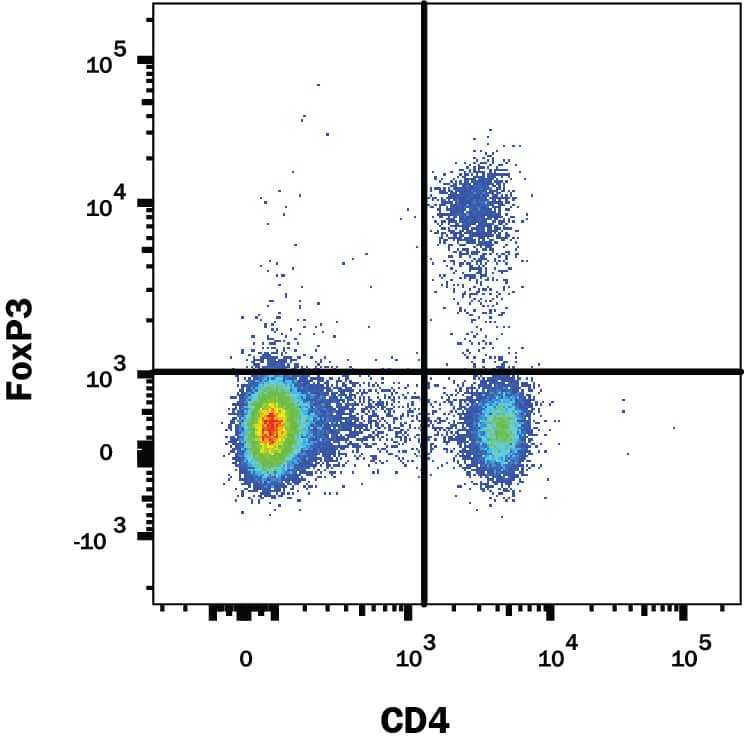

Detection of FoxP3 in Human PBMCs by Flow Cytometry.
Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Mouse Anti-Human CD4 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB3791F). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

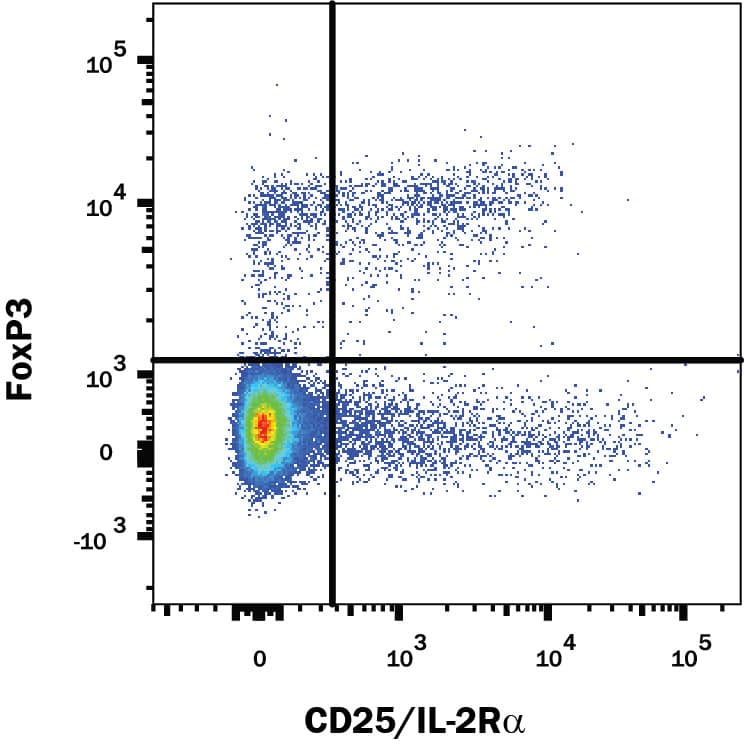

Detection of FoxP3 in Human PBMCs by Flow Cytometry.
Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Mouse Anti-Human CD25/IL-2 R alpha APC-conjugated Monoclonal Antibody (Catalog # FAB1020A). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.
Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry.
Mouse splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 PE-conjugated Monoclonal Antibody (Catalog # IC8970P) and Rat Anti-Mouse CD4 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB554G). Quadrant markers were set based on control antibody staining (Catalog # IC002P). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.Applications for Human/Mouse/Rat FoxP3 PE-conjugated Antibody
Application
Recommended Usage
Intracellular Staining by Flow Cytometry
10 µL/106 cells
Sample: Human peripheral blood mononuclear cells (PBMCs), mouse splenocytes, and rat splenocytes fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012).
Sample: Human peripheral blood mononuclear cells (PBMCs), mouse splenocytes, and rat splenocytes fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012).
Please Note: Optimal dilutions of this antibody should be experimentally determined.
Formulation, Preparation, and Storage
Purification
Protein A or G purified from cell culture supernatant
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: FoxP3
Both mouse and human FoxP3 undergo proteolytic processing, after Arg51 and Arg417 in human, and at equivalent sites in mouse. Cleavage at the N-terminus generate a 41 kDa isoform, whereas C-terminal cleavage generates an isoform indistinguishable from the full-length isoform (47 kDa) in SDS-PAGE.
FoxP3 can act as a transcriptional repressor (for IL-2) via an interaction with HDAC7. By contrast, it can also act as a transcriptional activator (for GITRL and
CTLA-4) through an interaction with RUNX7. Notably, for both human and mouse, full-length 47 kDa FoxP3 will induce high levels of CTLA-4 on expressing cells. However, when the C-terminally truncated isoform (at Arg417) is considered, IL-10 promoting activity is enhanced in mouse, while suppressive activity is lost in human. Over aa 105-200, human FoxP3 shares 83% and 84% aa sequence identity with rat and mouse FoxP3, respectively.
Long Name
Forkhead Box P3
Alternate Names
AIID, DIETER, IPEX, JM2, PIDX, SCURFIN, XPID
Gene Symbol
FOXP3
UniProt
Additional FoxP3 Products
Product Documents for Human/Mouse/Rat FoxP3 PE-conjugated Antibody
Product Specific Notices for Human/Mouse/Rat FoxP3 PE-conjugated Antibody
For research use only
