Human NKG2D/CD314 Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB1392

R&D Systems, part of Bio-Techne

Key Product Details

Species Reactivity

Human

Applications

Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2B Clone # 1046002

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human NKG2D/CD314
Phe78-Val216
Accession # P26718

Specificity

Detects human NKG2D/CD314 in direct ELISA.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human NKG2D/CD314 Antibody

Detection of NKG2D/CD314 in NK cells by Flow Cytometry.

NK cells (PBMC treated with 27 ng/ml Recombinant Human IL-2 Protein (202-IL), 10 ng/ml Recombinant Human IL-12 Protein (219-IL), 10 ng/ml Recombinant Human IL-18/IL-1F4 Protein (9124-IL) and 10 ng/ml Recombinant Human IL-21 Protein (8879-IL) for 15 days) were stained with Rabbit Anti-Human NCAM-1/CD56 PE-conjugated Monoclonal Antibody (Catalog # FAB24086P) and either (A) Mouse Anti-Human NKG2D/CD314 Monoclonal Antibody (Catalog # MAB1392) or (B) Rabbit IgG Alexa Fluor® 700-conjugated Antibody (Catalog # IC1051N). View our protocol for Staining Membrane-associated Proteins.

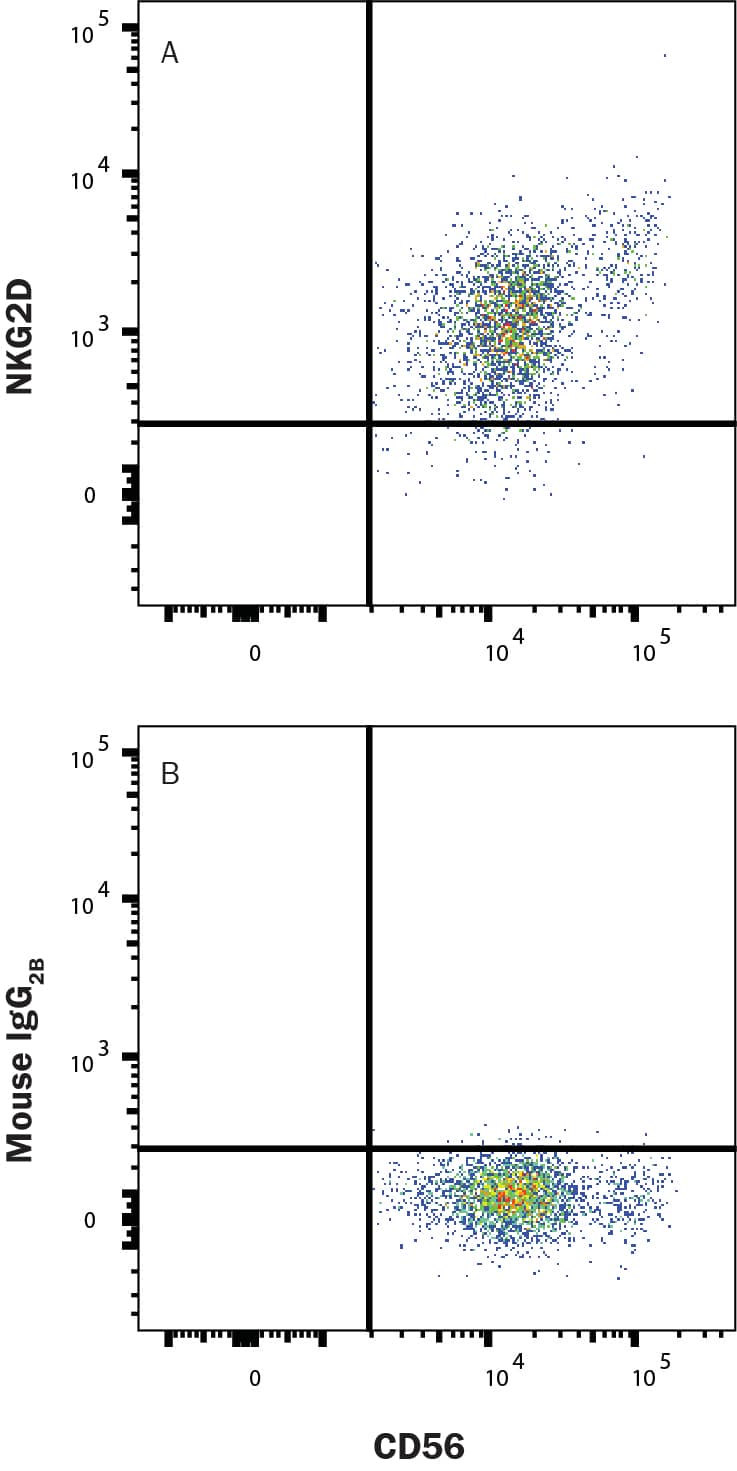

Detection of NKG2D/CD314 in CD3- CD56+ naïve PBMC cells by Flow Cytometry.

CD3- CD56+ naïve PBMC were stained with Rabbit Anti-Human NCAM-1/CD56 PE-conjugated Monoclonal Antibody (Catalog # FAB24086P) and either (A) Mouse Anti-Human NKG2D/CD314 Monoclonal Antibody (Catalog # MAB1392) or (B) Mouse IgG2B Isotype Control (Catalog # MAB004) followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). View our protocol for Staining Membrane-associated Proteins.

Applications for Human NKG2D/CD314 Antibody

Application
Recommended Usage

Flow Cytometry

0.25 µg/106 cells
Sample: NK cells (PBMC treated with 27 ng/ml Recombinant Human IL-2 Protein (Catalog # 202-IL), 10 ng/ml Recombinant Human IL-12 Protein (Catalog # 219-IL), 10 ng/ml Recombinant Human IL-18/IL-1F4 Protein (Catalog # 9124-IL) and 10 ng/ml Recombinant Human IL-21 Protein (Catalog # 8879-IL) for 15 days) and CD3- CD56+ naïve PBMC cells

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: NKG2D/CD314

NKG2D is a type II transmembrane glycoprotein having an extracellular lectin-like domain. This domain lacks the recognizable calcium-binding sites found in true C-type lectins and binds protein rather than carbohydrate ligands. Human NKG2D is expressed on CD8+ alpha beta T cells, gamma delta T cells, NK cells and NKT cells. In mouse systems NKG2D also occurs on macrophages. Human ligands for NKG2D include MICA, MICB, and ULBP1, 2, and 3. Expression of NKG2D ligands occurs in epithelial cells, tumor cells and under conditions of stress or infection. NKG2D exists as a disulfide-linked homodimer that delivers an activating signal upon ligand binding. Signaling requires association with an adapter protein. Alternative splicing of the NKG2D mRNA results in isoforms with different cytoplasmic domains that can associate either with DAP12 to deliver a true activating signal or with DAP10 resulting in a costimulatory signal. NKG2D has been implicated in anti-tumor surveillance and the immune response against viral infection.

References

  1. Li, P. et al. (2001) Nature Immunol. 2:443.
  2. Steinle, A. et al. (2001) Immunogenetics 53:279.
  3. Cosman, D. et al. (2001) Immunity 14:123.
  4. Cerwenka, A. and L. Lanier (2001) Immunol. Rev. 181:158.
  5. Wu, J. et al. (1999) Science 285:730.
  6. Diefenbach, A. et al. (2002) Nature Immunol. 3:1142.
  7. Gilfillan, S. et al. (2002) Nature Immunol. 3:1150.
  8. Groh, V. et al. (2001) Nature Immunol. 2:255.
  9. Cerwenka, A. et al. (2001) Proc. Natl. Acad. Sci. USA 98:11521.
  10. Diefenbach, A. et al. (2001) Nature 413:165.
  11. NKG2D and its Ligands (2002) www.rndsystems.com.

Long Name

Natural Killer G2D

Alternate Names

CD314, D12S2489E, KLRK1

Entrez Gene IDs

22914 (Human); 27007 (Mouse); 102120479 (Cynomolgus Monkey)

Gene Symbol

KLRK1

UniProt

Additional NKG2D/CD314 Products

Product Documents for Human NKG2D/CD314 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human NKG2D/CD314 Antibody

For research use only
