Human Osteoactivin/GPNMB Antibody

R&D Systems, part of Bio-Techne | Catalog # AF2550

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AF2550
AF2550-SP

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human, Mouse, Rat, Xenograft

Applications

Validated:

ELISA Capture (Matched Antibody Pair), Immunohistochemistry, Western Blot

Cited:

FACS, Flow Cytometry, Immunocytochemistry, Immunohistochemistry, Immunohistochemistry-Frozen, Immunohistochemistry-Paraffin, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human Osteoactivin isoform b
Lys23-Asn486
Accession # NP_002501

Specificity

Detects human Osteoactivin in ELISAs and Western blots. In sandwich immunoassays, less than 2% cross-reactivity with recombinant mouse Osteoactivin is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Human Osteoactivin/GPNMB Antibody

Detection of Human Osteoactivin/GPNMB antibody by Western Blot.

Detection of Human Osteoactivin/GPNMB by Western Blot.

Western blot shows lysates of U-118-MG human glioblastoma/astrocytoma cell line and T98G human glioblastoma cell line. PVDF membrane was probed with 0.5 µg/mL of Goat Anti-Human Osteoactivin/GPNMB Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2550) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). Specific bands were detected for Osteoactivin/GPNMB at approximately 95 and 120 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Osteoactivin/GPNMB antibody in Human Liver by Immunohistochemistry (IHC-P).

Osteoactivin/GPNMB in Human Liver.

Osteoactivin/GPNMB was detected in immersion fixed paraffin-embedded sections of human liver using Goat Anti-Human Osteoactivin/GPNMB Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2550) at 3 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). Specific staining was localized to Kupffer cells. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

Applications for Human Osteoactivin/GPNMB Antibody

Application
Recommended Usage

Immunohistochemistry

5-15 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human liver

Western Blot

0.5 µg/mL
Sample: U‑118‑MG human glioblastoma/astrocytoma cell line and T98G human glioblastoma cell line

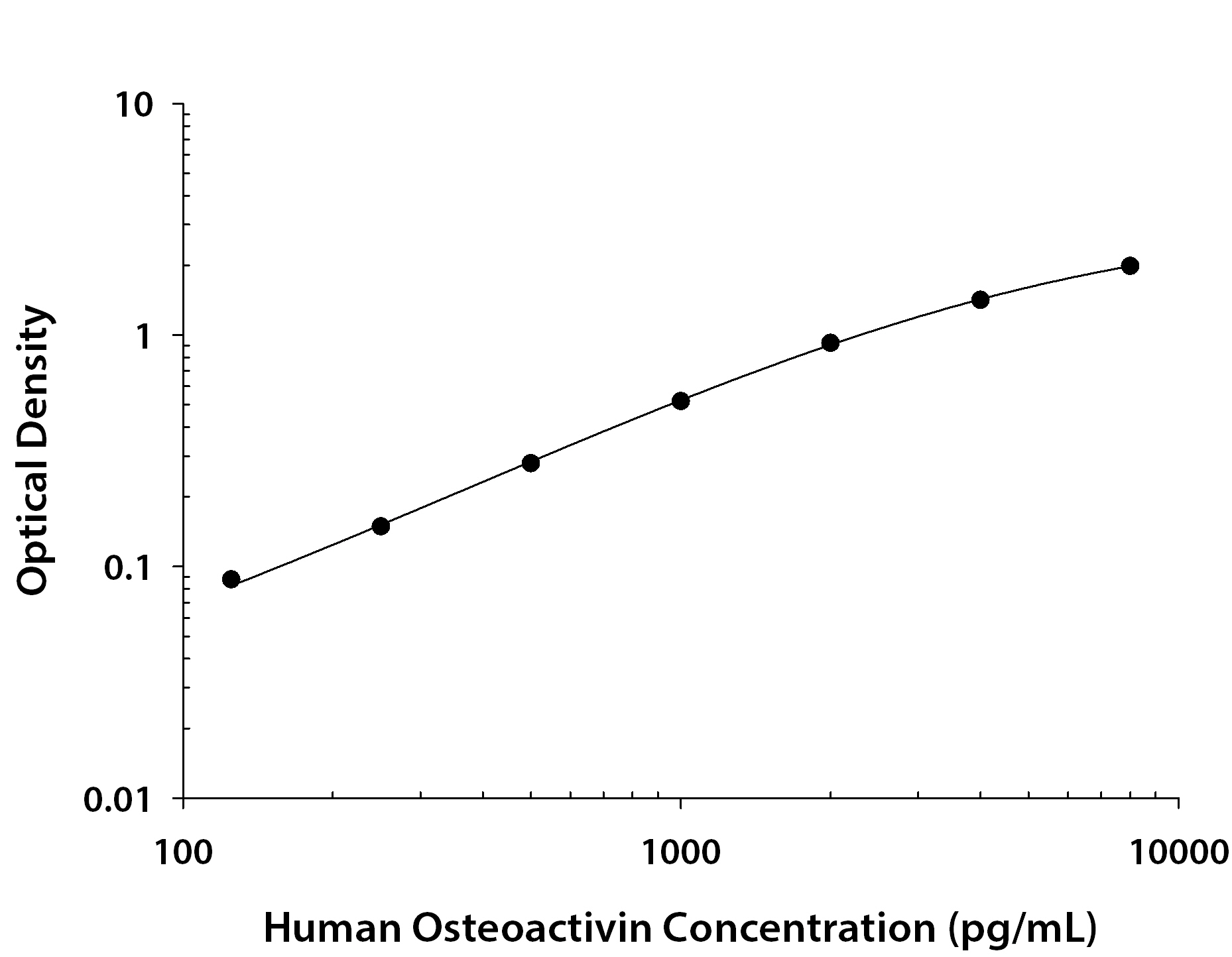

Human Osteoactivin/GPNMB Sandwich Immunoassay

ELISA Capture (Matched Antibody Pair)
Recommended Concentration: 0.2-0.8 µg/mL
Use in combination with these reagents:
  • Detection Reagent: Human Osteoactivin/GPNMB Biotinylated Antibody (Catalog # BAF2550)
  • Standard: Recombinant Human Osteoactivin/GPNMB Fc Chimera Protein, CF (Catalog # 2550-AC)
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Reviewed Applications

Read 3 reviews rated 5 using AF2550 in the following applications:

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Osteoactivin/GPNMB

Osteoactivin (also GPNMB and DC-HIL) is a variably glycosylated 75 - 125 kDa member of the NMB/pMEL-17 family of molecules. It is found in multiple subcellular sites, but is most often associated with the endosomal/lysosomal compartment (1-3). Human Osteoactivin is a 560 amino acid (aa) type I transmembrane protein. Its precursor contains a 21 aa signal sequence, a 465 aa luminal/extracellular domain, a 21 aa transmembrane segment and a 53 aa cytoplasmic tail (4, 5). The luminal region contains an N-terminal heparin-binding motif (aa 23-26), multiple glycosylation sites, an RGD motif (aa 64-66) and an 88 aa PKD domain (aa 240-327). The intracellular tail has an ITAM (Y-x-x-I) and lysosomal targeting (L-L) motif (4, 5). The extracellular/luminal region shares 74% and 77% aa identity with the equivalent regions in mouse and canine, respectively. Multiple isoforms would appear to exist. There is one alternate splice form known that shows a 12 aa insert between aa 339-340 (6). An addtional 206 aa isoform shows a mutation at position # 181 that results in a 26 aa substitution for the C-terminal 380 amino acids (7, 8). This has the potential to be soluble and may represent a counterpart to a secreted isoform of rat Osteoactivin (9). Cells known to express Osteoactivin include macrophages/Kupffer cells, fibroblasts, osteoblasts, myeloid dendritic cells, retinal pigment epithelial cells and melanocytes, plus fetal chondrocytes and stratum basale keratinocytes (3-5, 10-12). In mice, Osteoactivin is reported to bind to heparan sulfate-proteoglycan, possibly on the surface of endothelial cells and may also interact with integrins (13). It also appears to act as an inflammatory suppressor gene, as its expression downregulates the macrophage inflammatory response by inhibiting IL-6 and IL-12 p40 production (3).

References

  1. Bachner, D. et al. (2002) Gene Exp. Patterns 1:159.
  2. Safadi, F.F. et al. (2002) J. Cell. Biochem. 84:12.
  3. Ripoll, V.M. et al. (2007) J. Immunol. 178:6557.
  4. Owen, T.A. et al. (2003) Crit. Rev. Eukaryot. Gene Expr. 13:205.
  5. Weterman, M.A.J. et al. (1995) Int. J. Cancer 60:73.
  6. Kuan, C-T. et al. (2006) Clin. Cancer Res. 12:1970.
  7. Lennerz, V. et al. (2005) Proc. Natl. Acad. Sci. USA 102:16013.
  8. Genbank Accession # AAH11595.
  9. Abdelmagid, S.M. et al. (2007) J. Cell. Physiol. 210:26.
  10. Haralanova-Ilieva, B. et al. (2005) J. Hepatol. 42:565.
  11. Ahn, J.H. et al. (2002) Blood 100:1742.
  12. Anderson, M.G. et al. (2002) Nat. Genet. 30:81.
  13. Shikano, S. et al. (2001) J. Biol. Chem. 276:8125.

Long Name

Glycoprotein Non-Metastatic Melanoma Protein B

Alternate Names

DC-HIL, GPNMB, HGFIN

Entrez Gene IDs

10457 (Human); 93695 (Mouse); 113955 (Rat); 102133517 (Cynomolgus Monkey)

Gene Symbol

GPNMB

UniProt
