Key Product Details

Species Reactivity

Validated:

Human, Primate

Cited:

Human

Applications

Validated:

CyTOF-ready, ELISA Capture (Matched Antibody Pair), Flow Cytometry, Western Blot

Cited:

Control

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2B Clone # 301040

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant human NCAM‑1/CD56

Specificity

Detects human NCAM‑1/CD56 in ELISAs and Western blots. In direct ELISAs and Western blots, no cross-reactivity with recombinant human (rh) ALCAM, rhBCAM, rhEPCAM, rhMCAM, rhNCAM-1-L1, recombinant mouse (rm) MAdCAM-1, rmNCAM-1-L1, or rmOCAM is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human/Primate NCAM-1/CD56 Antibody

Detection of Human NCAM-1/CD56 antibody by Western Blot.

Detection of Human NCAM‑1/CD56 by Western Blot.

Western blot shows lysates of human brain (cerebellum) tissue and human brain (motor cortex) tissue. PVDF membrane was probed with 1 µg/mL of Mouse Anti-Human/Primate NCAM-1/CD56 Monoclonal Antibody (Catalog # MAB2408) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for NCAM-1/CD56 at approximately 100-150 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

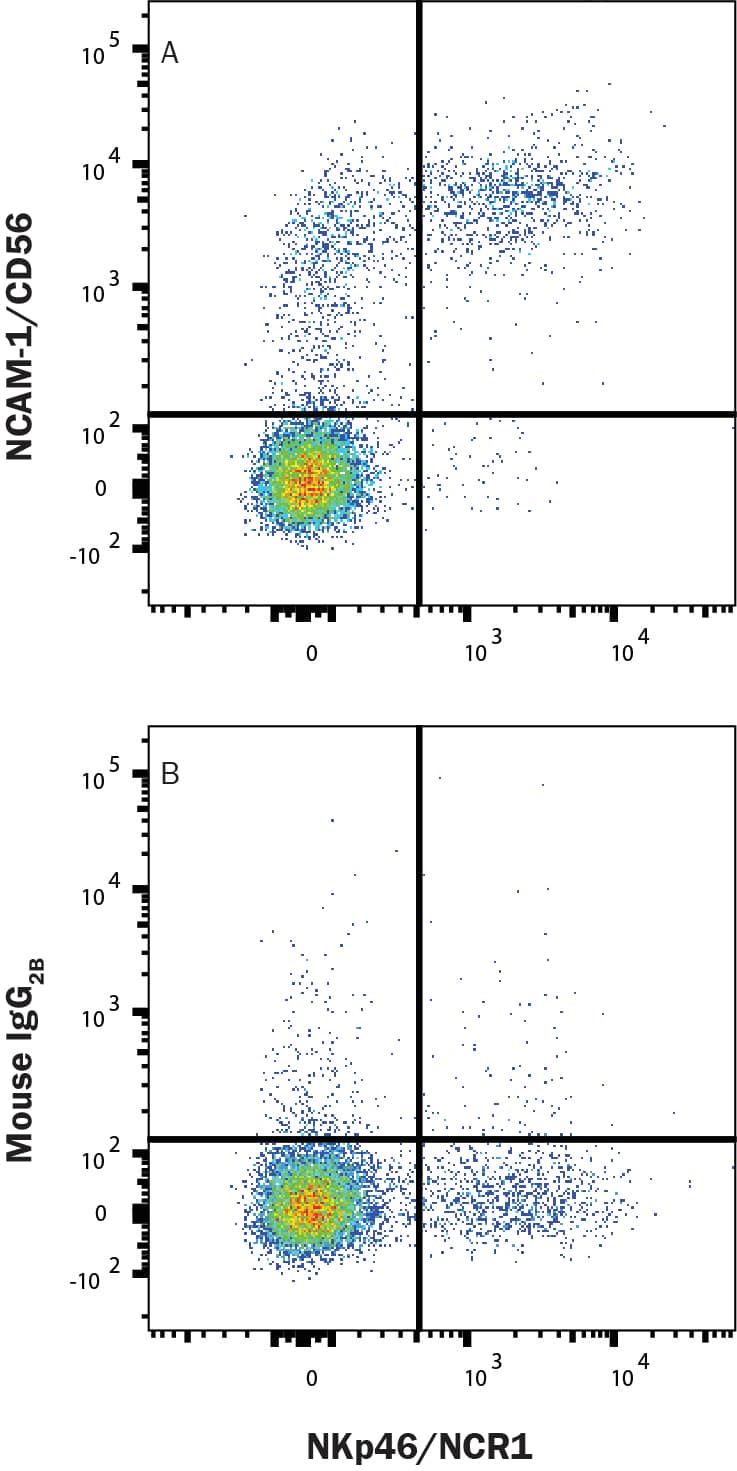

Detection of NCAM-1/CD56 in Human PBMC by Flow Cytometry.

Human PBMCs were stained with either (A) Mouse Anti-Human NCAM-1/CD56 Monoclonal Antibody (Catalog # MAB2408) or (B) Mouse IgG2B Isotype Control (MAB0041) followed by Anti-Mouse IgG APC-conjugated secondary antibody (F0101B) and Mouse Anti-Human NKp46 PE-conjugated Monoclonal Antibody (FAB1850P). Staining was performed using our Staining Membrane-associated Proteins protocol.

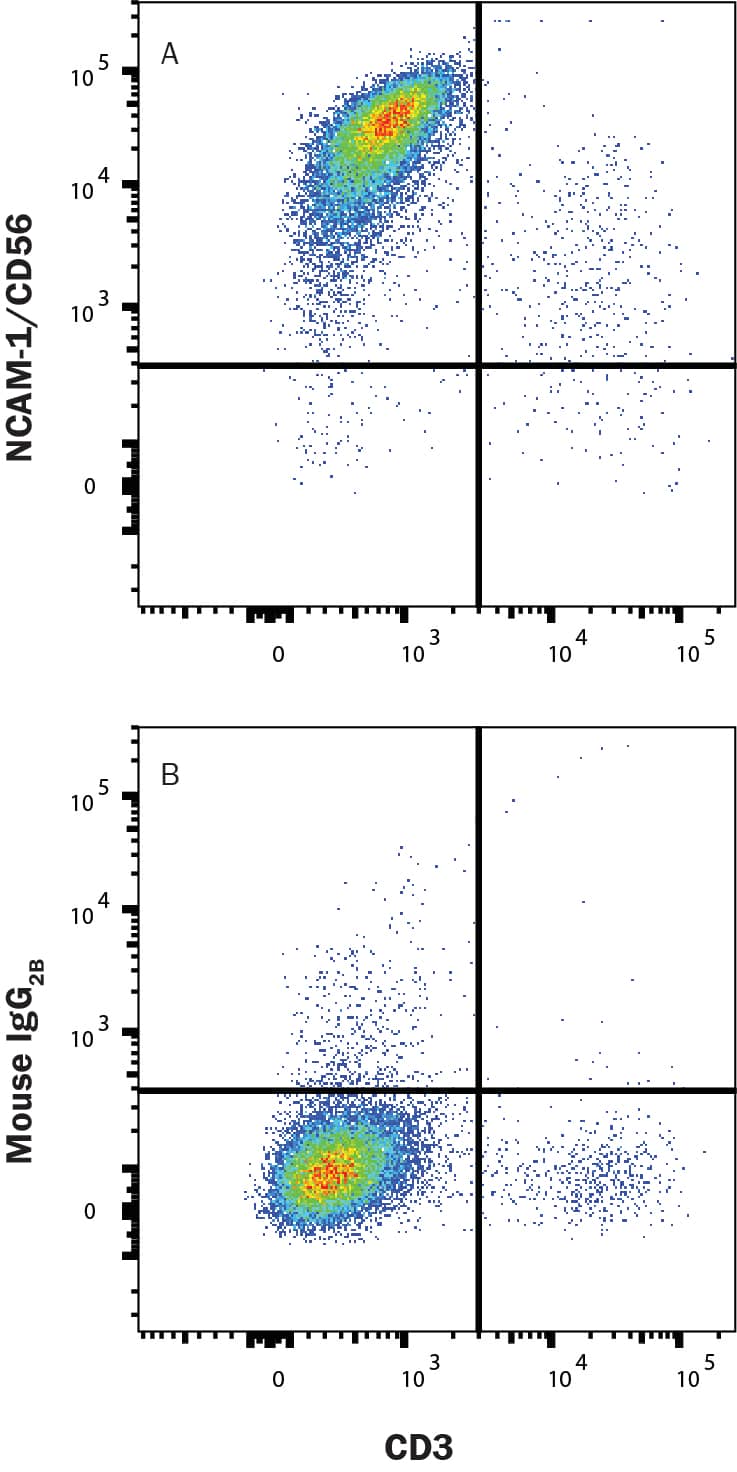

Detection of NCAM-1/CD56 in Human NK cells by Flow Cytometry.

Human NK cells were expanded from PBMCs using Cloudz Human NK Cell Expansion Kit (CLD004) and were stained with either (A) Mouse Anti-Human NCAM-1/CD56 Monoclonal Antibody (Catalog # MAB24081) or (B) Mouse IgG2B Isotype Control (MAB0041) followed by Anti-Mouse IgG APC-conjugated secondary antibody (F0101B) and Mouse Anti-HumanCD3 PE-conjugated Monoclonal Antibody (FAB100P). Staining was performed using our Staining Membrane-associated Proteins protocol.

Applications for Human/Primate NCAM-1/CD56 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: Human peripheral blood mononuclear cells and human NK cells expanded from PBMCs using Cloudz Human NK Cell Expansion Kit (Catalog # CLD004)

Western Blot

1 µg/mL
Sample: Human brain (cerebellum) tissue and human brain (motor cortex) tissue

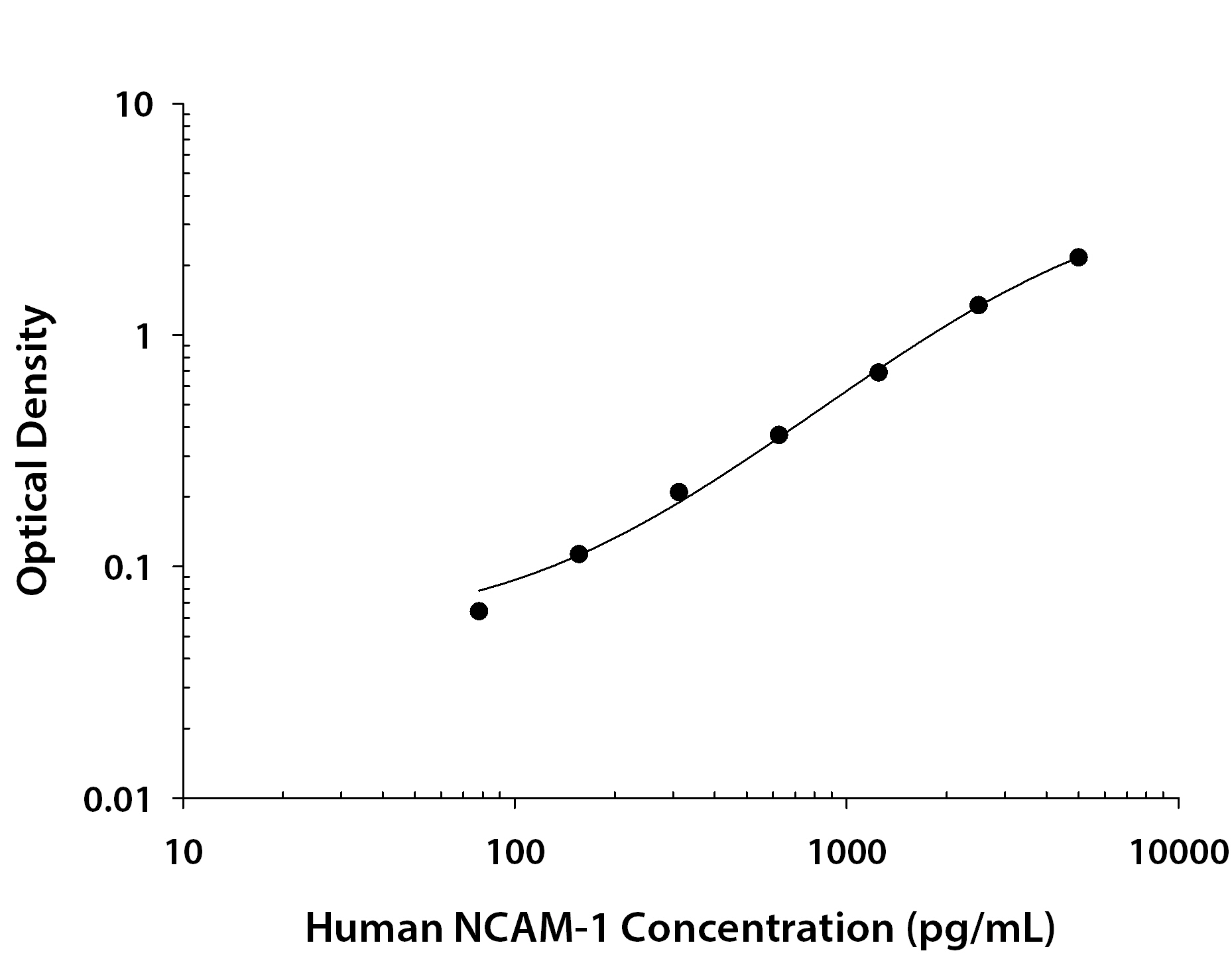

Human/Primate NCAM-1/CD56 Sandwich Immunoassay

ELISA Capture (Matched Antibody Pair)
Recommended Concentration: 2-8 µg/mL
Use in combination with these reagents:
  • Detection Reagent: Human/Primate NCAM-1/CD56 Biotinylated Antibody (Catalog # BAF2408)
  • Standard: Recombinant Human NCAM-1/CD56 Protein, CF (Catalog # 2408-NC)
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: NCAM-1/CD56

Neural cell adhesion molecule 1 (NCAM-1) is a multifunctional member of the Ig superfamily. It belongs to a family of membrane-bound glycoproteins that are involved in Ca++ independent cell matrix and homophilic or heterophilic cell-cell interactions. NCAM-1 specifically binds to heparan sulfate proteoglycans (1), the extracellular matrix protein agrin (2), and several chondroitin sulfate proteoglycans that include neurocan and phosphocan (3). There are three main forms of human NCAM-1 that arise by alternate splicing. These are designated NCAM-120/NCAM-1 (761 amino acids [aa]), NCAM-140 (848 aa), and NCAM-180 (1120 aa). NCAM-120 is GPI-linked, while NCAM-140 and NCAM-180 are type I transmembrane glycoproteins (4‑6). Additional alternate splicing adds considerable diversity to all three forms, and extracellular proteolytic processing is possible for NCAM-180 (7‑8). NCAM-1 is synthesized as a 761 aa preproprecursor that contains a 19 aa signal sequence, a 722 aa GPI-linked mature region, and a 20 aa C-terminal prosegment (4). The molecule contains five C-2 type Ig-like domains and two fibronectin type-III domains. Human to mouse, NCAM-1 is 93% aa identical. NCAM-1 appears to be highly sialylated. The polysialyation of NCAM-1 reduces its adhesive property and increases its neurite outgrowth promoting features (9). NCAM-1 in the adult brain shows a decline of sialylation relative to earlier developmental periods. In regions that retain a high degree of neuronal plasticity, however, the adult brain continues to express polysialylation-NCAM-1, suggesting sialylation of NCAM-1 is involved in regenerative processes and synaptic plasticity (10‑13).

References

  1. Burg, M.A. et al. (1995) J. Neurosci. Res. 41:49.
  2. Storms, S.D. and U. Rutishauser (1998) J Biol. Chem. 273:27124.
  3. Margolis, R.K. et al. (1996) Perspect. Dev. Neurobiol. 3:273.
  4. Dickson, G. et al. (1987) Cell 50:1119.
  5. Lanier, L.L. et al. (1991) J. Immunol. 146:4421.
  6. Hemperly, J.J. et al. (1990) J. Mol. Neurosci. 2:71.
  7. Rutishauser, U.and C. Goridis (1986) Trends Genet. 2:72.
  8. Vawter, M.P. et al. (2001) Exp. Neurol. 172:29.
  9. Rutihauser, U. (1990) Adv. Exp. Med. Biol. 265:179.
  10. Becker, C.G. et al. (1996) J. Neurosci. Res. 45:143.
  11. Doherty, P. et al. (1995) J. Neurobiol. 26:437.
  12. Eckardt, M. et al. (2000) J. Neurosci. 20:5234.
  13. Muller, D. et al. (1996) Neuron 17:413.

Long Name

Neural Cell Adhesion Molecule

Alternate Names

CD56, NCAM1

Entrez Gene IDs

4684 (Human); 17967 (Mouse); 24586 (Rat)

Gene Symbol

NCAM1
