Mitofilin Antibody (PSH01-18)
Novus Biologicals, part of Bio-Techne | Catalog # NBP3-32596
Recombinant Monoclonal Antibody
Key Product Details
Species Reactivity
Human, Mouse, Rat
Applications
Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot
Label
Unconjugated
Antibody Source
Recombinant Monoclonal Rabbit IgG Clone # PSH01-18
Concentration
1 mg/ml
Product Specifications
Immunogen
Recombinant protein within human Mitofilin aa 151-400 / 758. (Uniprot: Q16891)
Localization
Mitochondrion inner membrane, Mitochondrion.
Clonality
Monoclonal
Host
Rabbit
Isotype
IgG
Theoretical MW
84 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Scientific Data Images for Mitofilin Antibody (PSH01-18)
Western Blot: Mitofilin Antibody (PSH01-18) [NBP3-32596]

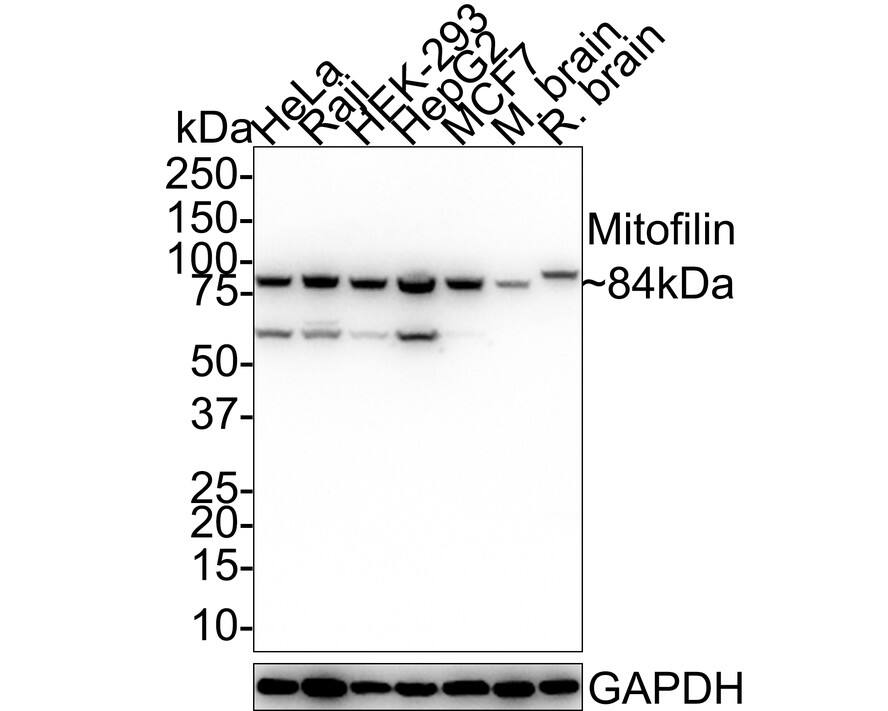

Western Blot: Mitofilin Antibody (PSH01-18) [NBP3-32596] - Western blot analysis of Mitofilin on different lysates with Rabbit anti-Mitofilin antibody (NBP3-32596) at 1/5,000 dilution.Lane 1: HeLa cell lysate
Lane 2: Raji cell lysate
Lane 3: HEK-293 cell lysate
Lane 4: HepG2 cell lysate
Lane 5: MCF7 cell lysate
Lane 6: Mouse brain tissue lysate
Lane 7: Rat brain tissue lysate
Lysates/proteins at 30 ug/Lane.
Predicted band size: 84 kDa
Observed band size: 84 kDa
Exposure time: 24 seconds;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody (NBP3-32596) at 1/5,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1:100,000 dilution was used for 1 hour at room temperature.
Immunohistochemistry: Mitofilin Antibody (PSH01-18) [NBP3-32596]
Immunohistochemistry: Mitofilin Antibody (PSH01-18) [NBP3-32596] - Immunohistochemical analysis of paraffin-embedded human pancreas tissue with Rabbit anti-Mitofilin antibody (NBP3-32596) at 1/1,000 dilution.The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-32596) at 1/1,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Immunohistochemistry: Mitofilin Antibody (PSH01-18) [NBP3-32596]
Immunohistochemistry: Mitofilin Antibody (PSH01-18) [NBP3-32596] - Immunofluorescence analysis of paraffin-embedded human thyroid carcinoma tissue labeling Mitofilin with Rabbit anti-Mitofilin antibody (NBP3-32596) at 1/200 dilution.The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes. The tissues were blocked in 10% negative goat serum for 1 hour at room temperature, washed with PBS, and then probed with the primary antibody (NBP3-32596, green) at 1/200 dilution overnight at 4 ℃, washed with PBS. Goat Anti-Rabbit IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. Nuclei were counterstained with DAPI (blue).
Applications for Mitofilin Antibody (PSH01-18)
Application
Recommended Usage
Western Blot
1:5000
Formulation, Preparation, and Storage
Purification
Protein A purified
Formulation
PBS (pH7.4), 0.1% BSA and 40% Glycerol
Preservative
0.05% Sodium Azide
Concentration
1 mg/ml
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
Background: Mitofilin
Alternate Names
DKFZp779P1653, inner membrane protein, mitochondrial, MGC111146, Mic 60, Mic60, MICOS Complex Subunit MIC60, mitochondrial (mitofilin), Mitofilin, motor protein, p87/89, proliferation-inducing gene 4
Gene Symbol
IMMT
Additional Mitofilin Products
Product Documents for Mitofilin Antibody (PSH01-18)
Product Specific Notices for Mitofilin Antibody (PSH01-18)
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
