Nbs1 Antibody

Immunohistochemistry-Paraffin: Nbs1 Antibody [NB100-143]

Immunohistochemistry-Paraffin: Nbs1 Antibody [NB100-143] - FFPE human testis using Nbs1 antibody [NB100-143] at 1:200 on a Bond Rx autostainer (Leica Biosystems). The assay involved 20 minutes of heat induced antigen retrieval (HIER) using 10 mM sodium citrate buffer (pH 6.0) and endogenous peroxidase quenching with peroxide block. The sections were incubated with primary antibody for 30 minutes and Bond Polymer Refine Detection (Leica Biosystems) with DAB was used for signal development followed by counterstaining with hematoxylin. Whole slide scanning and capturing of representative images was performed using Aperio AT2 (Leica Biosystems). Staining was performed by Histowiz.

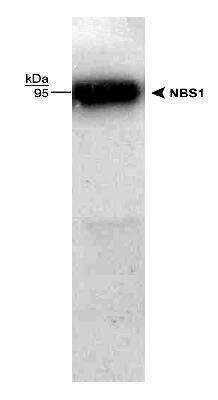

Western Blot: Nbs1 Antibody [NB100-143]

Western Blot: Nbs1 Antibody [NB100-143] - Analysis of HeLa whole cell lysate [NB800-PC1] using rabbit polyclonal NBS1 antibody [NB100-143]. Observed Molecular Weight at ~95 kDa.

Western Blot: Nbs1 Antibody [NB100-143]

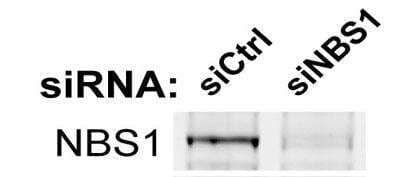

Western Blot: Nbs1 Antibody [NB100-143] - Detection of NBS1 in Human Bone Osteosarcoma Epithelial Cells (U2OS whole cell lysate) using Nbs1 Antibody [NB100-143] at a dilution of 1:1000. Specificity was confirmed using a siRNA anti-NBS1 (targeting sequence: GGAAGAAACGUGAACUCAA). Image provided by Sebastien Britton of the Institute of Pharmacology and Structural Biology.

Western Blot: Nbs1 Antibody [NB100-143]

Western Blot: Nbs1 Antibody [NB100-143] - Western Blot with Nbs1 Antibody [NB100-143]. TIG-1 human primary fibroblasts, whole cell lysate (30 ug). Image from verified customer review.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143]

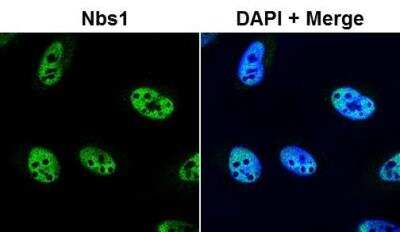

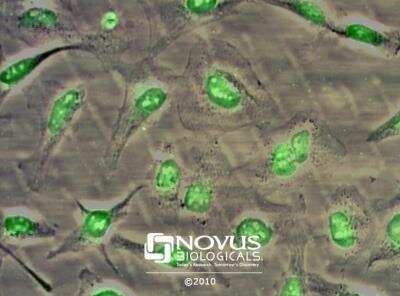

Immunocytochemistry/Immunofluorescence: Nbs1 Antibody [NB100-143] - Staining of HeLa cells using Nbs1 Antibody [NB100-143].

Knockdown Validated: Nbs1 Antibody [NB100-143]

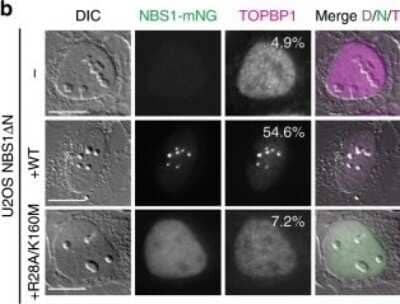

Knockdown Validated: Nbs1 Antibody [NB100-143] - TOPBP1 recruitment in response to rDNA breaks. TOPBP1 localization 2 h after I-Ppo1 transfection in NBS1-delta-N cells and NBS1-delta-N cells complemented with wild-type and mutant NBS1-mNG (percentage of cells with > 2 TOPBP1 caps are indicated; one of two experiments is shown). Image collected and cropped by CiteAb from the following publication (//pubmed.ncbi.nlm.nih.gov/31913317/) licensed under a CC-BY license.

Immunocytochemistry/Immunofluorescence: Nbs1 Antibody [NB100-143] -

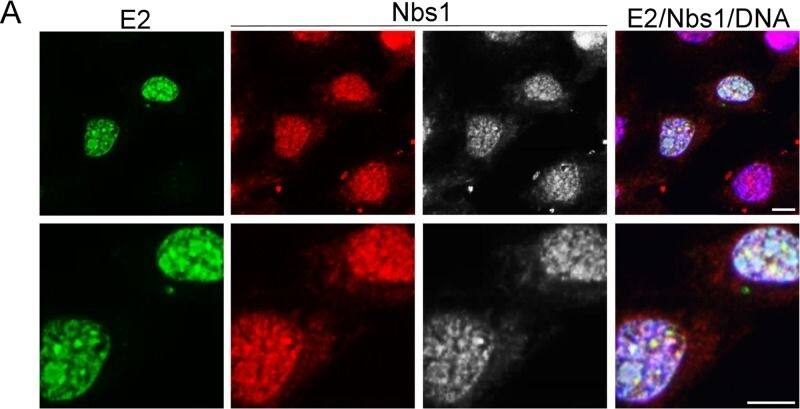

HPV16 E2 partially colocalizes with the MRN complex proteins Mre11 and Nbs1. C33a cells were transfected with an HPV16 E2 expression plasmid, fixed in ice-cold methanol, and stained with an E2-specific antibody (green). DNA was stained with Hoechst 33342 (blue). (A) Endogenous Nbs1 was detected with an Nbs1-specific antibody (red/gray). (B) Endogenous Mre11 was detected with an Mre11-specific rabbit antibody (red/gray). Bar, 5 μm. Digital zoom is shown at the bottom.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

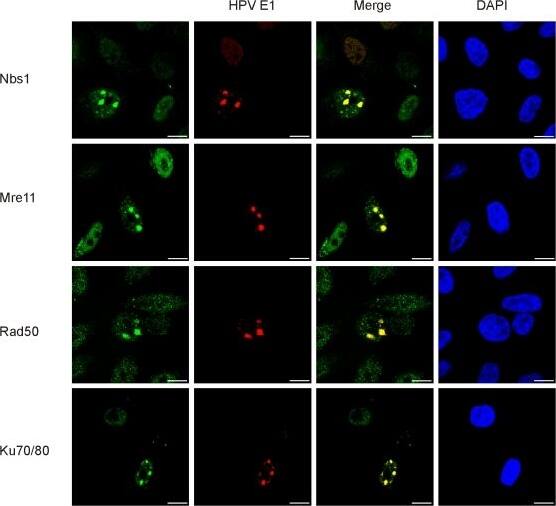

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - Replication centers of the integrated HPV recruit Mre11-Nbs1-Rad50 complex & Ku70/80 heterodimer.HeLa cells were transfected & analyzed as described previously. Co-immunostaining of HPV18 E1 (Alexa Fluor 568, second column) & the following proteins are presented: Mre11, Nbs1, Rad50, & Ku70/80 proteins (Alexa Fluor 488, first column). The localizations of the E1 & the respective DNA repair proteins are also shown in the third column as a merged image & DAPI stained nuclei are presented in the fourth column. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/19390600), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

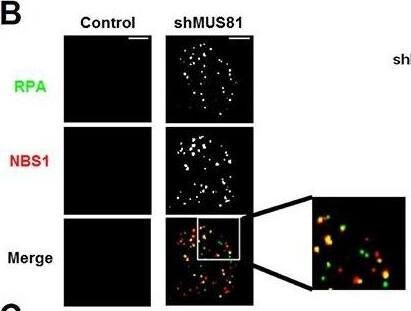

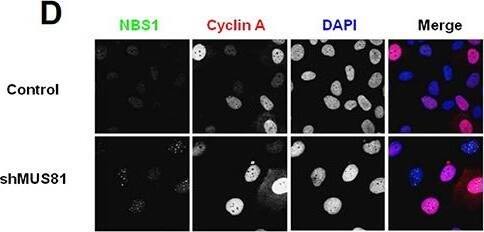

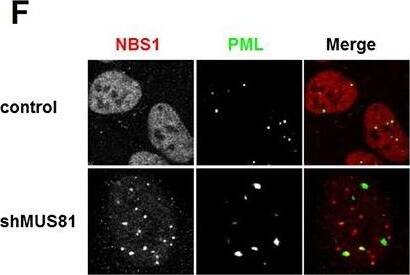

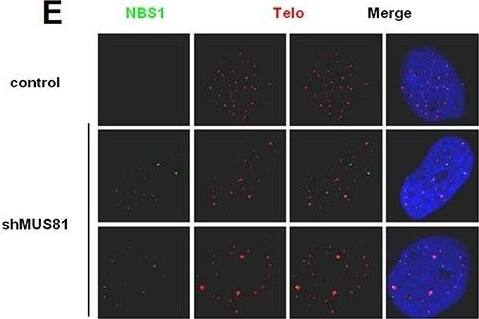

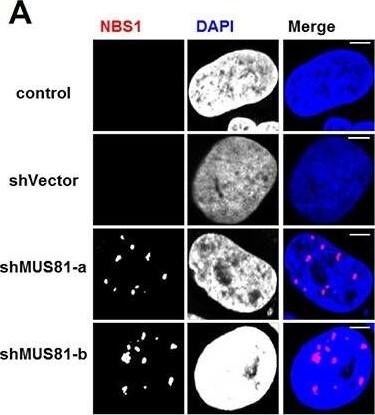

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - Loss of MUS81 activates DNA damage responseA. MUS81 depleted U2OS cells accumulate NBS1 foci defining sites of DNA damage. B. Partial co-localization of NBS1 foci & RPA foci in MUS81-depleted cells. C. Co-localization of RPA foci to ssDNA regions. Cells were labelled with BrdU for 3 days concomitant with MUS81 depletion. BrdU was detected at ssDNA regions by immunofluorescence. D. NBS1 foci arise in cells that are both positive & negative for Cyclin A expression. Scale bars, 5 μm. E. NBS1 foci form largely at non-telomeric loci. F. Partial co-localization of NBS1 foci with PML nuclear bodies. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/26415217), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - Loss of MUS81 activates DNA damage responseA. MUS81 depleted U2OS cells accumulate NBS1 foci defining sites of DNA damage. B. Partial co-localization of NBS1 foci & RPA foci in MUS81-depleted cells. C. Co-localization of RPA foci to ssDNA regions. Cells were labelled with BrdU for 3 days concomitant with MUS81 depletion. BrdU was detected at ssDNA regions by immunofluorescence. D. NBS1 foci arise in cells that are both positive & negative for Cyclin A expression. Scale bars, 5 μm. E. NBS1 foci form largely at non-telomeric loci. F. Partial co-localization of NBS1 foci with PML nuclear bodies. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/26415217), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - Loss of MUS81 activates DNA damage responseA. MUS81 depleted U2OS cells accumulate NBS1 foci defining sites of DNA damage. B. Partial co-localization of NBS1 foci & RPA foci in MUS81-depleted cells. C. Co-localization of RPA foci to ssDNA regions. Cells were labelled with BrdU for 3 days concomitant with MUS81 depletion. BrdU was detected at ssDNA regions by immunofluorescence. D. NBS1 foci arise in cells that are both positive & negative for Cyclin A expression. Scale bars, 5 μm. E. NBS1 foci form largely at non-telomeric loci. F. Partial co-localization of NBS1 foci with PML nuclear bodies. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/26415217), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - Loss of MUS81 activates DNA damage responseA. MUS81 depleted U2OS cells accumulate NBS1 foci defining sites of DNA damage. B. Partial co-localization of NBS1 foci & RPA foci in MUS81-depleted cells. C. Co-localization of RPA foci to ssDNA regions. Cells were labelled with BrdU for 3 days concomitant with MUS81 depletion. BrdU was detected at ssDNA regions by immunofluorescence. D. NBS1 foci arise in cells that are both positive & negative for Cyclin A expression. Scale bars, 5 μm. E. NBS1 foci form largely at non-telomeric loci. F. Partial co-localization of NBS1 foci with PML nuclear bodies. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/26415217), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - HPV16 E2 partially colocalizes with the MRN complex proteins Mre11 & Nbs1. C33a cells were transfected with an HPV16 E2 expression plasmid, fixed in ice-cold methanol, & stained with an E2-specific antibody (green). DNA was stained with Hoechst 33342 (blue). (A) Endogenous Nbs1 was detected with an Nbs1-specific antibody (red/gray). (B) Endogenous Mre11 was detected with an Mre11-specific rabbit antibody (red/gray). Bar, 5 μm. Digital zoom is shown at the bottom. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/28031358), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] -

Immunocytochemistry/ Immunofluorescence: Nbs1 Antibody [NB100-143] - Loss of MUS81 activates DNA damage responseA. MUS81 depleted U2OS cells accumulate NBS1 foci defining sites of DNA damage. B. Partial co-localization of NBS1 foci & RPA foci in MUS81-depleted cells. C. Co-localization of RPA foci to ssDNA regions. Cells were labelled with BrdU for 3 days concomitant with MUS81 depletion. BrdU was detected at ssDNA regions by immunofluorescence. D. NBS1 foci arise in cells that are both positive & negative for Cyclin A expression. Scale bars, 5 μm. E. NBS1 foci form largely at non-telomeric loci. F. Partial co-localization of NBS1 foci with PML nuclear bodies. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/26415217), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: Nbs1 Antibody [NB100-143] -

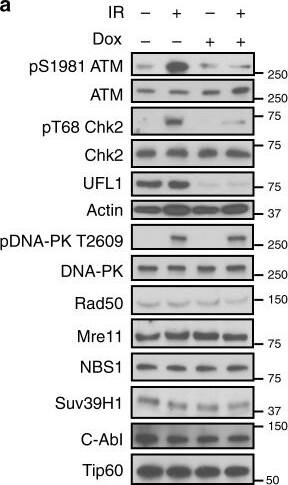

Western Blot: Nbs1 Antibody [NB100-143] - UFL1 regulates the ATM signaling. a U2OS cells expressing UFL1 tet-on shRNA1 were irradiated with 2 Gy IR. Thirty minutes later, cells were lysed & blotted with indicated antibodies. b Representative picture of gammaH2AX, 53BP1, & BRCA1 foci in control (Dox-) & UFL1 knockdown (Dox+) U2OS cells 1 h after 0.5 Gy treatment. Scale bars, 10 µm. c–e Quantification of intensities of gammaH2AX, 53BP1, & BRCA1 foci in control (Dox-) & UFL1 knockdown (Dox+) U2OS cells. Data presented as mean ± SD of n = 50 cells. **p < 0.01 by Student’s t-test. Source data are provided as a Source Data file Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/30886146), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: Nbs1 Antibody [NB100-143] -

Western Blot: Nbs1 Antibody [NB100-143] - Deletion of Exo1 leads to embryonic lethality in hypomorphic Nbs1 mice. (A) Graph of expected & observed live born pups from double heterozygous breedings based on normal Mendelian inheritance (n = 93). For brevity, the primary genotypes are abbreviated as follows: wild type = W, Nbs1 deltaB/ deltaB = N, Exo1−/− = E, Nbs1 deltaB/ deltaBExo−/− = NE. Statistical analysis was performed using an unpaired t-test. ***P < 0.0001 & n.s. = not significant. (B) Graph of expected & observed E14.5 embryos from double heterozygous breedings based on normal Mendelian inheritance (n = 89). (C) Representative images of E14.5 embryos of the indicated genotype. (D) Western blotting of NBS1 & EXO1 from embryonic fibroblast cultures derived from E14.5 embryos. Image collected & cropped by CiteAb from the following publication (https://academic.oup.com/nar/article-lookup/doi/10.1093/nar/gkv691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: Nbs1 Antibody [NB100-143] -

Western Blot: Nbs1 Antibody [NB100-143] - EXO1 influences DNA repair & DNA replication in Nbs1 mutants. (A) Schematic illustration of the SA-GFP based SSA assay. (B) Western blotting of cells transfected with or without a vector expressing human NBS1. The genotypes are abbreviated throughout the figure as follows: wild type = W, Nbs1 deltaB/ deltaB = N, Exo1−/− = E, and Nbs1 deltaB/ deltaB Exo−/− = NE. (C) Quantification of SSA mediated repair plotted as the percentage of GFP positive cells. Values for NE are corrected for the reduced percentage of cells in S/G2 determined by BrdU & PI staining (mean 58% compared to a mean of 73% in the other genotypes). The fold rescue with NBS1 expression is the same in N & NE (2.2 fold). (D) Measurement of replication tract lengths following CldU or IdU pulse labeling. (E) Calculation of replication fork velocity in the indicated genotypes (as described in ‘Materials & Methods’ section). Examples of representative forks from W & NE cultures are shown for comparison. (F) Assessment of replication fork restart following 1 mM HU treatment using the indicated scheme. Relative tract ratio is calculated by dividing the length of the IdU tract by that of the CldU tract ( = 2 under unperturbed conditions). Thus, higher values indicate faster restart following HU removal. Image collected & cropped by CiteAb from the following publication (https://academic.oup.com/nar/article-lookup/doi/10.1093/nar/gkv691), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: Nbs1 Antibody [NB100-143] -

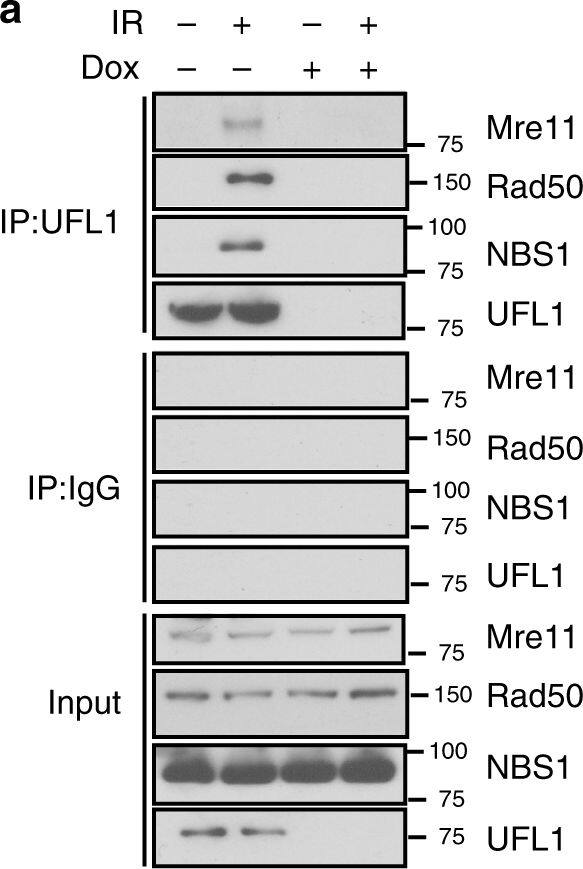

Western Blot: Nbs1 Antibody [NB100-143] - UFL1 protein accumulates at DSBs through the MRN complex. a U2OS cells stably expressing UFL1 Tet-on shRNA were treated with doxycycline (Dox) for 3–5 days, & then treated with or without 2 Gy IR. After 30 min, cells were harvested & lysed with NETN buffer. Cell lysates were incubated with UFL1 antibody + Benzonase. The immunoprecipitates were blotted with indicated antibodies. b Immunofluorescence of UFL1 & gammaH2AX in U2OS cells irradiated with IR (0.5 Gy). c Triamcinolone acetonide (TA) treatment induces the translocation of RFP-I-SceI-GR fusion protein from the cytoplasm to the nucleus & generates one double strand break at the cutting site. The protein localization was detected by indicated antibodies. d UFL1 foci formation at different time points following 0.5 Gy IR treatment. e, f UFL1 foci formation was analyzed in Mre11 knockdown cells or NBS1 deficient cells (NBST). g NBST cells were transfected with Vector (V) or Flag-NBS1 & treated with or without 2 Gy IR. After 30 min, the cells were lysed & immunoprecipitation with UFL1 antibody with Benzonase treatment was performed. The immunoprecipitates were blotted with indicated antibodies. h The schematic diagram of NBS1 protein domain. i U2OS cells were treated with or without 2 Gy IR, & the cell lysates were pulled down with GST, GST-NBS1 FHA+BRCT (1+2) proteins. After washes, the beads were boiled & analyzed with indicated antibodies. Scale bars, 10 µm. Source data are provided as a Source Data file Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/30886146), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
