NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

Novus Biologicals, part of Bio-Techne | Catalog # NBP3-20156

Recombinant Monoclonal Antibody
Novus Biologicals, part of Bio-Techne

Key Product Details

Species Reactivity

Human

Applications

Block/Neutralize, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Western Blot

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Kappa Clone # 6E5A7

Format

Azide and BSA Free

Concentration

1 mg/ml

View all NKG2D/CD314 Antibodies »

Product Specifications

Immunogen

The original antibody was generated by immunizing BALB/c mice with soluble NKG2-D fragments containing amino acids from 64-462 and 123-462.

Epitope

This antibody recognizes and binds the extracellular epitope of NKG2D and blocks the interaction between ligand and receptor.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG Kappa

Scientific Data Images for NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

Immunocytochemistry/Immunofluorescence: NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free [NBP3-20156] -

Immunocytochemistry/Immunofluorescence: NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free [NBP3-20156] - Immunofluorescence analysis of paraformaldehyde fixed human peripheral blood leukocytes stained with the chimeric rabbit IgG version of 6E5A7 (NBP3-20156) (1:1000 dilution) for 1h followed by Alexa Fluor(R) 488 secondary antibody (1:1500 dilution), showing nuclear staining. The nuclear stain is DAPI (blue). Panels show from left-right, top-bottom NBP3-20156, DAPI, merged channels and an isotype control. The isotype control was anti-fluorescein antibody (NBP2-52638) followed by staining with Alexa Fluor(R) 488 secondary antibody.
NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

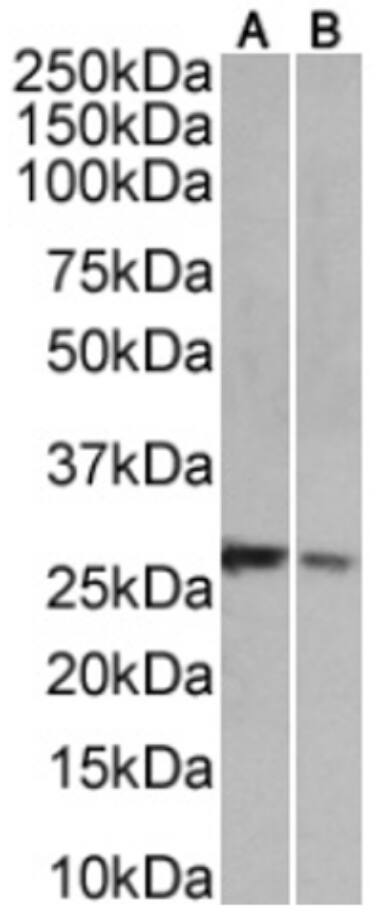

Western Blot: NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free [NBP3-20156] -

Western Blot: NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free [NBP3-20156] - K562(A) (2ug/ml) and human peripheral blood monocytes(B) (2ug/ml) cells lysate (35ug protein in RIPA buffer) were resolved on a SDS PAGE gel and blots were probed with the chimeric rabbit version of 6E5A7 (NBP3-20156) before detection using an anti-rabbit secondary antibody. A primary incubation of 1h was used and protein was detected by chemiluminescence.

Applications for NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

Application
Recommended Usage

Block/Neutralize

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Immunocytochemistry/ Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Western Blot

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
This chimeric rabbit antibody was made using the variable domain sequences of the original Mouse IgG2b format, for improved compatibility with existing reagents, assays and techniques.

Formulation, Preparation, and Storage

Purification

Protein A purified

Formulation

PBS

Format

Azide and BSA Free

Preservative

0.02% Proclin 300

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C for up to 3 months. For longer storage, aliquot and store at -20C.

Background: NKG2D/CD314

Natural killer group 2 member D (NKG2D), also known as killer lectin-like receptor subfamily K member 1 (KLRK1) and CD314, is a 42 kDa type II transmembrane protein belonging to the C-type lectin superfamily and is an activating receptor for NK cells (1). NKG2D is expressed on innate and adaptive immune cells such as NK cells, NKT cells, CD8+ T cells, and gammadelta T cells (1-4). Under pathological conditions, including Crohn's disease and Rheumatoid arthritis, NKG2D expression can be induced on CD4+ cells (2,3). NKG2D is synthesized as a protein of 216 amino acids (aa) in length with a theoretical molecular weight of 25.3 kDa (5). The full NKG2D receptor is expressed on the cell surface as a disulfide-linked homodimer and, in humans, has several ligands expressed on tumor cells including MHC class I-related genes A and B (MICA and MICB) and 6 members of the UL16-binding protein (ULBP) family (1-4, 6). NKG2D interaction with its ligand results in activation of NK cells via the recruitment of adapter molecules DNAX-activating protein of 10 kDa (DAP10) or DAP12 homodimers to the intracellular tail region of NKG2D (1-4, 6). In humans, NKG2D can only bind DAP10; however, mice have both short and long NKG2D isoforms which can also bind DAP12 (2-4, 6). Following NKG2D receptor and ligand interaction, the YXXM motif of the DAP10 adapter molecule initiates a downstream signaling cascade through Grb2 and PI3K pathways, resulting in NK cell cytotoxicity (4,6).

In general, NKG2D signaling has dual functions, playing a role in both immune surveillance and immune escape (4,6). Detection of viruses or pathogens and corresponding cytokine production induces NKG2D-ligand expression on dendritic cells and macrophages as well as NKG2D receptor upregulation on NK cells to initiate an immune response (1,2,4,6). Similarly, NKG2D-ligand expression on tumor cells is upregulated in cancers such as liver cancer, ovarian cancer, colon cancer, and leukemia, and the NKG2D/NKG2D-ligand signaling axis functions in preventing progression and metastasis (1,4,6). By contrast, NKG2D signaling also mediates tumor escape through ligand shedding via proteases from the matrix metalloproteinase (MMP) and a disintegrin and metalloprotease (ADAM) families and transforming growth factor (TGF)-beta inhibition of T cell and NK cell function (4). A number of therapeutic strategies targeting the NKG2D receptor-ligand pathway have been developed for cancer immunotherapies including upregulating NKG2D expression on immune cells via soluble cytokines, modulating ligand expression with histone deacetylase (HDAC) inhibitors, or inhibiting ligand shedding molecules like ADAMs and MMPs (1,4,6). Alternatively, in instances of autoimmune diseases or inflammation, NKG2D blocking strategies are of interest (6).

References

1. Wang, J., Li, C. D., & Sun, L. (2020). Recent Advances in Molecular Mechanisms of the NKG2D Pathway in Hepatocellular Carcinoma. Biomolecules, 10(2), 301. https://doi.org/10.3390/biom10020301

2. Stojanovic, A., Correia, M. P., & Cerwenka, A. (2018). The NKG2D/NKG2DL Axis in the Crosstalk Between Lymphoid and Myeloid Cells in Health and Disease. Frontiers in immunology, 9, 827. https://doi.org/10.3389/fimmu.2018.00827

3. Wensveen, F. M., Jelencic, V., & Polic, B. (2018). NKG2D: A Master Regulator of Immune Cell Responsiveness. Frontiers in immunology, 9, 441. https://doi.org/10.3389/fimmu.2018.00441

4. Liu, H., Wang, S., Xin, J., Wang, J., Yao, C., & Zhang, Z. (2019). Role of NKG2D and its ligands in cancer immunotherapy. American journal of cancer research, 9(10), 2064-2078.

5. Uniprot (P26718)

6. Lanier L. L. (2015). NKG2D Receptor and Its Ligands in Host Defense. Cancer immunology research, 3(6), 575-582. https://doi.org/10.1158/2326-6066.CIR-15-0098

Long Name

Natural Killer G2D

Alternate Names

CD314, D12S2489E, KLRK1

Gene Symbol

KLRK1

Additional NKG2D/CD314 Products

Product Documents for NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Product Specific Notices for NKG2D/CD314 Antibody (6E5A7) - Chimeric - Azide and BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
