SARS-CoV-2 Spike S1 Subunit Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB105405

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
MAB105405-100
MAB105405-SP
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Species Reactivity

SARS-CoV-2

Applications

Blockade of Receptor-ligand Interaction

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 1035224

View all Spike S1 Subunit Antibodies »

Product Specifications

Immunogen

HEK293-derived SARS-CoV-2 Spike S1 Subunit
Accession # YP_009724390.1

Specificity

Detects SARS-CoV-2 Spike S1 RBD and SARS-CoV-2 B.1.1.529 S RBD (Omicron Variant) in direct ELISAs

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for SARS-CoV-2 Spike S1 Subunit Antibody

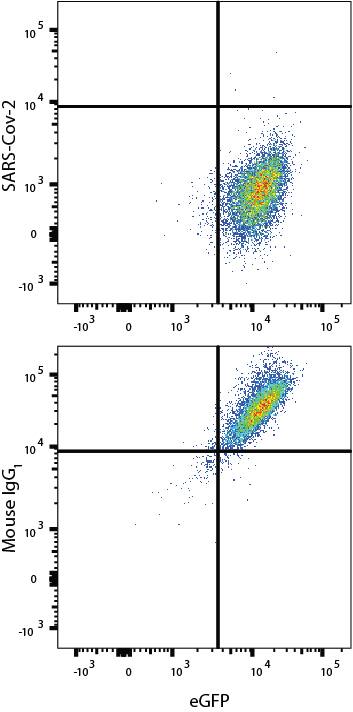

SARS-Cov-2 Omicron protein (B.1.1.529 variant) binding to ACE-2-transfected Human Cell Line is Blocked by SARS-Cov-2 Spike 1 Antibody.

In a functional flow cytometry test, Recombinant SARS-Cov-2 Omicron (B.1.1.529 variant) His-tagged protein (11056-CV) binds to HEK293 human embryonic kidney cell line transfected with recombinant human ACE-2 and eGFP. (A) Binding is completely blocked by 50 µg/mL of Mouse Anti-SARS-Cov-2 Spike 1 Monoclonal Antibody (Catalog # MAB105405) but not by (B) Mouse IgG1 Isotype Control (MAB002). Protein binding was detected with Mouse Anti-His APC-conjugated Monoclonal Antibody (IC050A). Staining was performed using our Staining Membrane-Associated Proteins protocol.

SARS-Cov-2 Spike 1 protein binding to ACE-2-transfected Human Cell Line is Blocked by SARS-Cov-2 Spike 1 Antibody.

In a functional flow cytometry test, Recombinant SARS-Cov-2 Spike 1 His-tagged protein (10522-CV) binds to HEK293 human embryonic kidney cell line transfected with recombinant human ACE-2 and eGFP. (A) Binding is completely blocked by 50 µg/mL of Mouse Anti-SARS-Cov-2 Spike 1 Monoclonal Antibody (Catalog # MAB105405) but not by (B) Mouse IgG1 Isotype Control (MAB002). Protein binding was detected with Mouse Anti-His APC-conjugated Monoclonal Antibody (IC050A). Staining was performed using our Staining Membrane-Associated Proteins protocol.

Applications for SARS-CoV-2 Spike S1 Subunit Antibody

Application
Recommended Usage

Blockade of Receptor-ligand Interaction

50 µg/mL
Sample: In a functional flow cytometry test, 50 μg/mL of Mouse Anti-SARS-Cov-2 Spike 1 Antibody(Catalog # MAB105405) will block the binding of Recombinant SARS-Cov-2 Spike 1 His-tagged protein (Catalog # 10522-CV) and Recombinant SARS-CoV-2 B.1.1.529 S RBD His-tag Protein (Catalog # 11056-CV) to HEK293 human embryonic kidney cell line transfected with recombinant human ACE-2.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Spike S1 Subunit

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein(S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1). SARS-CoV-2 Spike Protein (S Protein) is a glycoprotein that mediates membrane fusion and viral entry. The S protein is homotrimeric, with each ~180-kDa monomer consisting of two subunits, S1 and S2 (2). In SARS-CoV-2, as with most coronaviruses, proteolytic cleavage of the S protein into two distinct peptides, S1 and S2 subunits, is required for activation. The S1 subunit is focused on attachment of the protein to the host receptor while the S2 subunit is involved with cell fusion (3-5). Based on structural biology studies, the receptor binding domain (RBD), located in the C-terminal region of S1, can be oriented either in the up/standing or down/lying state (6). The standing state is associated with higher pathogenicity and both SARS-CoV-1 and MERS can access this state due to the flexibility in their respective RBDs. A similar two-state structure and flexibility is found in the SARS-CoV-2 RBD (7). Based on amino acid (aa) sequence homology, the SARS-CoV-2  S1 subunit has 65% identity with SARS-CoV-1 S1 subunit,  but only 22% homology with the MERS S1 subunit. The low aa sequence homology is consistent with the finding that SARS and MERS bind different cellular receptors (8). The S Protein of the SARS-CoV-2 virus, like the SARS-CoV-1 counterpart, binds Angiotensin-Converting Enzyme 2 (ACE2), but with much higher affinity and faster binding kinetics (9). Before binding to the ACE2 receptor, structural analysis of the S1 trimer shows that only one of the three RBD domains in the trimeric structure is in the "up" conformation. This is an unstable and transient state that passes between trimeric subunits but is nevertheless an exposed state to be targeted for neutralizing antibody therapy (10). Polyclonal antibodies to the RBD of the SARS-CoV-2 S1 subunit have been shown to inhibit interaction with the ACE2 receptor, confirming RBD as an attractive target for vaccinations or antiviral therapy (11). There is also promising work showing that the RBD may be used to detect presence of neutralizing antibodies present in a patient's bloodstream, consistent with developed immunity after exposure to the SARS-CoV-2 virus (12). Lastly, it has been demonstrated the S Protein can invade host cells through the CD147/EMMPRIN receptor and mediate membrane fusion (13, 14).

References

  1. Wu, F. et al. (2020) Nature 579:265.
  2. Tortorici, M.A. and D. Veesler (2019). Adv. Virus Res. 105:93.
  3. Bosch, B.J. et al. (2003) J. Virol. 77:8801.
  4. Belouzard, S. et al. (2009) Proc. Natl. Acad. Sci. 106:5871.
  5. Millet, J.K. and G. R. Whittaker (2015) Virus Res. 202:120.
  6. Yuan, Y. et al. (2017) Nat. Commun. 8:15092.
  7. Walls, A.C. et al. (2010) Cell 180:281.
  8. Jiang, S. et al. (2020) Trends. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
  9. Ortega, J.T. et al. (2020) EXCLI J. 19:410.
  10. Wrapp, D. et al. (2020) Science 367:1260.
  11. Tai, W. et al. (2020) Cell. Mol. Immunol. https://doi.org/10.1016/j.it.2020.03.007.
  12. Okba, N. M. A. et al. (2020). Emerg. Infect. Dis. https://doi.org/10.3201/eid2607.200841.
  13. Wang, X. et al. (2020) https://doi.org/10.1038/s41423-020-0424-9.
  14. Wang, K. et al. (2020) bioRxiv https://www.biorxiv.org/content/10.1101/2020.03.14.988345v1.

Long Name

Spike Protein, S1 Subunit

Alternate Names

SARS-CoV-2

UniProt

YP_009724390.1

Additional Spike S1 Subunit Products

Product Documents for SARS-CoV-2 Spike S1 Subunit Antibody

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for SARS-CoV-2 Spike S1 Subunit Antibody

For research use only
