TGN38 Antibody (2F7.1)
Novus Biologicals, part of Bio-Techne | Catalog # NB300-575
Key Product Details
Species Reactivity
Validated:
Human, Mouse, Rat, Chinese Hamster, Monkey, Rabbit
Cited:
Human, Mouse, Rat
Applications
Validated:
Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot
Cited:
IF/IHC, Immunocytochemistry/ Immunofluorescence, Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG1 Clone # 2F7.1
Concentration
1 mg/ml
Product Specifications
Immunogen
Synthetic peptide corresponding to residues L(18) P S A S K P N N T S S E N N P P(34) C of rat TGN38.
Reactivity Notes
Chinese Hamster reactivity reported in scientific literature (PMID: 11408588). Rabbit reactivity reported in scientific literature (PMID: 10514494). Please note that this antibody is reactive to Mouse and derived from the same host, Mouse. Additional Mouse on Mouse blocking steps may be required for IHC and ICC experiments. Please contact Technical Support for more information. Use in Human reported in scientific literature (PMID:24576880).
Specificity
Detects Trans Golgi Network (TGN) 38 from human and monkey samples and both recombinant and endogenous rat samples.
Marker
TGN Marker
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Scientific Data Images for TGN38 Antibody (2F7.1)
Immunocytochemistry/ Immunofluorescence: TGN38 Antibody (2F7.1) [NB300-575]

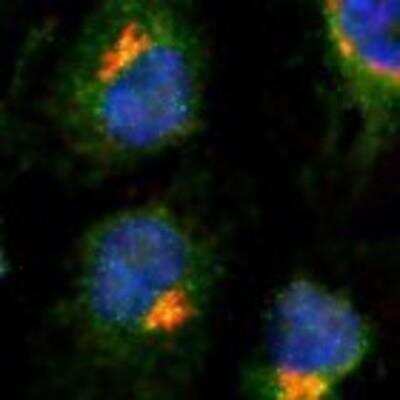

Immunocytochemistry/Immunofluorescence: TGN38 Antibody (2F7.1) [NB300-575] - HeLa and COS7 cells were rinsed with PBS and fixed with -20C methanol for 5 minutes. Cells were incubated with anti-TGN38 antibody diluted 1:100 in PBS containing 0.2% BSA for 1 hour. The cells were then rinsed in PBS and incubated with goat anti-mouse IgG conjugated to rhodamine for 30 minutes in PBS containing 0.2% BSA. Following washing, cells were imaged using a Zeiss Axioplan microscope. ICC/IF image submitted by a verified customer review.Immunocytochemistry/ Immunofluorescence: TGN38 Antibody (2F7.1) [NB300-575]

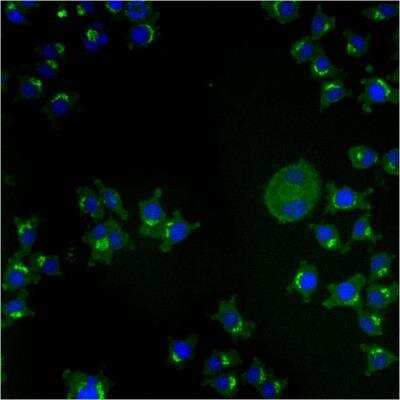

Immunocytochemistry/Immunofluorescence: TGN38 Antibody (2F7.1) [NB300-575] - Staining of TGN-38 in NRK cells.Immunocytochemistry/ Immunofluorescence: TGN38 Antibody (2F7.1) [NB300-575]

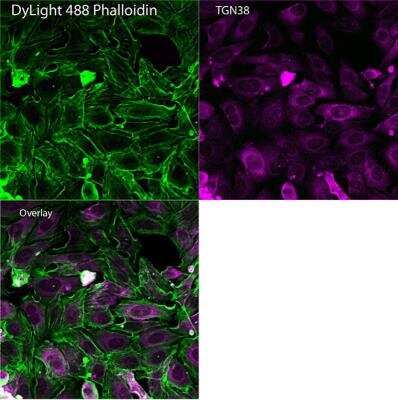

Immunocytochemistry/Immunofluorescence: TGN38 Antibody (2F7.1) [NB300-575] - Analysis of Phalloidin (green) and TGN38 (purple) in U2OS cells. Formalin fixed cells were permeabilized with 0.1% Triton X-100 in PBS for 10 minutes at room temperature and blocked with 2% BSA in PBS + 0.1% Triton X-100 for 30 minutes at room temperature. Cells were probed with a TGN38 monoclonal antibody at a dilution of 1:75 for at least 1 hour at room temperature, washed with PBS, and incubated with DyLight 680 goat anti-mouse IgG secondary antibody at a dilution of 1:250 for 30 minutes at room temperature. Actin was stained with DyLight 488 Phalloidin at a dilution of 1:300 (1 unit/mL final concentration) for 30 minutes. Images were taken on a Thermo Scientific ArrayScan VTI at 20X magnification.Applications for TGN38 Antibody (2F7.1)
Application
Recommended Usage
Flow Cytometry
1:20 - 1:50
Immunocytochemistry/ Immunofluorescence
1:1000
Immunohistochemistry
1:1000
Immunohistochemistry-Paraffin
1:1000
Western Blot
1:500
Application Notes
IP usage was reported in scientific literature (PMID: 10514494). WB: Detects an approx. 38 kDa protein representing deglycosylated recombinant rat TGN38. Under normal WB conditions, detects an 85-95 kDa band depending on cell type. IF: Staining of TGN38 in NRK cells results in staining predominantly in the TGN. IF: it has been shown that methanol works best as a fixative.
Reviewed Applications
Read 1 review rated 5 using NB300-575 in the following applications:
Formulation, Preparation, and Storage
Purification
Protein A or G purified
Formulation
PBS, 1 mg/mL BSA
Preservative
0.05% Sodium Azide
Concentration
1 mg/ml
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at -20C. Avoid freeze-thaw cycles.
Background: TGN38
Long Name
Trans-golgi Network Protein
Alternate Names
TGN46, TGN51, Tgoln1, Tgoln2, Ttgn1
Gene Symbol
TGOLN2
Additional TGN38 Products
Product Documents for TGN38 Antibody (2F7.1)
Product Specific Notices for TGN38 Antibody (2F7.1)
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
