Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Human, Mouse

Cited:

Mouse

Applications

Validated:

Block/Neutralize, CyTOF-ready, Flow (Cell Surface), Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Western Blot

Cited:

Flow (Cell Surface), Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Rat IgG2a Kappa Clone # MTS510

Format

Azide and BSA Free

Concentration

1.0 mg/ml

View all TLR4 Antibodies »

Product Specifications

Immunogen

This TLR4 Antibody (MTS510) was developed by immunizing rats with the Ba/F3 cell line expressing mouse TLR4 and MD-2 (Akashi et al, 2000).

Specificity

This antibody preferentially recognizes TLR4-MD-2 complex than of TLR4 alone.

Clonality

Monoclonal

Host

Rat

Isotype

IgG2a Kappa

Theoretical MW

95.7 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.

Scientific Data Images for TLR4 Antibody (MTS510) - Azide and BSA Free

Flow Cytometry: TLR4 Antibody (MTS510) - Azide and BSA Free [NBP2-24865]

Flow Cytometry: TLR4 Antibody (MTS510) - Azide and BSA Free [NBP2-24865]

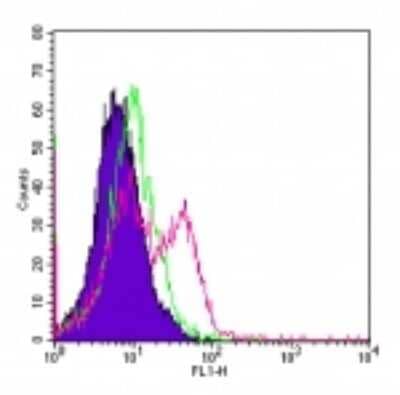

Flow Cytometry: TLR4 Antibody (MTS510) - Azide Free [NBP2-24865] - Analysis using Azide/BSA FREE version of NBP2-24865. Cell surface analysis of TLR4 on mouse RAW cells using 0.5 ug/10^6 cells of TLR4 antibody, anti-rat APC conjugated secondary this antibody and TLR cell surface flow kit this antibody (green represents isotype control; red represents TLR4 antibody).
Flow Cytometry: TLR4 Antibody (MTS510) - Azide and BSA Free [NBP2-24865]

Flow Cytometry: TLR4 Antibody (MTS510) - Azide and BSA Free [NBP2-24865]

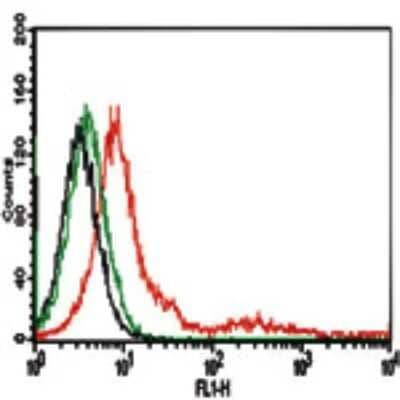

Flow Cytometry: TLR4 Antibody (MTS510) - Azide Free [NBP2-24865] - Cell surface analysis of TLR4 in mouse peritoneal cells using this antibody. The green histogram represents the isotype control and red represents anti-TLR4 antibody.
Flow Cytometry: TLR4 Antibody (MTS510) - Azide and BSA Free [NBP2-24865]

Flow Cytometry: TLR4 Antibody (MTS510) - Azide and BSA Free [NBP2-24865]

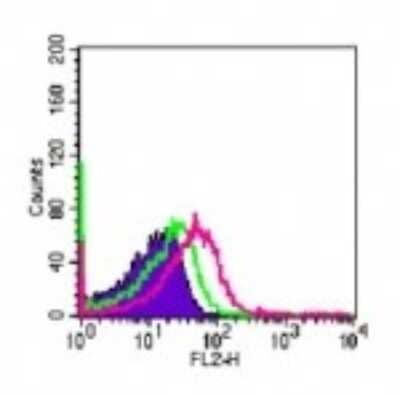

Flow Cytometry: TLR4 Antibody (MTS510) - Azide Free [NBP2-24865] - Analysis using the FITC conjugate of NBP2-24865. Staining of TLR4 in mouse peritoneal cells using 1 ug of this antibody. Shaded histogram represents cells without antibody; green represents isotype control; red represents anti-TLR4 antibody.
View 4 more images

Applications for TLR4 Antibody (MTS510) - Azide and BSA Free

Application
Recommended Usage

Flow (Cell Surface)

reported in scientific literature (PMID 15879150)

Flow Cytometry

1ul/1 million cells

Immunocytochemistry/ Immunofluorescence

reported in scientific literature (PMID 22573811)

Western Blot

reported in scientific literature (PMID 23629653)
Application Notes
In FA, the antibody blocks activation of monocytes with LPS (Akashi et al. 2000). The optimal condition has to be determined for individual experiments.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

Azide and BSA Free

Preservative

No Preservative

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at -20C. Avoid freeze-thaw cycles.

Background: TLR4

TLR4 (Toll-like receptor 4) is a type-1 transmembrane glycoprotein that is a pattern recognition receptor (PRR) belonging to the TLR family (1-3). TLR4 is expressed in many tissues and is most abundantly expressed in the placenta, spleen, and peripheral blood leukocytes (1). Human TLR4 is synthesized as a 839 amino acid (aa) protein containing a signal sequence (1-23 aa), an extracellular domain (ECD) (24-631 aa), a transmembrane domain (632-652 aa), and Toll/interleukin-1 receptor (TIR) cytoplasmic domain (652-839 aa) with a theoretical molecular weight of 95 kDa (3, 4). The ECD contains 21 leucine-rich repeats (LRRs) and has a horseshoe-shaped structure (3, 4). TLR4 requires binding with the co-receptor myeloid differentiation protein 2 (MD2) largely via hydrophilic interactions for proper ligand sensing and signaling (2-4). In general, the TLR family plays a role in activation of innate immunity and responds to a variety of pathogen-associated molecular patterns (PAMPs) (5). TLR4 is specifically responsive to lipopolysaccharide (LPS), which is found on the outer-membrane of most ram-negative bacteria (3-5). Activation of TLR4 requires binding of a ligand, such as LPS to MD2, followed by MD2-LPS complex binding to TLR4, resulting in a partial complex (TLR4-MD2/LPS) (3, 5). To become fully active, two partial complexes must dimerize thereby allowing the TIR domains of TLR4 to bind other adapter molecular and initiate signaling, triggering an inflammatory response and cytokine production (3, 5).

TLR4 signaling occurs through two distinct pathways: The MyD88 (myeloid differentiation primary response gene 88)-dependent pathway and the MyD88-independent (TRIF-dependent, TIR domain-containing adaptor inducing IFN-beta) pathway (3, 5-7). The MyD88-dependent pathway occurs mainly at the plasma membrane and involves the binding of MyD88-adaptor-like (MAL) protein followed by a signaling cascade that results in the activation of transcription factors including nuclear factor-kappaB (NF-kappaB) that promote the secretion of inflammatory molecules and increased phagocytosis (5-7). Conversely, the MyD88-independent pathway occurs after TLR4-MD2 complex internalization in the endosomal compartment. This pathway involves the binding of adapter proteins TRIF and TRIF-related adaptor molecule (TRAM), a signaling activation cascade resulting in IFN regulatory factor 3 (IRF3) translocation into the nucleus, and secretion of interferon-beta (INF-beta) genes and increased phagocytosis (5-7).

Given its expression on immune-related cells and its role in inflammation, TLR4 activation can contribute to various diseases (6-8). For instance, several studies have found that TLR4 activation is associated with neurodegeneration and several central nervous system (CNS) pathologies, including Alzheimer's disease, Parkinson's disease, and Huntington's disease (6, 7). Furthermore, TLR4 mutations have been shown to lead to higher rates of infections and increased susceptibility to sepsis (7-8). One potential therapeutic approach aimed at targeting TLR4 and neuroinflammation is polyphenolic compounds which include flavonoids and phenolic acids and alcohols (8).

Alternative names for TLR4 includes 76B357.1, ARMD10, CD284 antigen, CD284, EC 3.2.2.6, homolog of Drosophila toll, hToll, toll like receptor 4 protein, TOLL, toll-like receptor 4.

References

1. Vaure, C., & Liu, Y. (2014). A comparative review of toll-like receptor 4 expression and functionality in different animal species. Frontiers in immunology. https://doi.org/10.3389/fimmu.2014.00316

2. Park, B. S., & Lee, J. O. (2013). Recognition of lipopolysaccharide pattern by TLR4 complexes. Experimental & molecular medicine. https://doi.org/10.1038/emm.2013.97

3. Krishnan, J., Anwar, M.A., & Choi, S. (2016) TLR4 (Toll-Like Receptor 4). In: Choi S. (eds) Encyclopedia of Signaling Molecules. Springer, New York, NY. https://doi.org/10.1007/978-1-4614-6438-9_592-1

4. Botos, I., Segal, D. M., & Davies, D. R. (2011). The structural biology of Toll-like receptors. Structure. https://doi.org/10.1016/j.str.2011.02.004

5. Lu, Y. C., Yeh, W. C., & Ohashi, P. S. (2008). LPS/TLR4 signal transduction pathway. Cytokine. https://doi.org/10.1016/j.cyto.2008.01.006

6. Leitner, G. R., Wenzel, T. J., Marshall, N., Gates, E. J., & Klegeris, A. (2019). Targeting toll-like receptor 4 to modulate neuroinflammation in central nervous system disorders. Expert opinion on therapeutic targets. https://doi.org/10.1080/14728222.2019.1676416

7. Molteni, M., Gemma, S., & Rossetti, C. (2016). The Role of Toll-Like Receptor 4 in Infectious and Noninfectious Inflammation. Mediators of inflammation. https://doi.org/10.1155/2016/6978936

8. Rahimifard, M., Maqbool, F., Moeini-Nodeh, S., Niaz, K., Abdollahi, M., Braidy, N., Nabavi, S. M., & Nabavi, S. F. (2017). Targeting the TLR4 signaling pathway by polyphenols: A novel therapeutic strategy for neuroinflammation. Ageing research reviews. https://doi.org/10.1016/j.arr.2017.02.004

Long Name

Toll-like Receptor 4

Alternate Names

CD284

Gene Symbol

TLR4

Additional TLR4 Products

Product Documents for TLR4 Antibody (MTS510) - Azide and BSA Free

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Download SDS

Product Specific Notices for TLR4 Antibody (MTS510) - Azide and BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
