ZNF24 Antibody

Western Blot: ZNF24 Antibody [NBP1-82866]

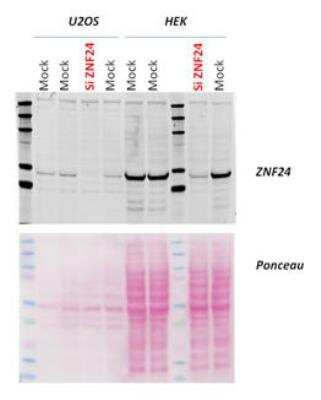

Western Blot: ZNF24 Antibody [NBP1-82866] - Analysis in U2OS and HEK cells. siRNA against ZNF24 show the specificity of the antibody. ZNF24 was used 1/500 in TBST 5% milk, 1 hour at room temperature. Image submitted by a verified customer review.

Knockdown: ZNF24 Antibody [NBP1-82866] -

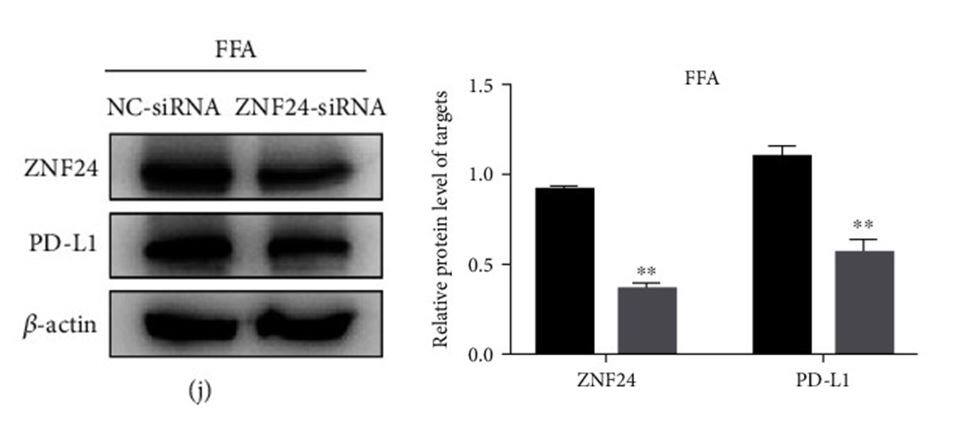

Knockdown: ZNF24 Antibody [NBP1-82866] - ZNF24 promoted PD-L1 expression through binding to its promoter in FFA-treated LO2 cells. ZNF24 and PD-L1 expression in LO2 cells pretreated with siRNA against ZNF24, followed by FFA treatment detected by western blot. ∗∗P < 0.01. PD-L1 expression was suppressed following the ZNF24 knockdown. Image collected and cropped by CiteAb from the following publication (//pubmed.ncbi.nlm.nih.gov/35615575/) licensed under a CC-BY license.

Western Blot: ZNF24 Antibody [NBP1-82866] -

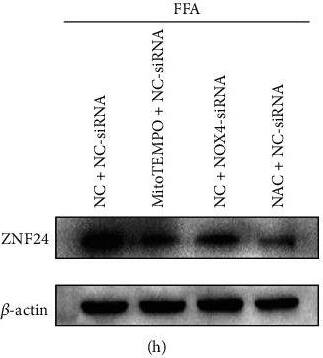

ZNF24 promoted PD-L1 expression through binding to its promoter in FFA-treated LO2 cells. (a) A schematic of the target sites (wild & mutant) of ZNF24 in the promoter of PD-L1. (b–d) Dual-luciferase reporter assays performed in LO2 cells transfected with WT or MT plasmid containing ZNF24-binding sites in the PD-L1 promoter using Lipofectamine 2000 after ZNF24 overexpression. (e–g) ZNF24 expression after FFA treatment determined by qRT-PCR & western blot. (h & i) ZNF24 expression in LO2 cells pretreated with siRNA against NOX4, MitoTEMPO (10 μM), or NAC (5 mM) followed by FFA treatment, measured by western blot. (j & k) ZNF24 & PD-L1 expression in LO2 cells pretreated with siRNA against ZNF24, followed by FFA treatment detected by western blot. ∗∗P < 0.01. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ZNF24 Antibody [NBP1-82866] -

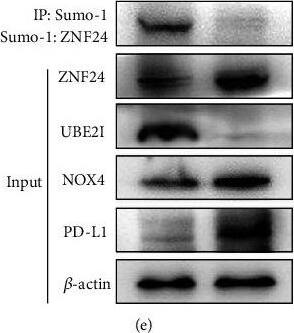

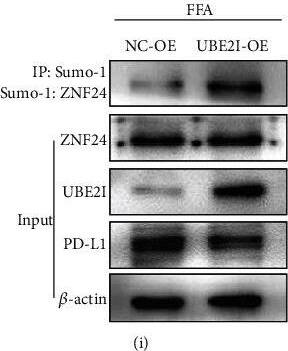

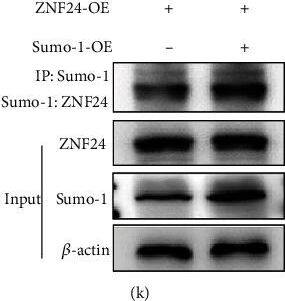

Identification of ZNF24–UBE2I protein interactions. (a & b) Analysis of protein interactions between ZNF24 & UBE2I using the BioGRID database, further confirmed by Co-IP assays. (c–f) UBE2I expression in LO2 cells treated by FFA or pretreated with siRNA against NOX4, MitoTEMPO (10 μM), or NAC (5 mM) followed by FFA treatment measured by western blot. (g & h) After FFA treatment, Sumo-1: ZNF24 & ZNF24 expression levels detected by western blot. (i & j) After UBE2I overexpression, Sumo-1: ZNF24, ZNF24, PD-L1, & UBE2I expression levels were determined by western blot. (k–m) Dual-luciferase reporter assays performed in LO2 cells transfected with WT plasmid containing ZNF24-binding sites in the PD-L1 promoter using Lipofectamine 2000 after ZNF24 overexpression with or without Sumo-1 overexpression. ∗∗P < 0.01. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ZNF24 Antibody [NBP1-82866] -

ROS/ZNF24/PD-L1 pathway activation in NAFLD models. (a) Intracellular ROS in hepatocytes in NAFLD significantly increased. (b) JC-1 probes were used to detect mitochondrial membrane potential. (c & d) NOX4 & ZNF24 expressions were determined by immunohistochemistry. (e & f) ROS/ZNF24/PD-L1 pathway activation examined by western blot. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ZNF24 Antibody [NBP1-82866] -

Western Blot: ZNF24 Antibody [NBP1-82866] - ZNF24 promoted PD-L1 expression through binding to its promoter in FFA-treated LO2 cells. (a) A schematic of the target sites (wild & mutant) of ZNF24 in the promoter of PD-L1. (b–d) Dual-luciferase reporter assays performed in LO2 cells transfected with WT or MT plasmid containing ZNF24-binding sites in the PD-L1 promoter using Lipofectamine 2000 after ZNF24 overexpression. (e–g) ZNF24 expression after FFA treatment determined by qRT-PCR & western blot. (h & i) ZNF24 expression in LO2 cells pretreated with siRNA against NOX4, MitoTEMPO (10 μM), or NAC (5 mM) followed by FFA treatment, measured by western blot. (j & k) ZNF24 & PD-L1 expression in LO2 cells pretreated with siRNA against ZNF24, followed by FFA treatment detected by western blot. ∗∗P < 0.01. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ZNF24 Antibody [NBP1-82866] -

Western Blot: ZNF24 Antibody [NBP1-82866] - ZNF24 promoted PD-L1 expression through binding to its promoter in FFA-treated LO2 cells. (a) A schematic of the target sites (wild & mutant) of ZNF24 in the promoter of PD-L1. (b–d) Dual-luciferase reporter assays performed in LO2 cells transfected with WT or MT plasmid containing ZNF24-binding sites in the PD-L1 promoter using Lipofectamine 2000 after ZNF24 overexpression. (e–g) ZNF24 expression after FFA treatment determined by qRT-PCR & western blot. (h & i) ZNF24 expression in LO2 cells pretreated with siRNA against NOX4, MitoTEMPO (10 μM), or NAC (5 mM) followed by FFA treatment, measured by western blot. (j & k) ZNF24 & PD-L1 expression in LO2 cells pretreated with siRNA against ZNF24, followed by FFA treatment detected by western blot. ∗∗P < 0.01. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ZNF24 Antibody [NBP1-82866] -

Western Blot: ZNF24 Antibody [NBP1-82866] - Identification of ZNF24–UBE2I protein interactions. (a & b) Analysis of protein interactions between ZNF24 & UBE2I using the BioGRID database, further confirmed by Co-IP assays. (c–f) UBE2I expression in LO2 cells treated by FFA or pretreated with siRNA against NOX4, MitoTEMPO (10 μM), or NAC (5 mM) followed by FFA treatment measured by western blot. (g & h) After FFA treatment, Sumo-1: ZNF24 & ZNF24 expression levels detected by western blot. (i & j) After UBE2I overexpression, Sumo-1: ZNF24, ZNF24, PD-L1, & UBE2I expression levels were determined by western blot. (k–m) Dual-luciferase reporter assays performed in LO2 cells transfected with WT plasmid containing ZNF24-binding sites in the PD-L1 promoter using Lipofectamine 2000 after ZNF24 overexpression with or without Sumo-1 overexpression. ∗∗P < 0.01. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ZNF24 Antibody [NBP1-82866] -

Western Blot: ZNF24 Antibody [NBP1-82866] - Identification of ZNF24–UBE2I protein interactions. (a & b) Analysis of protein interactions between ZNF24 & UBE2I using the BioGRID database, further confirmed by Co-IP assays. (c–f) UBE2I expression in LO2 cells treated by FFA or pretreated with siRNA against NOX4, MitoTEMPO (10 μM), or NAC (5 mM) followed by FFA treatment measured by western blot. (g & h) After FFA treatment, Sumo-1: ZNF24 & ZNF24 expression levels detected by western blot. (i & j) After UBE2I overexpression, Sumo-1: ZNF24, ZNF24, PD-L1, & UBE2I expression levels were determined by western blot. (k–m) Dual-luciferase reporter assays performed in LO2 cells transfected with WT plasmid containing ZNF24-binding sites in the PD-L1 promoter using Lipofectamine 2000 after ZNF24 overexpression with or without Sumo-1 overexpression. ∗∗P < 0.01. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/35615575), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
