DRAQ5 (TM)
Novus Biologicals, part of Bio-Techne | Catalog # NBP2-81125
Key Product Details
Applications
Flow Cytometry, Immunocytochemistry/ Immunofluorescence, Microscopy
Product Summary for DRAQ5 (TM)
Key Features of DRAQ5 (TM) :
Bright, far-red DNA dye that works on live or fixed cell and tissue preparations for multiple applications such as flow cytometry, fluorescence imaging, and high content screening
Proven no-lyse, no-wash method for measuring DNA content in cells
Tested on hundreds of cell and tissue types
Exceptionally photostable so no photobleaching effect
Convenient, ready-to-use formulation
Enables phenotyping of blood/BM and direct cellular DNA content analysis in flow cytometry without any RBC lysis or fixation, permeabilization or RNase treatment
Spectrally compatible with most visible-range fluorophores including GFP/FITC and R-PE
Products are shipped at ambient temperature, but on receipt packs should be stored at 2-8C. DO NOT FREEZE. DRAQ5 (TM) can come out of solution when frozen and it is difficult (but not impossible) to get it back into solution.
Bright, far-red DNA dye that works on live or fixed cell and tissue preparations for multiple applications such as flow cytometry, fluorescence imaging, and high content screening
Proven no-lyse, no-wash method for measuring DNA content in cells
Tested on hundreds of cell and tissue types
Exceptionally photostable so no photobleaching effect
Convenient, ready-to-use formulation
Enables phenotyping of blood/BM and direct cellular DNA content analysis in flow cytometry without any RBC lysis or fixation, permeabilization or RNase treatment
Spectrally compatible with most visible-range fluorophores including GFP/FITC and R-PE
Products are shipped at ambient temperature, but on receipt packs should be stored at 2-8C. DO NOT FREEZE. DRAQ5 (TM) can come out of solution when frozen and it is difficult (but not impossible) to get it back into solution.
Product Specifications
Applications
Flow Cytometry (1:250 - 1:1000)
Fluorescence Imaging (1:1000)
Immunocytochemistry/ Immunofluorescence (1:1000)
Live Imaging Microscopy (1:1000)
Fluorescence Imaging (1:1000)
Immunocytochemistry/ Immunofluorescence (1:1000)
Live Imaging Microscopy (1:1000)
Application Notes
Use in Immunocytochemistry/Immunofluorescence reported in scientific literature (PMID:34354753).
Scientific Data Images for DRAQ5 (TM)
Live Imaging Microscopy: DRAQ5 (TM) [NBP2-81125]
Live Imaging Microscopy: DRAQ5 (TM) [NBP2-81125] - DRAQ5 was diluted in EMEM culture media and applied to live HeLa cells at 5 uM (1:1000) for 30 minutes at room temperature and protected from light. Imaging was done immediately after staining without washing the cells.Immunocytochemistry/ Immunofluorescence: DRAQ5 (TM) [NBP2-81125]
Immunocytochemistry/Immunofluorescence: DRAQ5 (TM) [NBP2-81125] - ' (red) counterstaining of fixed U2OS cells. AlexaFluor 488 antibody to beta-tubulin (green).Flow Cytometry: DRAQ5 (TM) [NBP2-81125]

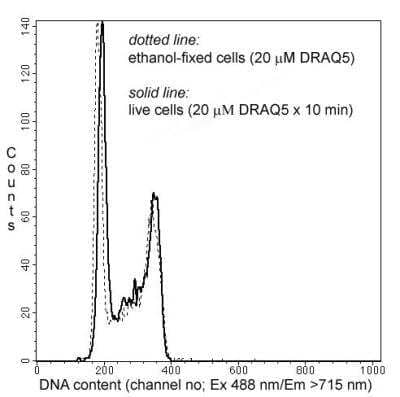

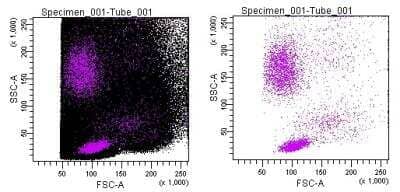

Flow Cytometry: DRAQ5 (TM) [NBP2-81125] - DNA content analysis in live or fixed cells using DRAQ5 (TM)Formulation, Preparation, and Storage
Purification
>97%
Concentration
Please see the protocols for proper use of this product. If no protocol is available, contact technical services for assistance.
Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Storage
Store at 4C in the dark. Do not freeze.
Background: DRAQ5 (TM)

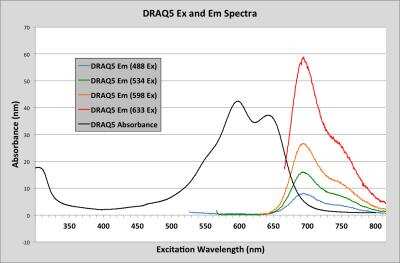

The excitation wavelength maxima of DRAQ5 (TM) are 600 nm / 646 nm but it can also be suboptimally excited by the 488nm (blue laser) for flow cytometry. Its emission wavelength maximum is 697 nm when intercalated with dsDNA. The fluorescence signal is proportional and stoichiometric to the quantity of nuclear DNA present in the cell.
Alternate Names
DRAQ5
Additional DRAQ5 (TM) Products
Product Documents for DRAQ5 (TM)
Product Specific Notices for DRAQ5 (TM)
DRAQ5 (TM) is a registered trademark of BioStatus Limited.
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Support products are guaranteed for 6 months from date of receipt.
