Recombinant Human B7-H2 Fc Chimera Alexa Fluor® 647 Protein

R&D Systems, part of Bio-Techne | Catalog # AFR165

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AFR165-020
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about FluorokinesTM Fluorescent-Labeled Proteins

Source

NS0

Accession #

O75144.2

Structure / Form

Disulfide-linked homodimer
Labeled with Alexa Fluor® 647
Excitation Wavelength: 650 nm
Emission Wavelength: 668 nm

Conjugate

Alexa Fluor 647 (Excitation= 650 nm, Emission= 668 nm)

Applications

Bioactivity

View all B7-H2 Proteins and Enzymes »

Product Specifications

Source

Mouse myeloma cell line, NS0-derived human B7-H2 protein
Human B7-H2
(Asp19-Ser258)
Accession # O75144.2		 DIEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Asp19

Predicted Molecular Mass

53.4 kDa (monomer)

SDS-PAGE

80-90 kDa, under reducing conditions.

Activity

Measured by flow cytometry for its ability to bind anti-human B7-H2 Antibody conjugated beads. The concentration of Recombinant Human B7‑H2 Fc Chimera Alexa Fluor® 647 (Catalog # AFR165) that produces 50% of the binding response is 2.50‑25.0 ng/mL.

Scientific Data Images for Recombinant Human B7-H2 Fc Chimera Alexa Fluor® 647 Protein

Flow cytometry analysis for Recombinant Human B7‑H2 Fc Chimera Alexa Fluor® 647 staining on human B7-H2 antibody conjugated beads.

Streptavidin coated beads conjugated to Human B7-H2 Biotinylated Antibody were stained with the indicated concentrations of Recombinant Human B7‑H2 Fc Chimera Alexa Fluor® 647 (Catalog # AFR165).

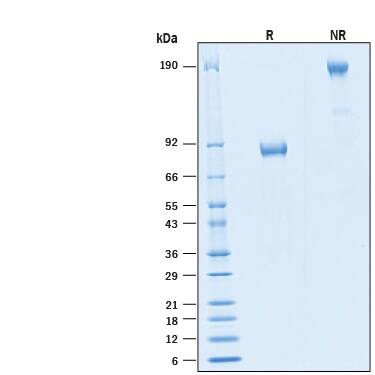

Recombinant Human B7‑H2 Fc Chimera Alexa Fluor® 647 Protein SDS-PAGE.

2 μg/lane of Recombinant Human B7‑H2 Fc Chimera Alexa Fluor® 647 Protein (Catalog # AFR165) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 80-90 kDa and 160-180 kDa, respectively.

Formulation, Preparation and Storage

AFR165
Formulation Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after opening.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: B7-H2

B7-H2, also known as B7-related protein (B7RP1), ICOS Ligand, and CD275, is an approximately 60 kDa transmembrane glycoprotein in the B7 family of immune regulatory molecules (1). Mature human B7-H2 consists of a 238 amino acid (aa) extracellular domain (ECD) with two immunoglobulin-like domains, a 21 aa transmembrane segment, and a 25 aa cytoplasmic domain (2, 3). Within the ECD, human B7-H2 shares 50% and 54% aa sequence identity with mouse and rat B7-H2, respectively. Alternative splicing generates a long isoform that carries a 10 aa substitution for the C-terminal 3 residues. B7-H2 is expressed on antigen presenting cells such as B cells, macrophages, monocytes, and dendritic cells (2-6). It binds to ICOS on activated T cells, leading to both positive and negative effects on immune responses including its own down-regulation (2, 4, 7). Mouse and human B7-H2 exhibit cross-species binding to ICOS (3, 6). The B7-H2 interaction with ICOS is costimulatory for T cell proliferation as well as the development of B cells, plasma cells, follicular helper T cells (TFH) and germinal centers (2-4, 8, 9). In human but not in mouse, B7-H2 additionally binds to CD28 and CTLA4, and its interaction with CD28 can costimulate both human and mouse naïve T cells and regulatory T cells (Treg) (6). B7-H2 contributes to the development of allergic asthma by enhancing Th2 biased immune responses, limiting Th17 responses, and promoting eosinophilic infiltration into the lung (8, 10, 11). Its activation of ICOS on Treg limits pulmonary inflammation and airway hyperresponsiveness, promotes the development of inhalational tolerance, and impairs anti-tumor immunity (5, 12, 13). In contrast, its ligation of ICOS on TFH cells can increase the severity of autoimmune symptoms (9). A soluble form of human B7-H2 is elevated in the circulation of patients with active systemic lupus erythematosus (14). In the thyroid, B7-H2 is up-regulated on thyrocytes during inflammation and promotes their proliferation and production of thryoid hormones (15).

References

  1. Bour-Jordan, H. et al. (2011) Immunol. Rev. 241:180.
  2. Wang, S. et al. (2000) Blood 96:2808.
  3. Yoshinaga, S.K. et al. (2000) Int. Immunol. 12:1439.
  4. Yoshinaga, S.K. et al. (1999) Nature 402:827.
  5. Faget, J. et al. (2012) Cancer Res. 72:6130.
  6. Yao, S. et al. (2011) Immunity 32:729.
  7. Watanabe, M. et al. (2008) J. Immunol. 180:5222.
  8. Wong, S.-C. et al. (2003) Blood 102:1381.
  9. Hu, Y.-L. et al. (2009) J. Immunol. 182:1421.
  10. Kadkhoda, K. et al. (2010) J. Immunol. 184:3780.
  11. Kadkhoda, K. et al. (2011) Int. Immunol. 23:239.
  12. Gajewska, B.U. et al. (2005) J. Immunol. 174:3000.
  13. Akbari, O. et al. (2002) Nat. Med. 8:1024.
  14. Her, M. et al. (2009) Lupus 18:501.
  15. Wang, F. et al. (2012) J. Clin. Immunol. 32:1253.

Long Name

B7 Homolog 2

Alternate Names

B7H2, B7RP-1, CD275, GL50, ICOSL, ICOSLG

Entrez Gene IDs

23308 (Human); 50723 (Mouse); 499415 (Rat); 102132485 (Cynomolgus Monkey)

Gene Symbol

ICOSLG

UniProt

O75144.2

Additional B7-H2 Products

Product Documents for Recombinant Human B7-H2 Fc Chimera Alexa Fluor® 647 Protein

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant Human B7-H2 Fc Chimera Alexa Fluor® 647 Protein

This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.
This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.

For research use only
