Recombinant Human CD4 Fc Chimera Avi-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI10965

Biotinylated
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AVI10965-050
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

CHO

Accession #

P01730.1

Structure / Form

Disulfide-linked homodimer
Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

View all CD4 Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human CD4 protein
Human CD4
(Lys26-Trp390)
Accession # P01730.1		 IEGRMD Human IgG1 Fc
(Pro100-Lys330)		 Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Lys26

Predicted Molecular Mass

69 kDa

SDS-PAGE

78-87 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
When Human CD4 Antibody  (Catalog # AF-379-NA) is immobilized at 2.00 μg/mL (100 μL/well), Biotinylated Recombinant Human CD4 Fc Chimera Avi-tag binds with an ED50 of 2.00-12.0 ng/mL.

Scientific Data Images for Recombinant Human CD4 Fc Chimera Avi-tag Protein, CF

Biotinylated Recombinant Human CD4 Fc Chimera Avi-tag Protein Binding Activity.

When Human CD4 Antibody (AF-379-NA) is immobilized at 2.00 μg/mL (100 μL/well), Biotinylated Recombinant Human CD4 Fc Chimera Avi-tag Protein (Catalog # AVI10965) binds with an ED50 of 2.00-12.0 ng/mL.

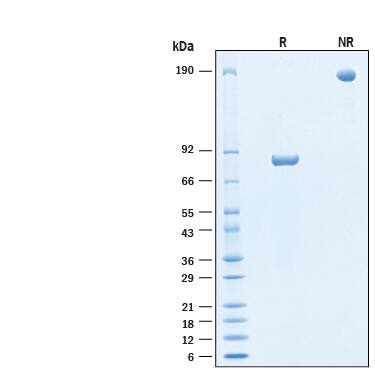

Biotinylated Recombinant Human CD4 Fc Chimera Avi-tag Protein SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human CD4 Fc Chimera Avi-tag Protein (Catalog # AVI10965) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 78-87 kDa and 160-170 kDa, respectively.

Formulation, Preparation and Storage

AVI10965
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CD4

CD4, also known as L3T4, T4, and W3/25, is an approximately 55 kDa type I transmembrane glycoprotein that is expressed predominantly on thymocytes and a subset of mature T lymphocytes. It is a standard phenotype marker for the identification of T cell populations (1). Mature human CD4 consists of a 371 amino acid (aa) extracellular region containing four immunoglobulin-like domains, a 22 aa transmembrane segment, and a 40 aa cytoplasmic domain (2). Within the ECD, human CD4 shares approximately 52% aa sequence identity with mouse and rat CD4. CD4 is expressed along with CD8 on double positive T cells during their development in the thymus. Either CD4 or CD8 expression is then lost, giving rise to single positive (SP) CD4+ or CD8+ mature T cells (3). CD4+ SP cells, also known as T helper cells, further differentiate into multiple subsets of CD4+ cells including Th1, Th2, Th17, Tfh, and Treg cells which regulate humoral and cellular immunity (4). CD4 is reexpressed on circulating CD8+ T cells upon activation and contributes to their cytotoxic effector activity (5). In human, CD4 is additionally expressed on macrophages, neutrophils, monocytes, NK cells, and neurons and glial cells in the brain (6-9). Similar CD4 distribution between species cannot be assumed as demonstrated by its presence on macrophages in human and rat but not in mouse (6). CD4 binds directly to MHC class II molecules on antigen presenting cells (10). This interaction contributes to the formation of the immunological synapse which is focused around the TCR-MHC class II-antigenic peptide interaction (1, 11). Palmitoylation of two cysteine residues in the cytoplasmic tail of CD4 promotes the localization of CD4 in lipid rafts and its ability to augment TCR signaling via activation of the tyrosine kinase Lck (12). CD4 also functions as a chemotactic receptor for IL-16 and, in human, as a co-receptor for the gp120 surface glycoprotein of HIV-1 (7, 13-15). Our Avi-tag Biotinylated human CD4 Fc Chimera features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References

  1. Vignali, D.A.A. (2010) J. Immunol. 184:5933.
  2. Maddon, P.J. et al. (1985) Cell 42:93.
  3. Alarcon, B. and H.M. van Santen (2010) Sci. Signal. 3:pe11.
  4. Wan, Y.Y. and R.A. Flavell (2009) Mol. Cell Biol. 1:20.
  5. Kitchen, S.G. et al. (2005) Proc. Natl. Acad. Sci. 102:3794.
  6. Crocker, P.R. et al. (1987) J. Exp. Med. 166:613.
  7. Biswas, P. et al. (2003) Blood 101:4452.
  8. Bernstein, H.B. et al. (2006) J. Immunol. 177:3669.
  9. Funke, I. et al. (1987) J. Exp. Med. 165:1230.
  10. Doyle, C. and J.L. Strominger (1987) Nature 330:256.
  11. Huppa, J.B. et al. (2010) Nature 463:963.
  12. Fragoso, R. et al. (2003) J. Immunol. 170:913.
  13. Cruikshank, W.W. et al. (1994) Proc. Natl. Acad. Sci. 91:5109.
  14. Klatzmann, D. et al. (1984) Nature 312:767.
  15. Dagleish, A.G. et al. (1984) Nature 312:763.

Alternate Names

CD4

Entrez Gene IDs

920 (Human); 12504 (Mouse); 24932 (Rat); 403931 (Canine); 101864991 (Cynomolgus Monkey); 493775 (Feline)

Gene Symbol

CD4

UniProt

P01730.1
