Recombinant Human Common gamma Chain Avi-tag His Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI384

His-tag
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AVI384-050

Key Product Details

Source

CHO

Accession #

Structure / Form

Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human Common gamma Chain/IL-2 R gamma protein
Leu23-Asn254 with a C-terminal Avi-tag & 6-His tag

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Leu23

Predicted Molecular Mass

32 kDa

SDS-PAGE

60-67 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag binds to Recombinant Human CD25/IL-2R alpha Protein (Catalog # 223-2A), Recombinant Human IL-2R beta Protein  (Catalog # 224-2B), and Recombinant Human IL-2 Protein (Catalog # 202-IL) with an ED50 of 0.100-1.00 μg/mL.

Scientific Data Images for Recombinant Human Common gamma Chain Avi-tag His Protein, CF

Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag Protein Binding Activity.

Measured by its binding ability in a functional ELISA. Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag (Catalog # AVI384) binds to Recombinant Human CD25/IL-2R alpha Protein (223-2A), Recombinant Human IL-2R beta Protein (224-2B) and Recombinant Human IL-2 Protein (202-IL) with an ED50 of 0.100-1.00 μg/mL.

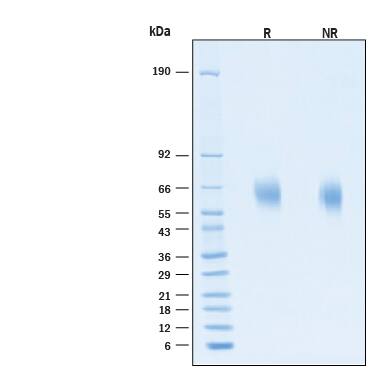

Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag Protein SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag Protein (Catalog # AVI384) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 60-67 kDa, under reducing conditions.

Formulation, Preparation and Storage

AVI384
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Common gamma Chain/IL-2 R gamma

The gamma chain of the high affinity functional human IL-2 receptor complex belongs to the hematopoietin receptor family. IL-2 R gamma is a 369 amino acid residue protein consisting of a 22 residue signal sequence, a 232 residue extracellular domain, a 29 residue transmembrane domain and an 86 residue cytoplasmic domain. Although IL-2 R gamma by itself does not bind IL-2 with any appreciable affinity, it is required for IL-2 receptor signaling. Besides IL-2, the gamma chain has been shown to be a component of the functional receptor complexes for IL-4, IL-7, IL-9 and IL-15. It has been proposed that IL-2 R gamma be designated the common gamma chain ( gammac). The site of molecular defects in X-linked SCID (severe combined immunodeficiency) has now been mapped to the IL-2 R gamma gene. Our Avi-tag Biotinylated IL-2 R gamma features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide.  Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References

  1. Minami, Y. et al. (1993) Annu. Rev. Immunol. 11:245.
  2. Noguchi, M. et al. (1993) Science 262:1877.

Long Name

IL-2 Receptor gamma

Alternate Names

CD132, IL-2 R gamma, IL2R gamma, IL2RG

Entrez Gene IDs

3561 (Human); 16186 (Mouse)

Gene Symbol

IL2RG

UniProt

Additional Common gamma Chain/IL-2 R gamma Products

Product Documents for Recombinant Human Common gamma Chain Avi-tag His Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human Common gamma Chain Avi-tag His Protein, CF

For research use only
