Recombinant Human ErbB2/Her2 Fc His Alexa Fluor® 488 Protein
R&D Systems, part of Bio-Techne | Catalog # AFG1129
Key Product Details
Learn more about FluorokinesTM Fluorescent-Labeled Proteins
Source
NS0
Accession #
Structure / Form
Disulfide-linked homodimer
Labeled with Alexa Fluor® 488 via amines
Excitation Wavelength: 488 nm
Emission Wavelength: 515-545 nm
Labeled with Alexa Fluor® 488 via amines
Excitation Wavelength: 488 nm
Emission Wavelength: 515-545 nm
Conjugate
Alexa Fluor 488 (Excitation= 488 nm, Emission= 515-545 nm)
Applications
Bioactivity
Product Specifications
Source
Mouse myeloma cell line, NS0-derived human ErbB2/Her2 protein
| Human Erb B2 (Thr23-Thr652) Accession # NP_004439.2 |
IEGRMD | Human IgG1 (Pro100-Lys330) |
6-His tag |
| N-terminus | C-terminus | ||
Purity
>90%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<1.0 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Thr23
Predicted Molecular Mass
97 kDa (monomer)
SDS-PAGE
115-130 kDa, under reducing conditions.
Activity
Measured by flow cytometry for its ability to bind anti-Human ErbB2/Her2 Monoclonal Antibody conjugated beads.The concentration of Recombinant Human ErbB2/Her2 Fc Chimera Alexa Fluor® 488 (Catalog # AFG1129) that produces 50% of the binding response is 10.0-100 ng/mL.
Scientific Data Images for Recombinant Human ErbB2/Her2 Fc His Alexa Fluor® 488 Protein
Flow cytometry analysis for Recombinant Human ErbB2/Her2 Fc Chimera His-tag Alexa Fluor® 488 staining on anti-human ErbB2/Her2 Monoclonal Antibody conjugated beads.
Streptavidin coated beads conjugated to biotinylated anti-human ErbB2/Her2 Monoclonal Antibody were stained with the indicated concentrations of Recombinant Human ErbB2/Her2 Fc Chimera His-tag Alexa Fluor® 488 (Catalog # AFG1129).

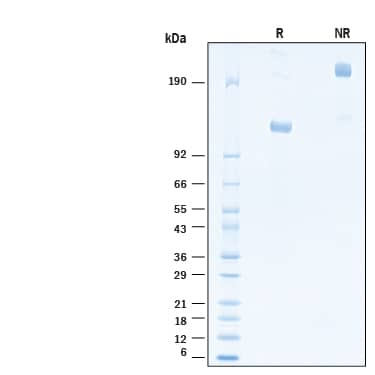

Recombinant Human ErbB2/Her2 Fc His Alexa Fluor® 488 Protein SDS-PAGE.
2 μg/lane of Recombinant Human ErbB2/Her2 Fc His Alexa Fluor® 488 Protein (Catalog # AFG1129) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 115-130 kDa and 230-260 kDa, respectively.Formulation, Preparation and Storage
AFG1129
| Formulation | Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein. |
| Shipping | The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Background: ErbB2/Her2
ErbB2, also called Neu and Her2 (human epidermal growth factor receptor 2), is a type I membrane glycoprotein that is a member of the ErbB family of tyrosine kinase receptors. ErbB family members serve as receptors for the epidermal growth factor (EGF) family of growth factors. ErbB2 is widely expressed in epithelial cells and has also been found to be over-expressed in a large number of breast carcinomas. Among ErbB family members, ErbB2 is unique in that it has no identified ligands. Rather, ErbB2 heterodimerizes with the other members of the ErbB family (ErbB1 (EGFR), ErbB3, ErbB4) to form higher affinity signaling complexes. Because ErbB3 contains a defective kinase domain, the kinase domain of ErbB2 is responsible for initiating the tyrosine phosphorylation signal through the heterodimeric receptor. It has been found that a discrete three amino acid signal in the ErbB3 cytoplasmic domain is critical for transactivation of ErbB2. Interestingly, this same three amino acid signal has also been found in ErbB1 and ErbB4. Phosphoinositide 3-kinase has been shown to play a role in ErbB2 signal transduction. The cytoplasmic domain of ErbB2 has been shown to associate with beta-catenin and plakoglobin. Human ErbB2 consists of 1255 amino acids (aa) with a 21 aa signal sequence, a 631 aa extracellular domain, a 23 aa transmembrane region, and a 580 aa cytoplasmic domain. ErbB2 can be shed from the cell surface by proteolytic cleavage by an unidentified protease. ErbB2 appears to play roles in development, cancer, communication at the neuromuscular junction and regulation of cell growth and differentiation (1-10).
References
- Coussens, L. et. al. (1985) Science 230:1132.
- Yamamoto, T. et. al. (1986) Nature 319:230.
- Kanai, Y. et. al. (1995) Biochem. Biophys. Res. Commun. 208:1067.
- Codony-Servat, J. et. al. (1999) Cancer Res. 59:1196.
- Carraway, K.L. 3rd et. al. (1994) J. Biol. Chem. 269:14303.
- Emkey, R. and C.R. Kahn (1997) J. Biol. Chem. 272:31172.
- Schaefer, G. et. al. (1999) J. Biol. Chem. 274:859.
- Schlessinger, J. (2000) Cell 103:211.
- Hellyer, N.J. et. al. (2001) J. Biol. Chem. 276:42153.
- Daly, R.J. (1999) Growth Factors 16:255.
Long Name
Receptor Tyrosine Protein Kinase ErbB2
Alternate Names
CD340, HER2, Neu Oncogene, NGL, TKR1
Gene Symbol
ERBB2
UniProt
