Recombinant Human Fc gamma RIIA His Alexa Fluor® 647 Protein

R&D Systems, part of Bio-Techne | Catalog # AFR1330

(R167)
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AFR1330-020

Key Product Details

Source

NS0

Accession #

Structure / Form

Labeled with Alexa Fluor® 647
Excitation Wavelength: 650 nm
Emission Wavelength: 668 nm

Conjugate

Alexa Fluor 647 (Excitation= 650 nm, Emission= 668 nm)

Applications

Bioactivity

Product Specifications

Source

Mouse myeloma cell line, NS0-derived human Fc gamma RIIA/CD32a protein
Ala36-Ile218, with a C-terminal 10-His tag

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Ala36

Predicted Molecular Mass

22 kDa

SDS-PAGE

26-36 kDa, under reducing conditions.

Activity

Measured by flow cytometry for its ability to bind anti-human Fc gamma RIIA/CD32a Antibody conjugated beads. The concentration of Recombinant Human Fc gamma RIIA/CD32a (R167) His-tag Alexa Fluor® 647 (Catalog # AFR1330) that produces 50% of the binding response is 0.800-8.00 ng/mL.

Scientific Data Images for Recombinant Human Fc gamma RIIA His Alexa Fluor® 647 Protein

Flow cytometry analysis for Recombinant Human Fc gamma RIIA/CD32a (R167) His-tag Alexa Fluor® 647 staining on anti-human IgG1 Fc Antibody conjugated beads.

Streptavidin coated beads conjugated to biotinylated anti-human Fc gamma RIIA/CD32a Antibody were stained with the indicated concentrations of Recombinant Human Fc gamma RIIA/CD32a (R167) His-tag Alexa Fluor® 647 (Catalog# AFR1330).

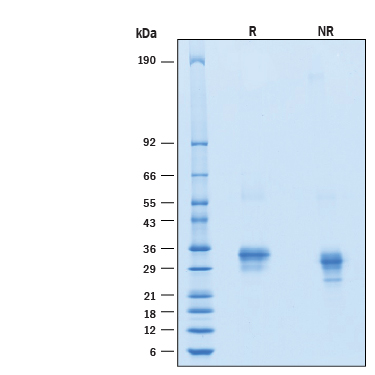

Recombinant Human Fc gamma RIIA/CD32a (R167) His-tag Alexa Fluor® 647 Protein SDS-PAGE.

2 μg/lane of Recombinant Human Fc gamma RIIA/CD32a (R167) His-tag Alexa Fluor® 647 Protein (Catalog # AFR1330) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 26-36 kDa.

Formulation, Preparation and Storage

AFR1330
Formulation Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after opening.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: Fc gamma RIIA/CD32a

Receptors for the Fc region of IgG (Fc gamma R) are members of the Ig superfamily that function in the activation or inhibition of immune responses. Three classes of human Fc gamma Rs: RI (CD64), RII (CD32), and RIII (CD16), which generate multiple isoforms, are recognized (1-3). The activating-type receptor either has or associates non-covalently with an accessory subunit (FcR gamma or zeta chain) that has an immunoreceptor tyrosine-based activation motif (ITAM) in its cytoplasmic domain. In contrast, the inhibitory receptor (Fc gamma RIIB) has a built-in immunoreceptor tyrosine-based inhibitory motif (ITIM) in its own cytoplasmic domain. Fc gamma RI is a high-affinity receptor that binds monomeric IgG, both Fc gamma RII and RIII are low-affinity receptors that bind aggregated or immune complexed IgG (IC). Three genes for human Fc gamma RII (A, B, and C) and one for mouse (Fc gamma RIIB), encoding type I transmembrane proteins with ITAM motifs (Fc gamma RII A and C) or ITIM motifs (Fc gamma RIIB) in their cytoplasmic domains, have been identified (1-3). The extracellular domain of human Fc gamma RIIA shares approximately 90% amino acid sequence homology with human Fc gamma RIIB and Fc gamma RIIC. Fc gamma RIIA is expressed on many immune cell types (macrophage, neutrophil, eosinophils, platelets, dendritic cells and Langerhan cells) where inhibitory ITIM-bearing receptors may also be coexpressed and co-engaged by specific ligands. Signaling through Fc gamma RIIA results in the initiation of inflammatory responses (cytolysis, phagocytosis, degranulation and cytokine production) that can be modulated by signals from the inhibitory receptors. The strength of the signal is dependent on the ratio of expression of the activating and inhibitory receptors. Besides IC, Fc gamma RII A also binds C-reactive protein (CRP) (4, 5). Two allelic variants (R167 and H167) of Fc gamma RIIA that differ in their ability to ligate human IgG2 or CRP exist. The H167 allele has been found to have a protective effect against lupus nephritis.

References

  1. van de Winkel, J. and P. Capes (1993) Immunol. Today 14:215.
  2. Ravetch, J.V. and S. Bolland (2001) Annu. Rev. Immunol. 19:275.
  3. Takai, T. (2002) Nature Rev. Immunol. 2:580.
  4. Chi, M. et al. (2002) J. Immunol. 168:1413.
  5. Zuniga, R. et al. (2003) Arthritis Rheum. 48:460.

Long Name

Fc gamma Receptor II A

Alternate Names

CD32a, FCGR2A, FcgRIIA, FCRIIA

Entrez Gene IDs

2212 (Human); 14130 (Mouse); 116591 (Rat); 102143568 (Cynomolgus Monkey)

Gene Symbol

FCGR2A

UniProt

Additional Fc gamma RIIA/CD32a Products

Product Documents for Recombinant Human Fc gamma RIIA His Alexa Fluor® 647 Protein

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human Fc gamma RIIA His Alexa Fluor® 647 Protein


This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.

For research use only
