Recombinant Human IL-18 BPa Fc Chimera Avi-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI119

Biotinylated
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AVI119-050

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

CHO

Accession #

Structure / Form

Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human IL-18 BPa protein
Human IL‑18 BPa
(Thr31-Gly194)
Accession # O95998.2
IEGRMD Human IgG1
(Pro100-Lys330)
Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Thr31

Predicted Molecular Mass

46 kDa

SDS-PAGE

65-76 kDa and 91-101 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
In a Human IL‑18/IL‑1F4 Antibody (Catalog # MAB91244) coated plate, Biotinylated Recombinant Human IL‑18 BPa Fc Chimera Avi-tag protein binds to Recombinant Human IL‑18/IL‑1F4  (Catalog # 9124-IL) with an ED50 of 1.00-6.00 ng/mL.

Scientific Data Images for Recombinant Human IL-18 BPa Fc Chimera Avi-tag Protein, CF

Biotinylated Recombinant Human IL‑18 BPa Fc Chimera Avi-tag Protein Binding Activity.

In a Human IL‑18/IL‑1F4 Antibody (MAB91244) coated plate, Biotinylated Recombinant Human IL‑18 BPa Fc Chimera Avi-tag protein (Catalog # AVI119) binds to Recombinant Human IL‑18/IL‑1F4 (9124-IL) with an ED50 of 1.00-6.00 ng/mL

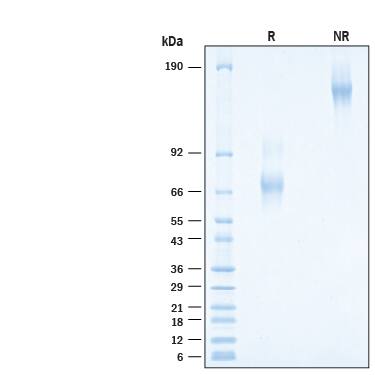

Biotinylated Recombinant Human IL‑18 BPa Fc Chimera Avi-tag Protein SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human IL‑18 BPa Fc Chimera Avi-tag Protein (Catalog # AVI119) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 65 - 76 kDa & 91-101 kDa and 130-155 kDa & 180 - 200 kDa respectively.

Formulation, Preparation and Storage

AVI119
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: IL-18 BPa

Interleukin 18 binding protein (IL-18 BP) is a secreted glycoprotein, which functions as an IL-18 antagonist by binding to IL-18 and blocking its biological activity. IL‑18 BP bears no amino acid sequence homology to the membrane-associated IL-18 and IL-1 receptor proteins. The gene for human IL-18 BP has been localized to chromosome 11q13. It encodes for at least four isoforms by alternative splicing. The IL-18 BP isoforms a and c each contain one immunoglobulin (Ig)-like C2-type domain while isoforms b and d lack a complete Ig domain. The complete Ig domain has been shown to be essential to the binding and neutralizing properties of the binding proteins. Two isoforms of mouse IL18 BP (c and d) containing the complete Ig domain have also been isolated and shown to neutralize IL-18 bioactivity. Human and mouse IL-18 BPs share approximately 61% amino acid sequence identity. Several poxviruses also encode proteins with sequence similarity to the human and mouse IL-18 BP. Viral IL-18 BPs have been shown to bind and inhibit IL-18 responses and may be involved in modulating host immune responses. The expression of IL-18 BP is markedly up-regulated by IFN-gamma, suggesting that IL-18 activity is modulated by a negative feedback mechanism mediated by IL-18 BP. Our Avi-tag Biotinylated human IL-18 BPa Fc Chimera features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References

  1. Mühl, H. et al. (2000) Biochem. Biophys. Res. Commun. 267:960.
  2. Kim, S-H. et al. (2000) Proc. Nat. Acad. Sci. USA 97:1190.
  3. Calderara, S. et al. (2001) Virology 279:22.

Long Name

Interleukin 18 Binding Protein Isoform a

Alternate Names

IL18 BPa, IL18BP

Entrez Gene IDs

10068 (Human); 84388 (Rat); 107126419 (Cynomolgus Monkey)

Gene Symbol

IL18BP

UniProt

Additional IL-18 BPa Products

Product Documents for Recombinant Human IL-18 BPa Fc Chimera Avi-tag Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.
