Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI10191

Biotinylated
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AVI10191-050
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

CHO

Accession #

CAA42006.1

Structure / Form

Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

View all Siglec-2/CD22 Proteins and Enzymes »

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human Siglec-2/CD22 protein
Human Siglec-2/CD22
(Asp20-Arg687)
Accession # CAA42006.1		 GGGSGGGSGGGS HHHHHHH Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

79 kDa

Predicted Molecular Mass

79 kDa

SDS-PAGE

92-118 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
Biotinylated Recombinant Human Siglec-2/CD22 His-tag Avi-tag (Catalog # AVI10191) binds to Human Siglec-2/CD22 Antibody (Catalog # MAB19681) with an ED50 of 3.00-30.0 ng/mL.

Measured by the ability of the immobilized protein to support the adhesion of human red blood cells. Kelm, S. et al. (1994) Current Biology 4:965.
The ED50 for this effect is 0.1-0.8 μg/mL.

Scientific Data Images for Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein, CF

Biotinylated Recombinant Human Siglec‑2/CD22 His-tag Avi-tag Protein Binding Activity.

In a functional ELISA, Biotinylated Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein (Catalog # AVI10191) binds to Human Siglec-2/CD22 Antibody (MAB19681) with an ED50 of 3.00-30.0 ng/mL.

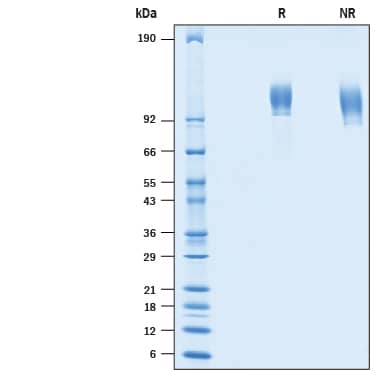

Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein SDS-PAGE

Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein SDS-PAGE

2 μg/lane of Biotinylated Recombinant Human Siglec-2/CD22 His-tag Avi-tag (AVI10191) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 92-118 kDa.

Formulation, Preparation and Storage

AVI10191
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Siglec-2/CD22

Siglecs are type I transmembrane proteins that belong to the immunoglobulin (Ig) superfamily and function as mammalian lectins (1). They are characterized by an extracellular domain consisting of various numbers of Ig domains with a conserved N-terminal V-set Ig ligand-binding domain. This binds species-specific sialic acid motifs on protein and lipid scaffolds to regulate intracellular signaling pathways (2). The cytoplasmic tail has signaling motifs, in most cases immunoreceptor tyrosine-based inhibitory motif (ITIM) (3). Human Siglec-2, also known as B cell antigen CD22 or B lymphocyte cell adhesion molecule (BL-CAM), is a B cell restricted glycoprotein that is expressed in the cytoplasm of progenitor B and pre B cells and on the surface of mature B cells. Two distinct human Siglec-2/CD22 cDNAs that arise from differential RNA processing of the same gene have been isolated. The predominant Siglec-2/CD22 beta encodes an 847 amino acid (aa) polypeptide with a hydrophobic signal peptide, an N-terminal Ig-like V type domain, six Ig-like C2 type domains, a transmembrane region and a cytoplasmic tail with 4 immunoreceptor tyrosine-based inhibition motifs (ITIMs) (4). The variant Siglec-2/CD22 alpha encodes a 647 aa polypeptide missing two Ig-like C2 type domains and has a truncated (23 aa) cytoplasmic tail (5). Mature human Siglec-2 beta consists of a 668 amino acid (aa) extracellular domain (ECD), a 19 aa transmembrane segment, and a 141 aa cytoplasmic domain. Within the ECD, human Siglec-2 shares 59% and 58% aa sequence identity with the mouse and rat Siglec-2, respectively. Siglec-2/CD22 is an adhesion molecule that preferentially binds alpha 2,6- linked sialic acid on the same (cis) or adjacent (trans) cells. Interaction of CD22 with trans ligands on opposing cells was found to be favored over the binding of ligands in cis (6). Besides its role as an adhesion molecule, Siglec-2/CD22 is a coreceptor that physically interacts with B-cell receptor (BCR) and is rapidly phosphorylated upon BCR ligation. It negatively regulates BCR signals by recruiting tyrosine phosphatase SHP-1 to its ITIMs. Phosphorylated Siglec-2/CD22 can also interact with other intracellular effector proteins such as Syk, PLC gamma, PI3 kinase and Grb-2, suggesting it may play a role in positive signaling (7-9). Another function of CD22 is that it mediates the anti-phagocytic effect of alpha2,6-linked sialic acid, and inhibition of CD22 promotes the clearance of myelin debris, amyloid-beta oligomers and alpha-synuclein fibrils in vivo (10). CD22 also plays a role in autoimmunity and has great potential for CD22-based immunotherapeutics for the treatment of autoimmune diseases such as systemic lupus erythematosus (SLE) (11).

References

  1. Crocker, P.R. et al. (2007) Nat. Rev. Immunol. 7:255.
  2. Poe, J.C. and T.F. Tedder (2012) Trends Immunol. 33:413.
  3. Meyer, S.J. et al. (2018) Front. Immunol. 9:2820.
  4. Wilson, G.L et al. (1991) J. Exp. Med. 173:137.
  5. Stamenkovic, I. and B. Seed (1990) Nature 345:74.
  6. Collins, B.E. et al. (2004) Proc. Natl. Acad. Sci. 101:6104.
  7. Crocker, P.R. and A. Varki (2001) Immunology 103:137.
  8. Ravetch, J.V. and L.L. Lanier (2000) Science 290:84.
  9. Wienands, Y.J. et al. (1999) J. Biol. Chem. 274:18769.
  10. Pluvinage, J.V. et al. (2019) Nature. 5568:7751.
  11. Clark, E.A. et al. (2018) Front. Immunol. 9:2235.

Long Name

Sialic Acid Binding Ig-like Lectin 2

Alternate Names

BL-CAM, CD22, Siglec2

Entrez Gene IDs

933 (Human); 12483 (Mouse); 308501 (Rat); 102130968 (Cynomolgus Monkey)

Gene Symbol

CD22

UniProt

CAA42006.1

Additional Siglec-2/CD22 Products

Product Documents for Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein, CF

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Recombinant Human Siglec-2/CD22 His-tag Avi-tag Protein, CF

For research use only
