Recombinant Mouse B7-H3 Fc Chimera Protein, CF

R&D Systems, part of Bio-Techne | Catalog # 10946-B3

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
10946-B3-050

Key Product Details

Source

NS0

Accession #

Structure / Form

Disulfide-linked homodimer

Conjugate

Unconjugated

Applications

Bioactivity

Product Specifications

Source

Mouse myeloma cell line, NS0-derived mouse B7-H3 protein
Mouse B7-H3
(Val29-Phe244)
Accession # Q8VE98.1
IEGRMD Human IgG1
(Pro100-Lys330)
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Val29

Predicted Molecular Mass

50 kDa

SDS-PAGE

65-73 kDa, under reducing conditions

Activity

Measured by its ability to inhibit Mouse CD3 epsilon Antibody induced proliferation of Mouse T cells. The ED50 for this effect is 0.06-0.72 µg/mL.

Scientific Data Images for Recombinant Mouse B7-H3 Fc Chimera Protein, CF

Recombinant Mouse B7‑H3 Fc Chimera Protein Bioactivity.

Recombinant Mouse B7-H3 Fc Chimera (Catalog # 10946-B3) inhibits Mouse CD3 epsilon Antibody (Clone # 145-2C11, MAB484) induced proliferation of Mouse T cells. The ED50 for this effect is 0.06-0.72 µg/mL.

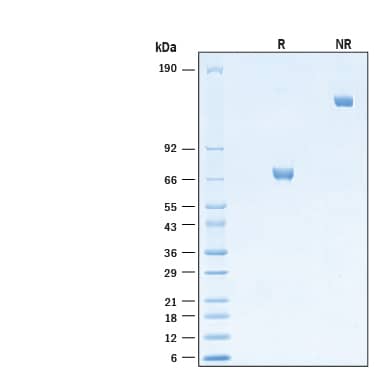

Recombinant Mouse B7‑H3 Fc Chimera Protein SDS-PAGE.

2 μg/lane of Recombinant Mouse B7‑H3 Fc Chimera Protein (Catalog # 10946-B3) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 65-73 kDa and 130-150 kDa, respectively.

Formulation, Preparation and Storage

10946-B3
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: B7-H3

T cells require a signal induced by the engagement of the T cell receptor and a “costimulatory” signal(s) through distinct T cell surface molecules for optimal T cell expansion and activation. Members of the B7 superfamily of counter-receptors were identified by their ability to interact with costimulatory molecules found on the surface of T cells. Members of the B7 superfamily include B7-1 (CD80), B7-2 (CD86), B7-H1 (PD-L1), B7-H2 (B7RP-1), B7-H3, and PD-L2 (1). B7-H3 is expressed at very high levels in immature dendritic cells at moderate levels on mature dendritic cells, LPS stimulated immature dendritic cells and LPS stimulated monocytes, and at low levels on resting monocytes. B7-H3 binds to activated T cells via an as-of-yet identified receptor. B7-H3 co-stimulates proliferation of T cells and interferon-gamma (IFN-gamma) production and enhances the induction of cytotoxic T cells. B7-H3 shares 20 - 27% amino acid (aa) identity with other B7 family members (2). Murine B7-H3 is a 259 aa protein containing an extracellular domain, a transmembrane domain and a cytoplasmic domain. Mouse and human B7-H3 share 87% aa identity (3).

References

  1. Coyle, A.J. and J.-C. Gutierrez-Ramos (2001) Nature Immunol. 2:203.
  2. Chapoval, A.I. et al. (2001) Nature Immunol. 2:269.
  3. Sun, M. et al. (2002) J. Immunol. 168:6294.

Long Name

B7 Homolog 3

Alternate Names

B7H3, CD276

Entrez Gene IDs

80381 (Human); 102657 (Mouse); 315716 (Rat); 102131295 (Cynomolgus Monkey)

Gene Symbol

CD276

UniProt
