Non-Human Primate IL-4 Cartridge

Name: Non-Human Primate IL-4 Cartridge
Brand: ProteinSimple
SKU: SPCKB-NP-011459

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-NP-011459

Simple Plex Non-Human Primate IL-4 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (25 uL)
Sensitivity:	0.16 pg/mL
Assay Range:	0.53 - 2,020 pg/mL (Cell Culture Supernates, Serum)
Non-Human Primate IL-4 Cartridge Summary:	Simple Plex assay for the detection of Non-Human Primate Interleukin 4 (IL-4) in cell culture supernatant (CCS) and serum.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Non-Human Primate IL-4 Cartridge

Technical Data
Citations

Product Specifications for Non-Human Primate IL-4 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Non-human Primate
Specificity	Natural and recombinant IL-4.
Cross-reactivity	Cross-reactivity observed with 1 or more available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	46	46
Mean (pg/mL)	15.9	621	13.5	631
Standard Deviation	1.2	60.8	1.55	77.1
CV%	7.5	9.8	11.5	12.2

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Serum (n=4)	79	75-84

Linearity

Samples containing and/or spiked with high concentrations of IL-4 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Non-Human Primate IL-4 Cartridge

	Non-Human Primate IL-4 Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-4

IL-4 (Interleukin-4) is a cytokine that is primarily expressed by Th2-biased CD4+ T cells, mast cells, basophils, and eosinophils. It promotes cell proliferation, survival, and immunoglobulin class switch to IgG4 and IgE in human B cells, acquisition of the Th2 phenotype by naïve CD4+ T cells, priming and chemotaxis of mast cells, eosinophils, and basophils, and the proliferation and activation of epithelial cells. IL-4 plays a dominant role in the development of allergic inflammation and asthma. The type I receptor for IL-4, which is expressed on hematopoietic cells, is a heterodimer of the ligand binding IL-4 R? and the common ? chain (a shared subunit of the receptors for IL-2, -7, -9, -15, and -21). The type II receptor on nonhematopoietic cells consists of IL-4 R? and IL-13 R?1. The type II receptor also transduces IL-13 mediated signals.

Item	Value
Long Name	Interleukin 4
Entrez Gene IDs	3565 (Human); 16189 (Mouse); 287287 (Rat); 397225 (Porcine); 280824 (Bovine); 403785 (Canine); 574281 (Primate); 100302454 (Rabbit)
Alternate Names	B cell growth factor 1, B-cell stimulatory factor 1, BCDF, BCGF-1, BCGF1, BSF-1, BSF1, IL-4, IL-4B_cell stimulatory factor 1, IL4, IL4E12, Lymphocyte stimulatory factor 1, MGC79402, binetrakin, interleukin 4, interleukin-4, pitrakinra

Compatible Instruments

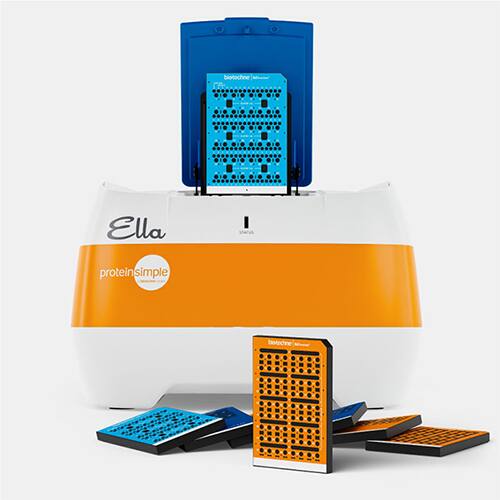

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Non-Human Primate IL-4 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
