Simple Plex Human FGF-19 Cartridge

Name: Simple Plex Human FGF-19 Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000850

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000850

Simple Plex Human FGF-19 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	0.61 pg/mL
Assay Range:	4.3 - 16,400 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Human FGF-19 Cartridge Summary:	Simple Plex assay for the detection of human Fibroblast Growth Factor 19 (FGF-19) in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human FGF-19 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human FGF-19 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human FGF-19.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	23	23
Mean (pg/mL)	96.4	4673	99	5398
Standard Deviation	6.83	397	8.11	628
CV%	7.1	8.5	8.2	11.6

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Supernates (n=3)	100	97-103

Linearity

Samples containing and/or spiked with high concentrations of human FGF-19 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human FGF-19 Cartridge

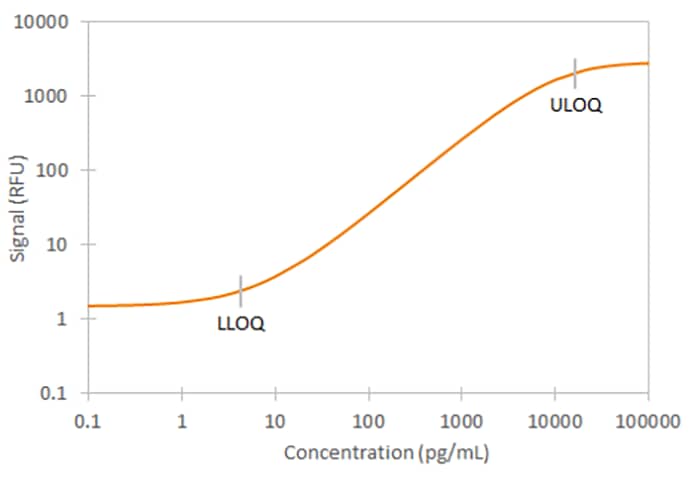

	Human FGF-19 Simple Plex Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: FGF-19

FGF-19 (Fibroblast Growth Factor-19) is a secreted heparin-binding protein in the endocrine subfamily of FGFs that also includes FGF-21 and FGF-23. It is produced by epithelial cells of the ileal intestine in response to bile acids and signals through a receptor complex of FGF R4 and Klotho-beta in the liver. FGF-19 suppresses bile acid synthesis and enhances hepatic protein and glycogen synthesis. Dysregulalted FGF-19 activity is associated with the development of hypercholesterolemia, gall stones, bile acid induced diarrhoea (BAD), hepatocellular cancer, colon cancer, and metabolic syndrome.

Item	Value
Long Name	Fibroblast Growth Factor 19
Entrez Gene IDs	9965 (Human)
Alternate Names	FGF-19, FGF19, fibroblast growth factor 19

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human FGF-19 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
