Simple Plex Mouse GM-CSF Cartridge

Name: Simple Plex Mouse GM-CSF Cartridge
Brand: ProteinSimple
SKU: SPCKB-MP-003559

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-MP-003559

Simple Plex Mouse GM-CSF assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	0.56 pg/mL
Assay Range:	0.63 - 6,040 pg/mL (Bronchoalveolar Lavage Fluid, Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Mouse GM-CSF Cartridge Summary:	Simple Plex assay for the detection of mouse GM-CSF in serum, plasma (EDTA/Heparin), and bronchoalveolar lavage fluid (BALF)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Mouse GM-CSF Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Mouse GM-CSF Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Mouse
Specificity	Natural and recombinant mouse GM-CSF.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Bronchoalveolar Lavage Fluid, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	99	98
Mean (pg/mL)	38.5	1739	38	1557
Standard Deviation	1.88	40.7	2.11	111
CV%	4.9	2.3	5.6	7.1

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	106	101-110
Heparin Plasma (n=4)	103	93-110
Serum (n=4)	99	97-106

Linearity

Samples containing and/or spiked with high concentrations of mouse GM-CSF were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Mouse GM-CSF Cartridge

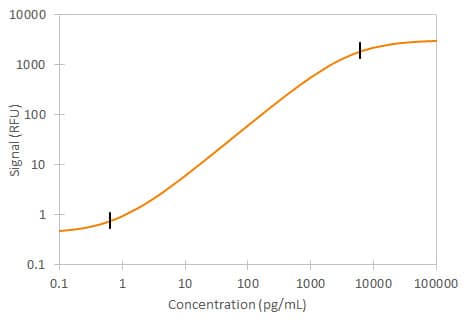

	Mouse GM-CSF Simple Plex Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: GM-CSF

GM-CSF (Granulocyte-Macrophage Colony Stimulating Factor) induces the development of monocytes, neutrophils, eosinophils, and myeloid and dermal dendritic cells. It also acts as a neutrophil and dendritic cell chemoattractant. GM-CSF promotes Th1 and Th17 cell mediated autoimmune inflammation as well as the inflammatory activation of dendritic cells, microglia, alveolar macrophages, and eosinophils. In addition, it cooperates with G-CSF in promoting tumor cell proliferation and invasion. GM-CSF signals through a receptor complex composed of GM-CSF R alpha and the Common beta Chain (beta c) with Syndecan-2 as a potential co-receptor. The beta c subunit is shared by the receptor complexes for IL-3 and IL-5.

Item	Value
Long Name	Granulocyte Macrophage Growth Factor
Entrez Gene IDs	1437 (Human); 12981 (Mouse); 116630 (Rat); 397208 (Porcine); 403923 (Canine); 493805 (Feline)
Alternate Names	CSF, CSF-2, CSF2, Colony-stimulating factor, GM-CSF, GMCSF, GMCSFgranulocyte-macrophage colony-stimulating factor, MGC131935, MGC138897, Molgramostim, Sargramostim, colony stimulating factor 2 (granulocyte-macrophage), granulocyte-macrophage colony stimulating factor, molgramostin

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Mouse GM-CSF Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
