Simple Plex Mouse IL-4 Cartridge

Name: Simple Plex Mouse IL-4 Cartridge
Brand: ProteinSimple
SKU: SPCKB-MP-009768

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-MP-009768

Product Datasheet / COA

Simple Plex Mouse IL-4 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Bronchoalveolar Lavage Fluid (25 uL), Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL)
Sensitivity:	0.696 pg/mL
Assay Range:	2.13 - 3,262 pg/mL (Bronchoalveolar Lavage Fluid, Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Mouse IL-4 Cartridge Summary:	Simple Plex assay for the detection of mouse Interleukin 4 (IL-4) in cell culture supernatant (CCS), serum, plasma (EDTA/Heparin), and bronchoalveolar fluid (BALF).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Mouse IL-4 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Mouse IL-4 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Mouse
Specificity	Natural and recombinant mouse IL-4.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Bronchoalveolar Lavage Fluid, Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	39	39
Mean (pg/mL)	23.7	1336	22.9	1259
Standard Deviation	0.548	55.9	1.61	81.8
CV%	2.3	4.2	7	6.5

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Bronchoalveolar Lavage Fluid (n=3)	97	93-101
Cell Culture Media (n=2)	106	105-107
EDTA Plasma (n=4)	92	89-98
Heparin Plasma (n=4)	78	76-81
Serum (n=4)	80	75-84

Linearity

Samples containing and/or spiked with high concentrations of mouse IL-4 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Mouse IL-4 Cartridge

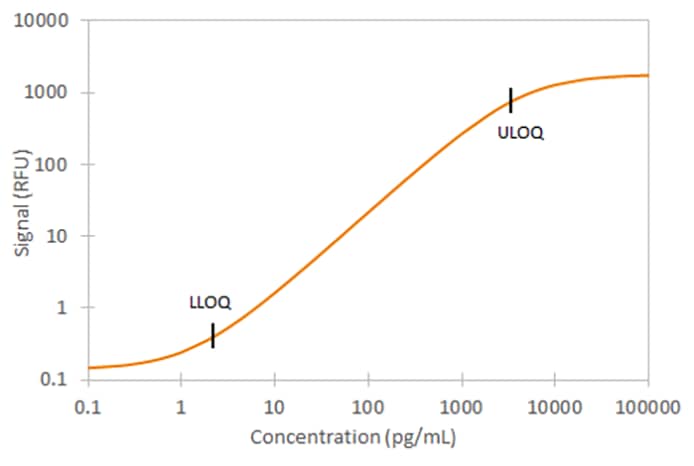

	Mouse IL-4 Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-4

IL-4 (Interleukin-4) is a cytokine that is primarily expressed by Th2-biased CD4+ T cells, mast cells, basophils, and eosinophils. It promotes cell proliferation, survival, and immunoglobulin class switch to IgG4 and IgE in human B cells, acquisition of the Th2 phenotype by naïve CD4+ T cells, priming and chemotaxis of mast cells, eosinophils, and basophils, and the proliferation and activation of epithelial cells. IL-4 plays a dominant role in the development of allergic inflammation and asthma. The type I receptor for IL-4, which is expressed on hematopoietic cells, is a heterodimer of the ligand binding IL-4 R? and the common ? chain (a shared subunit of the receptors for IL-2, -7, -9, -15, and -21). The type II receptor on nonhematopoietic cells consists of IL-4 R? and IL-13 R?1. The type II receptor also transduces IL-13 mediated signals.

Item	Value
Long Name	Interleukin 4
Entrez Gene IDs	3565 (Human); 16189 (Mouse); 287287 (Rat); 397225 (Porcine); 280824 (Bovine); 403785 (Canine); 574281 (Primate); 100302454 (Rabbit)
Alternate Names	B cell growth factor 1, B-cell stimulatory factor 1, BCDF, BCGF-1, BCGF1, BSF-1, BSF1, IL-4, IL-4B_cell stimulatory factor 1, IL4, IL4E12, Lymphocyte stimulatory factor 1, MGC79402, binetrakin, interleukin 4, interleukin-4, pitrakinra

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Mouse IL-4 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
