Simple Plex Mouse IL-7 Cartridge

Name: Simple Plex Mouse IL-7 Cartridge
Brand: ProteinSimple
SKU: SPCKB-MP-004018

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-MP-004018

Product Datasheet / COA

Simple Plex Mouse IL-7 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	2.1 pg/mL
Assay Range:	20.9 - 31,848 pg/mL (Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Mouse IL-7 Cartridge Summary:	Simple Plex assay for the detection of mouse IL-7 in serum and plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Mouse IL-7 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Mouse IL-7 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Mouse
Specificity	Natural and recombinant mouse IL-7.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	Interference observed with 1 or more available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	91	88
Mean (pg/mL)	289	14906	202	9468
Standard Deviation	13.1	567	19.8	953
CV%	4.5	3.8	9.8	10.1

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	110	98-120
Heparin Plasma (n=4)	117	115-120
Serum (n=4)	113	109-116

Linearity

Samples containing and/or spiked with high concentrations of mouse IL-7 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Mouse IL-7 Cartridge

	Mouse IL-7 Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-7

IL-7 (Interleukin-7) is a cytokine that plays important roles in lymphocyte differentiation, proliferation, and survival. IL-7 is produced by stromal epithelial cells of the thymus, bone marrow, and intestines. It signals through a receptor complex composed of IL-7 R alpha/CD127 and the Common gamma Chain. gamma c is also a subunit of the receptors for IL-2, -4, -9, -15, and -21. IL-7 contributes to the maintenance of all naïve and memory T cells. It is required for optimal T cell-dendritic cell interaction. In mouse, IL-7 activation of IL-7 R alpha is critical for both T cell and B cell lineage development, while in humans, it is required for T cell but not for B cell development.

Item	Value
Long Name	Interleukin 7
Entrez Gene IDs	3574 (Human); 16196 (Mouse); 25647 (Rat)
Alternate Names	IL-7, IL-7interleukin-7, IL7, Lymphopoietin-1, PBGF, interleukin 7

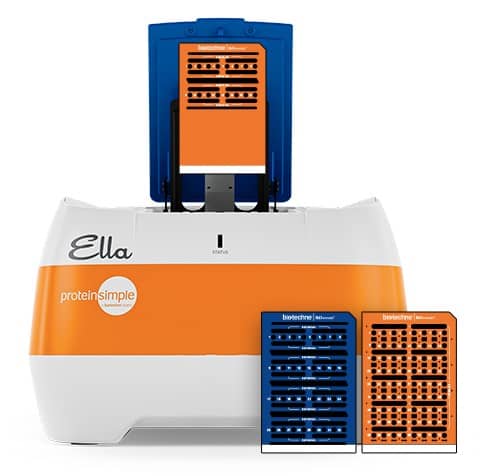

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.
