Simple Plex Mouse/Rat VEGF-A Cartridge

Name: Simple Plex Mouse/Rat VEGF-A Cartridge
Brand: ProteinSimple
SKU: SPCKB-MP-006691

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-MP-006691

Simple Plex Mouse/Rat VEGF assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL)
Sensitivity:	0.5 pg/mL
Assay Range:	0.91 - 3,478 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Mouse/Rat VEGF-A Cartridge Summary:	Simple Plex assay for the detection of mouse and rat VEGF-A in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Mouse/Rat VEGF-A Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Mouse/Rat VEGF-A Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Mouse, Rat
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	Interference observed with 1 or more available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	54	55
Mean (pg/mL)	24.6	1016	21.8	985
Standard Deviation	1.09	60.3	1.97	78.9
CV%	4.4	5.9	9	8

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Mouse EDTA Plasma (n=4)	96	94-100
Mouse Heparin Plasma (n=4)	91	89-93
Mouse Serum (n=4)	82	79-83
Rat EDTA Plasma (n=4)	92	88-95
Rat Heparin Plasma (n=4)	87	81-91
Rat Serum (n=4)	91	87-97

Linearity

Samples containing and/or spiked with high concentrations of mouse/rat VEGF-A were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Mouse/Rat VEGF-A Cartridge

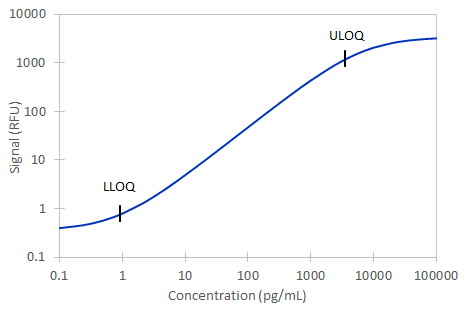

	Mouse/Rat VEGF-A Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: VEGF

VEGF (Vascular endothelial growth factor) is a potent mediator of both angiogenesis and vasculogenesis in the fetus and adult. It is required for regulating the proliferation, migration, and survival of embryonic endothelial cells and during wound healing and the female reproductive cycle in adults. Pathologically, it is involved in tumor development and tumor vascular leakage. VEGF binds to VEGF R1/Flt-1, VEGF R2/Flk-1/KDR, and Neuropilin-1. Multiple forms of VEGF are generated by alternative splicing and proteolysis.

Item	Value
Long Name	Vascular Endothelial Growth Factor
Entrez Gene IDs	7422 (Human); 22339 (Mouse); 83785 (Rat); 281572 (Bovine); 403802 (Canine); 493845 (Feline); 30682 (Zebrafish)
Alternate Names	MVCD1, VAS, VEGF, VEGF-A, VEGFA, VEGFMGC70609, VPF, VPFvascular endothelial growth factor, Vascular permeability factor, Vasculotropin, vascular endothelial growth factor A

Compatible Instruments

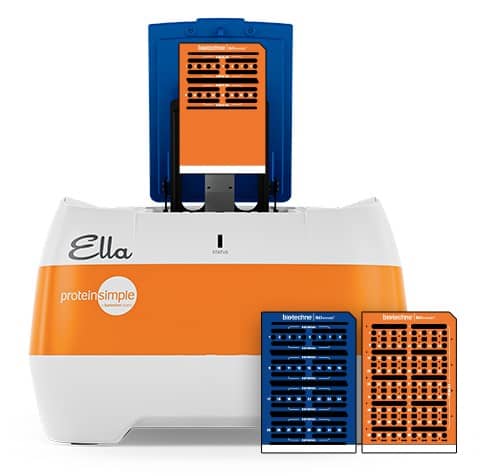

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Mouse/Rat VEGF-A Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
