Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge

Name: Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge
Brand: ProteinSimple
SKU: SPCKB-RP-000548

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-RP-000548

Simple Plex Rat TIM-1/KIM-1/HAVCR assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Rat Serum (10 uL), Rat EDTA Plasma (10 uL), Rat Urine (10 uL)
Sensitivity:	2.89 pg/mL
Assay Range:	7.06 - 10,770 pg/mL (Cell Culture Supernates, Rat Serum, Rat EDTA Plasma, Rat Urine)
Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge Summary:	Simple Plex assay for the detection of rat T Cell Immunoglobulin Mucin (TIM-1) in serum, EDTA plasma, and urine.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Rat
Specificity	Natural and recombinant rat TIM-1.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Rat Serum, Rat EDTA Plasma, Rat Urine

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	21	19
Mean (pg/mL)	53.5	2476	50.9	2593
Standard Deviation	2.8	176	4.57	214
CV%	5.2	7.1	9	8.3

Recovery

Sample Type	Average % Recovery	Range %
Rat EDTA Plasma (n=4)	102	94-113
Rat Serum (n=4)	103	94-111
Rat Urine (n=4)	110	103-115

Linearity

Samples containing and/or spiked with high concentrations of rat TIM-1 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge

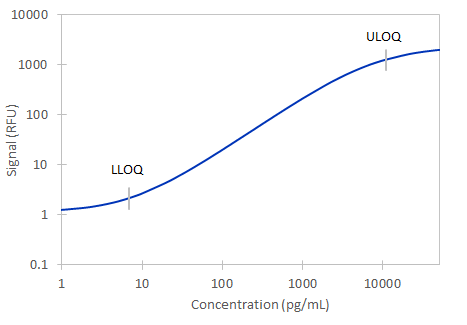

	Rat TIM-1/KIM-1/HAVCR Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TIM-1/KIM-1/HAVCR

TIM-1 (T cell immunoglobulin and mucin domain 1), also known as KIM-1 and HAVcr1, is expressed on many immune cell types and epithelial cells. It binds to phosphatidylserine (PS), LMIR5/CD300b, TIM-1 (homophilic), TIM-4, IgA, and the glycoproteins of a number of enveloped viruses. Its interaction with PS enables TIM-1 to mediate the phagocytosis and clearance of apoptotic cells. TIM-1 signaling costimulates T cell activation and enhances Th2 cytokine production. TIM-1 serves as a cellular entry receptor for hepatitis A virus, Ebolavirus and Marburgvirus. Polymorphisms are associated with susceptibility to atopy, autoimmunity, and severe hepatitis A virus infection in humans. A soluble form of TIM-1 is elevated in the urine during nephropathy.

Item	Value
Long Name	T Cell Immunoglobulin Mucin-1
Entrez Gene IDs	26762 (Human); 171283 (Mouse); 286934 (Rat); 102141332 (Cynomolgus Monkey)
Alternate Names	CD365, HAVCR-1, HAVCR1, HAVCRT cell immunoglobin domain and mucin domain protein 1, KIM-1, KIM1, Kidney injury molecule 1, T-cell immunoglobulin and mucin domain-containing protein 1, TIM-1, TIM-1TIM, TIM1, TIM1TIMD-1, TIMD1T-cell membrane protein 1, hepatitis A virus cellular receptor 1

Compatible Instruments

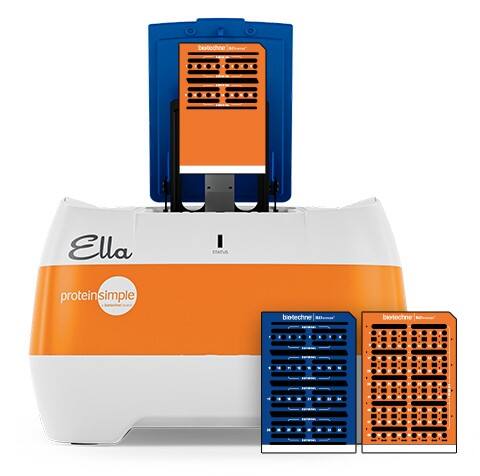

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Rat TIM-1/KIM-1/HAVCR Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
