ATM Antibody

Flow Cytometry: ATM Antibody [NB100-104]

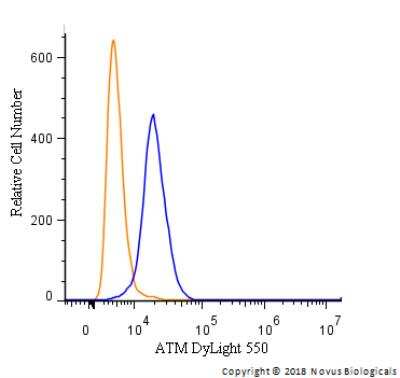

Flow Cytometry: ATM Antibody [NB100-104] - An intracellular stain was performed on HeLa cells with Dylight 550-conjugated ATM Antibody [NB100-104R] (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to DyLight 550.

Western Blot: ATM Antibody [NB100-104]

Western Blot: ATM Antibody [NB100-104] - Analysis of double strand break repair in MCF-7 monolayer and mammosphere populations. Expression of proteins involved in the NHEJ pathway of DSB repair in response to increasing doses of ionizing radiation. Lysates were prepared from unirradiated cells and from cells harvested one hour after exposure to 1 or 10-Gy 60Co I3-radiation and analyzed by immunoblotting with antibodies against several DSB repair proteins. Phospho-ATM and phospho-DNA-PKcs refer to phosphorylation of these proteins at Ser1981 and Ser2056, respectively. Actin served as a loading control. Image collected and cropped by Citeab from the following publication (Senescence evasion by MCF-7 human breast tumor-initiating cells. Breast Cancer Res (2010)) licensed under a CC-BY license.

Western Blot: ATM Antibody [NB100-104]

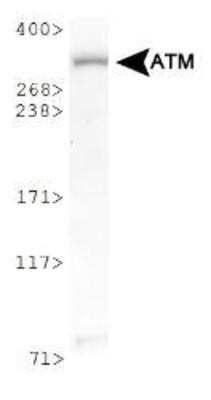

Western Blot: ATM Antibody [NB100-104] - Detection of ATM in Raji whole cell lysate using [NB100-104]. Observed molecular weight ~300 kDa. Theoretical molecular weight 351 kDa.

Immunocytochemistry/ Immunofluorescence: ATM Antibody [NB100-104]

Immunocytochemistry/Immunofluorescence: ATM Antibody [NB100-104] - HeLa cells were fixed for 10 minutes using 10% formalin and then permeabilized for 5 minutes using 1X TBS + 0.05% Triton X-100. Then cells were incubated with [NB100-104] at a 1:100 dilution overnight at 4C and detected with an anti-rabbit DyLight 488 (Green) at a 1:500 dilution. Alpha tubulin was used as a co-stain at a 1:1000 dilution and detected with an anti-mouse DyLight 550 (Red) at a 1:500 dilution. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective.

Flow Cytometry: ATM Antibody [NB100-104]

Flow Cytometry: ATM Antibody [NB100-104] - Analysis of PE conjugate of ATM Antibody [NB100-104PE]. An intracellular stain was performed on HeLa cells with ATM antibody [NB100-104PE] (blue) and a matched isotype control [NBP2-24893PE] (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin.

Flow Cytometry: ATM Antibody [NB100-104]

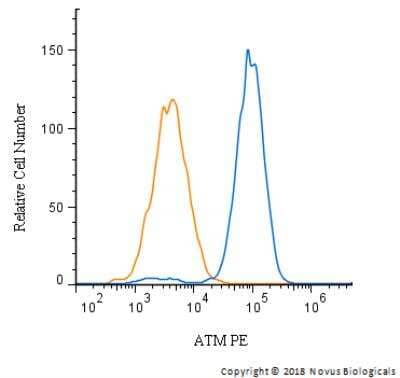

Flow Cytometry: ATM Antibody [NB100-104] - An intracellular stain was performed on HepG2 cells with PE-conjugated ATM antibody [NB100-104PE] (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeablized with 0.1% saponin. Cells were incubated in an antibody dilution of 5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Phycoerythrin.

Immunocytochemistry/ Immunofluorescence: ATM Antibody [NB100-104] -

Immunocytochemistry/ Immunofluorescence: ATM Antibody [NB100-104] - ATM is activated by spermidine in GM00637 cells.GM00637 cells with or without KU55933 pretreatment (a,b), & GM05849 cells (c) were exposed to 50 μM spermidine or CCCP, followed by immunofluorescence analyses of total & p-ATM on Ser-1981. The scale bar is 10 μm. Ratios of cells expressing p-ATM Ser-1981 to cells expressing total ATM were presented (d). 20–45 cells/condition from three experiments were collected. Values are mean ± SD, *p < 0.05 vs. control. Image collected & cropped by CiteAb from the following publication (https://www.nature.com/articles/srep24700), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Immunocytochemistry/ Immunofluorescence: ATM Antibody [NB100-104] -

Immunocytochemistry/ Immunofluorescence: ATM Antibody [NB100-104] - ATM is activated by spermidine in GM00637 cells.GM00637 cells with or without KU55933 pretreatment (a,b), & GM05849 cells (c) were exposed to 50 μM spermidine or CCCP, followed by immunofluorescence analyses of total & p-ATM on Ser-1981. The scale bar is 10 μm. Ratios of cells expressing p-ATM Ser-1981 to cells expressing total ATM were presented (d). 20–45 cells/condition from three experiments were collected. Values are mean ± SD, *p < 0.05 vs. control. Image collected & cropped by CiteAb from the following publication (https://www.nature.com/articles/srep24700), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ATM Antibody [NB100-104] -

Western Blot: ATM Antibody [NB100-104] - Depletion of SMARCAL1 induces DNA damage & checkpoint activation in iSML1 iPSCs. (A,B) The iSML1 iPSCs were cultured for 7 & 14 days in the presence of doxycycline (DOX) to induce SMARCAL1 downregulation & then immunostained. The graphs (top) show quantification of the number of gamma-H2AX-positive cells (A) or ATM-pSer1981-positive cells (B). Representative images from triplicate experiments are shown (bottom). (C) Immunoblot detection of the indicated DDR proteins in iSML1 iPSCs after 14 days of continuous treatment with DOX. Lamin B1 was used as the loading control. Data are mean±s.e.m. from three independent experiments. *P≤0.05, **P≤0.01, ***P≤0.001 (two-way ANOVA test). ns, not significant. Scale bars: 10 µm. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31515241), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Western Blot: ATM Antibody [NB100-104] -

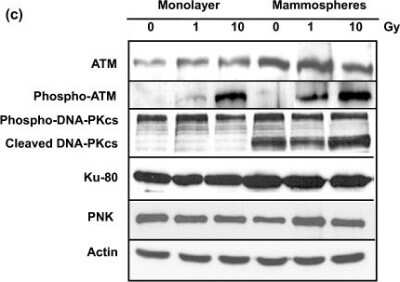

Western Blot: ATM Antibody [NB100-104] - Analysis of double strand break repair in MCF-7 monolayer & mammosphere populations. (a) Cells were exposed to 4 Gy 60Co gamma-radiation & the relative degree of double-strand breakage (DSB) was determined by the comet assay under neutral conditions immediately after exposure & at the times indicated after exposure. (b) The 'comets' (n of about 100) were categorized according to the NIH LISTSERV (Comet Assay Interest Group web site) in which type 1 comets display the least DNA damage & type 5 the most. The error bars represent the mean ± standard error of the mean in both panels. The comets of the unirradiated cells are labeled Cont. (c) Expression of proteins involved in the NHEJ pathway of DSB repair in response to increasing doses of ionizing radiation. Lysates were prepared from unirradiated cells & from cells harvested one hour after exposure to 1 or 10-Gy 60Co gamma-radiation & analyzed by immunoblotting with antibodies against several DSB repair proteins. Phospho-ATM & phospho-DNA-PKcs refer to phosphorylation of these proteins at Ser1981 & Ser2056, respectively. Actin served as a loading control. Image collected & cropped by CiteAb from the following publication (http://breast-cancer-research.biomedcentral.com/articles/10.1186/bcr2583), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
