Human/Mouse/Rat Jagged 1 APC-conjugated Antibody

R&D Systems, part of Bio-Techne | Catalog # FAB1277A

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
FAB1277A

Key Product Details

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry

Label

Allophycocyanin (Excitation = 620-650 nm, Emission = 660-670 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 188331

Product Specifications

Immunogen

NS0-derived recombinant human Jagged 1
Ser32-Asp296
Accession # P78504

Specificity

Detects human, mouse, and rat Jagged 1. In direct ELISAs, no cross‑reactivity with recombinant human Jagged 2 is observed. Stains human Jagged 1 transfectants but not the parental cell line or human Jagged 2 transfectants in flow cytometry.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human/Mouse/Rat Jagged 1 APC-conjugated Antibody

Detection of Jagged 1 antibody in K562 Human Cell Line antibody by Flow Cytometry.

Detection of Jagged 1 in K562 Human Cell Line by Flow Cytometry.

K562 human chronic myelogenous leukemia cell line was stained with Mouse Anti-Human/Mouse/Rat Jagged 1 APC-conjugated Monoclonal Antibody (Catalog # FAB1277A, filled histogram) or isotype control antibody (Catalog # IC0041A, open histogram). View our protocol for Staining Membrane-associated Proteins.

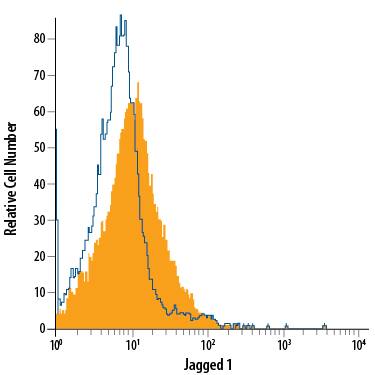

Detection of Jagged 1 antibody in bEnd.3 Mouse Cell Line antibody by Flow Cytometry.

Detection of Jagged 1 in bEnd.3 Mouse Cell Line by Flow Cytometry.

bEnd.3 mouse endothelioma cell line was stained with Mouse Anti-Human/Mouse/Rat Jagged 1 APC-conjugated Monoclonal Antibody (Catalog # FAB1277A, filled histogram) or isotype control antibody (Catalog # IC0041A, open histogram). View our protocol for Staining Membrane-associated Proteins.

Applications for Human/Mouse/Rat Jagged 1 APC-conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: K562 human chronic myelogenous leukemia cell line and bEnd.3 mouse endothelioma cell line
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: Jagged 1

Jagged 1 is a 180 kDa type I transmembrane glycoprotein and member of the Delta-Serrate-Lag-2 (DSL) family of ligands that activate LIN12/Notch proteins. Human Jagged 1 is synthesized as a 1218 amino acid (aa) precursor that contains a 33 aa signal sequence, a 1034 aa extracellular domain (ECD), a 26 aa transmembrane segment, and a 125 aa cytoplasmic region. The ECD contains a DSL domain (aa 185‑229), a cysteine-rich region, 15 EGF-like repeats, of which many bind calcium, and nine potential sites for N-linked glycosylation. Mature human Jagged 1 shares 97% and 96% aa identity with mature mouse and rat Jagged 1, respectively. Jagged 1 is widely expressed in adult and fetal tissues. Jagged-Notch signaling specifies cell fate, regulates pattern formation, defines boundaries between different cell types, and modulates cell proliferation and differentiation, especially during hematopoiesis, myogenesis, neurogenesis, and development of vasculature (1‑8). Mutations in human Jagged 1 are the cause of Alagille syndrome, an autosomal-dominant disorder characterized by intrahepatic cholestasis and abnormalities of heart, eye, vertebrae, as well as characteristic facial appearance (9, 10).

References

  1. Sainson, R.C. and A.L. Harris (2008) Angiogenesis 11:41.
  2. Cordle, J. et al. (2008) Nat. Struct. Mol. Biol. 15:849.
  3. Artavamis-Tsokanas, S. et al. (1999) Science 284:770.
  4. Lai, E.C. (2004) Development 131:965.
  5. Milner, L.A. et al. (1994) Blood 83:2057.
  6. Nyfeler, Y. et al. (2005) EMBO J. 24:3504
  7. Linheng, L. et al. (1998) Immunity 8:43.
  8. Iso, T. et al. (2003) Arterioscler. Thromb. Vasc. Biol. 23:543.
  9. Oda, T. et al. (1997) Nat. Genet. 16:235.
  10. Oda, T. et al. (1997) Genomics 43:376.

Alternate Names

CD339, JAG1

Entrez Gene IDs

182 (Human); 16449 (Mouse); 29146 (Rat)

Gene Symbol

JAG1

UniProt

Additional Jagged 1 Products

Product Documents for Human/Mouse/Rat Jagged 1 APC-conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human/Mouse/Rat Jagged 1 APC-conjugated Antibody

For research use only
