Human PKM1/2 Antibody

Name: Human PKM1/2 Antibody
Brand: R&D Systems
SKU: MAB72443

R&D Systems, part of Bio-Techne | Catalog # MAB72443

Submit a review

Product Datasheet / COA / SDS

100% Guarantee

Product Specifications
Scientific Data
Applications
Preparation & Storage
Background
Product Documents
Specific Notices

Key Product Details

Species Reactivity

Human

Applications

Immunocytochemistry, Western Blot

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG_2A Clone # 945103

View all PKM2 Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human PKM2
Ser2-Pro531
Accession # P14618-1

Specificity

Detects human PKM2 in direct ELISAs. Detects human PKM1/2 in Western blot.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG_2A

Scientific Data Images for Human PKM1/2 Antibody

PKM2 in HeLa Human Cell Line.

PKM2 was detected in immersion fixed HeLa human cervical epithelial carcinoma cell line using Mouse Anti-Human PKM1/2 Monoclonal Antibody (Catalog # MAB72443) at 25 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; NL007) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

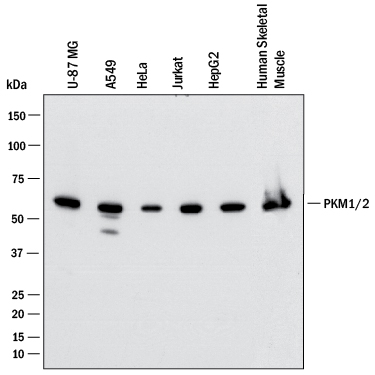

Detection of Human PKM2 by Western Blot.

Western blot shows lysates of U-87 MG human glioblastoma/astrocytoma cell line, A549 human lung carcinoma cell line, HeLa human cervical epithelial carcinoma cell line, Jurkat human acute T cell leukemia cell line, HepG2 human hepatocellular carcinoma cell line, human skeletal muscle. PVDF membrane was probed with 0.25 µg/mL of Mouse Anti-Human PKM2 Monoclonal Antibody (Catalog # MAB72443) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (HAF018). A specific band was detected for PKM2 at approximately 60 kDa (as indicated). This experiment was conducted under reducing conditions and using Western Blot Buffer Group 1.

Applications for Human PKM1/2 Antibody

Application

Recommended Usage

Immunocytochemistry

5-25 µg/mL
Sample: Immersion fixed HeLa human cervical epithelial carcinoma cell line

Western Blot

0.25-0.5 µg/mL
Sample: A549 human lung carcinoma cell line and HeLa human cervical epithelial carcinoma cell line, U‑87 MG human glioblastoma/astrocytoma cell line, Jurkat human acute T cell leukemia cell line, HepG2 human hepatocellular carcinoma cell line, human skeletal muscle

Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: PKM2

PKM2 (Pyruvate Kinase isoenzyme M2; also p58, OIP3, THBP1 and CTHBP) is a 58-60 kDa member of the PK family of enzymes. It is widely expressed, being found both intracellularly and in blood, and represents the more common splice variant of the PKM gene. PKM2 generates ATP and pyruvate by catalyzing the transfer of a phosphoryl group from PEP to ADP. Thus, when active, PKM2 promotes energy production and glycolysis. PKM2 exists as a marginally active monomer, with full activity achieved through homotetramerization. Notably, in tumor cells, select oncogenes appear to induce PKM2 homodimerization which limits PKM2 activity. PKM2 is known to be regulated by the binding of T3 and Fru-1,6-bisP. Human PKM2 is 531 amino acids (aa) in length. It contains a catalytic region (aa 43‑527) plus four utilized Ser/Thr and Tyr phosphorylation sites, respectively. PKM1 is another PKM gene splice variant that shows a 45 aa substitution for aa 389‑433 of PKM2. This variant shows limited expression (striated muscle) and hyperbolic Michaelis-Menten kinetics. There are additional isoform variants of PKM2 that show either a deletion of aa 59‑132, or a 67 aa substitution for aa 1‑82. Over aa 434‑531, human PKM2 shares 95% aa sequence identity with mouse PKM2.

Long Name

Pyruvate Kinase, Muscle

Alternate Names

CTHBP, OIP3, p58, PK2, PK3, TCB, THBP1, Tumor M2-PK

Entrez Gene IDs

5315 (Human); 18746 (Mouse); 25630 (Rat)

Gene Symbol

PKM

UniProt

P14618-1
