Detects human PLZF in direct ELISAs and Western blots. In direct ELISAs, no cross-reactivity with recombinant human (rh) ZBTB38, rhZNF24, rhZNF143, rhZNF206, rhZNF281, or rhZNF423 is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG_2A

Scientific Data Images for Human PLZF Antibody

Detection of Human PLZF by Western Blot.

Western blot shows lysates of HeLa human cervical epithelial carcinoma cell line, HEL 92.1.7 human erythroleukemic cell line, LNCaP human prostate cancer cell line, and 293T human embryonic kidney cell line. PVDF Membrane was probed with 1 µg/mL of Human PLZF Monoclonal Antibody (Catalog # MAB2944) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF007). A specific band was detected for PLZF at approximately 85 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

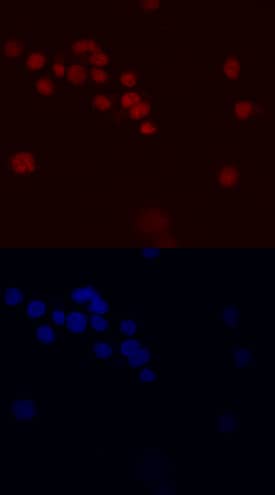

PLZF in HL‑60 Human Cell Line.

PLZF was detected in immersion fixed HL-60 human acute promyelocytic leukemia cell line using Human PLZF Monoclonal Antibody (Catalog # MAB2944) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red, upper panel; Catalog # NL007) and counterstained with DAPI (blue, lower panel). Specific staining was localized to nuclei. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.

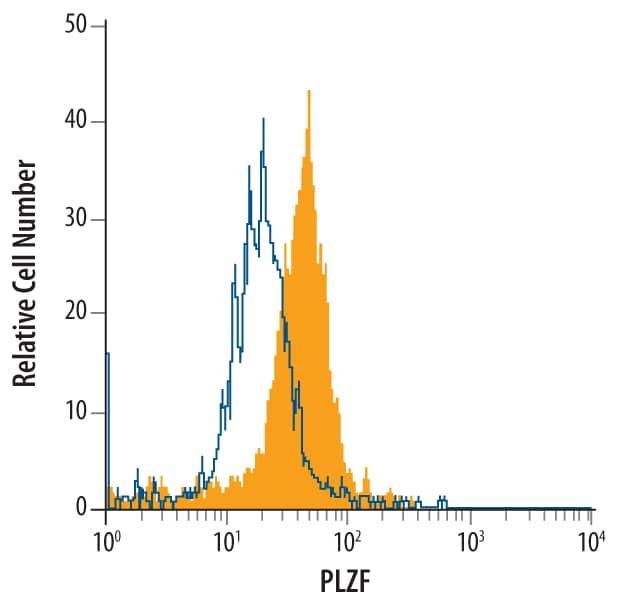

Detection of in HL‑60 Human Cell Line by Flow Cytometry.

HL-60 human acute promyelocytic leukemia cell line was stained with Human PLZF Monoclonal Antibody (Catalog # MAB2944, filled histogram) or isotype control antibody (Catalog # MAB003, open histogram), followed by Phycoerythrin-conjugated Anti-Mouse IgG F(ab')₂Secondary Antibody (Catalog # F0102B). To facilitate intracellular staining, cells were fixed with paraformaldehyde and permeabilized with saponin.

Applications for Human PLZF Antibody

Application

Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Immunocytochemistry

8-25 µg/mL
Sample: Immersion fixed HL-60 human acute promyelocytic leukemia cell line

Intracellular Staining by Flow Cytometry

2.5 µg/10⁶ cells
Sample: HL‑60 human acute promyelocytic leukemia cell line, fixed with paraformaldehyde and permeabilized with saponin

Western Blot

1 µg/mL
Sample: HeLa human cervical epithelial carcinoma cell line, HEL 92.1.7 human erythroleukemic cell line, LNCaP human prostate cancer cell line, and 293T human embryonic kidney cell line

Reviewed Applications

Read 1 review rated 5 using MAB2944 in the following applications:

Immunocytochemistry/Immunofluorescence (1 Review)

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: PLZF

Human PLZF is a 74 kDa nuclear protein that belongs to the POK family of transcriptional repressors. It is a 673 amino acid protein that contains an N-terminal BTB domain, followed by an acidic domain, a proline-rich region and a C-terminal zinc-finger domain. PLZF forms homodimers with RAR alpha and LAZ3 with its zinc-finger region. Alternate splice forms exist which are tissue-specific and show a deletion of either the BTB domain, the acidic region, or the proline-rich region. Human PLZF shares 96%, 97%, 96%, and 96% amino acid identity with rat, mouse, canine, and bovine PLZF, respectively.

Long Name

Promyelocytic Leukemia Zinc Finger

Alternate Names

ZBTB16, ZNF145

Entrez Gene IDs

7704 (Human); 235320 (Mouse)

Gene Symbol

ZBTB16

UniProt

Q05516
