Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

Intracellular Staining by Flow Cytometry

Cited:

Flow Cytometry

Label

Alexa Fluor 488 (Excitation = 488 nm, Emission = 515-545 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 723505

View all STING/TMEM173 Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human STING/TMEM173
Ala215-Ser379
Accession # Q86WV6

Specificity

Detects human STING/TMEM173 in direct ELISAs and Western blots.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human STING/TMEM173 Alexa Fluor® 488-conjugated Antibody

Detection of STING/TMEM173 antibody in Human PBMC Monocytes antibody by Flow Cytometry.

Detection of STING/TMEM173 in Human PBMC Monocytes by Flow Cytometry.

Human peripheral blood mononuclear cells (PBMC) monocytes were stained with Mouse Anti-Human STING/TMEM173 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # IC7169G, filled histogram) or isotype control antibody (Catalog # IC0041G, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

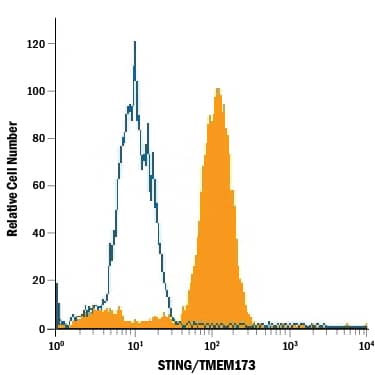

Detection of STING/TMEM173 antibody in THP-1 Human Cell Line antibody by Flow Cytometry.

Detection of STING/TMEM173 in THP‑1 Human Cell Line by Flow Cytometry.

THP-1 human acute monocytic leukemia cell line was stained with Mouse Anti-Human STING/TMEM173 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # IC7169G, filled histogram) or isotype control antibody (Catalog # IC0041G, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

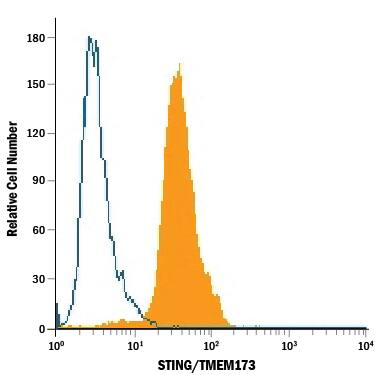

Detection of STING/TMEM173 antibody in U937 Human Cell Line antibody by Flow Cytometry.

Detection of STING/TMEM173 in U937 Human Cell Line by Flow Cytometry.

U937 human histiocytic lymphoma cell line was stained with Mouse Anti-Human STING/TMEM173 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # IC7169G, filled histogram) or isotype control antibody (Catalog # IC0041G, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

Applications for Human STING/TMEM173 Alexa Fluor® 488-conjugated Antibody

Application
Recommended Usage

Intracellular Staining by Flow Cytometry

5 µL/106 cells
Sample: Human peripheral blood mononuclear cells (PBMC) monocytes, THP‑1 human acute monocytic leukemia cell line, and U937 human histiocytic lymphoma cell line fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005)
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: STING/TMEM173

STING (Stimulator of Interferon Genes), also called ERIS, MPYS, or MITA and designated TMEM173, is a 40-42 kDa 4-transmembrane protein that mediates both antiviral and MHC-II antigen recognition responses. STING is found predominantly in the endoplasmic reticulum. It acts as an adaptor protein for intracellular viral detection molecules, participating in the induction of type I interferon. It also may play a role in the initiation of apoptosis following MHC-II engagement. Cells known to express STING include B cells, dendritic cells, macrophages, and monocytes. Human STING is 379 amino acids (aa) in length. It contains an N-terminal cytoplasmic region (aa 1-20), four transmembrane segments (aa 21-173), and a C-terminal cytoplasmic domain (aa 174-379). Ubiquitination occurs at Lys150, and phosphorylation occurs at Ser358. STING forms 80 kDa homodimers. There are two potential splice forms, one that shows a 25 aa substitution for aa 1-173, and another that possesses an alternative start site at Met215, coupled to a premature truncation following Arg334. Over aa 215-379, human and mouse STING share 76% aa sequence identity.

Long Name

Stimulator of Interferon Genes Protein/Transmembrane protein 173

Alternate Names

ERIS, MITA, MPYS, NET23, TMEM173

Entrez Gene IDs

340061 (Human); 72512 (Mouse)

Gene Symbol

STING1

UniProt

Q86WV6 (Human)

Additional STING/TMEM173 Products

Product Documents

Product Datasheets

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human STING/TMEM173 Alexa Fluor® 488-conjugated Antibody


This product is provided under an agreement between Life Technologies Corporation and R&D Systems, Inc, and the manufacture, use, sale or import of this product is subject to one or more US patents and corresponding non-US equivalents, owned by Life Technologies Corporation and its affiliates. The purchase of this product conveys to the buyer the non-transferable right to use the purchased amount of the product and components of the product only in research conducted by the buyer (whether the buyer is an academic or for-profit entity). The sale of this product is expressly conditioned on the buyer not using the product or its components (1) in manufacturing; (2) to provide a service, information, or data to an unaffiliated third party for payment; (3) for therapeutic, diagnostic or prophylactic purposes; (4) to resell, sell, or otherwise transfer this product or its components to any third party, or for any other commercial purpose. Life Technologies Corporation will not assert a claim against the buyer of the infringement of the above patents based on the manufacture, use or sale of a commercial product developed in research by the buyer in which this product or its components was employed, provided that neither this product nor any of its components was used in the manufacture of such product. For information on purchasing a license to this product for purposes other than research, contact Life Technologies Corporation, Cell Analysis Business Unit, Business Development, 29851 Willow Creek Road, Eugene, OR 97402, Tel: (541) 465-8300. Fax: (541) 335-0354.

For research use only
