Mouse CCL20/MIP-3 alpha Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB7601

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
MAB7601-100
MAB7601-500
MAB7601-SP

Key Product Details

Species Reactivity

Validated:

Mouse

Cited:

Mouse, Rat

Applications

Validated:

ELISA Capture (Matched Antibody Pair), Neutralization

Cited:

Bioassay, ELISA Development, ELISA Development (Capture), In vivo assay, Neutralization

Label

Unconjugated

Antibody Source

Monoclonal Rat IgG1 Clone # 114908

Product Specifications

Immunogen

E. coli-derived recombinant mouse CCL20/MIP-3 alpha
Ala28-Met97
Accession # O89093

Specificity

Detects mouse CCL20/MIP-3 alpha in ELISAs. Does not cross-react with recombinant human (rh) CCL19, rhCCL20, recombinant mouse (rm) CCL3, 4, 9, 19, rmCXCL2, or recombinant rat CCL20.

Clonality

Monoclonal

Host

Rat

Isotype

IgG1

Endotoxin Level

<0.10 EU per 1 μg of the antibody by the LAL method.

Scientific Data Images for Mouse CCL20/MIP-3 alpha Antibody

Chemotaxis Induced by CCL20/MIP-3 alpha and Neutralization by Mouse CCL20/MIP-3 alpha Antibody.

Chemotaxis Induced by CCL20/MIP-3 alpha and Neutralization by Mouse CCL20/MIP-3 alpha Antibody.

Recombinant Mouse CCL20/MIP-3a (Catalog # 760-M3) chemoattracts the BaF3 mouse pro-B cell line transfected with human CCR6 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Mouse CCL20/MIP-3a (20 ng/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse CCL20/MIP-3a Monoclonal Antibody (Catalog # MAB7601). The ND50 is typically 3-15 µg/mL.

Applications for Mouse CCL20/MIP-3 alpha Antibody

Application
Recommended Usage

Neutralization

Measured by its ability to neutralize CCL20/MIP-3 alpha-induced chemotaxis in the BaF3 mouse pro-B cell line transfected with human CCR6. The Neutralization Dose (ND50) is typically 3-15 µg/mL in the presence of 20 ng/mL Recombinant Mouse CCL20/MIP-3 alpha.

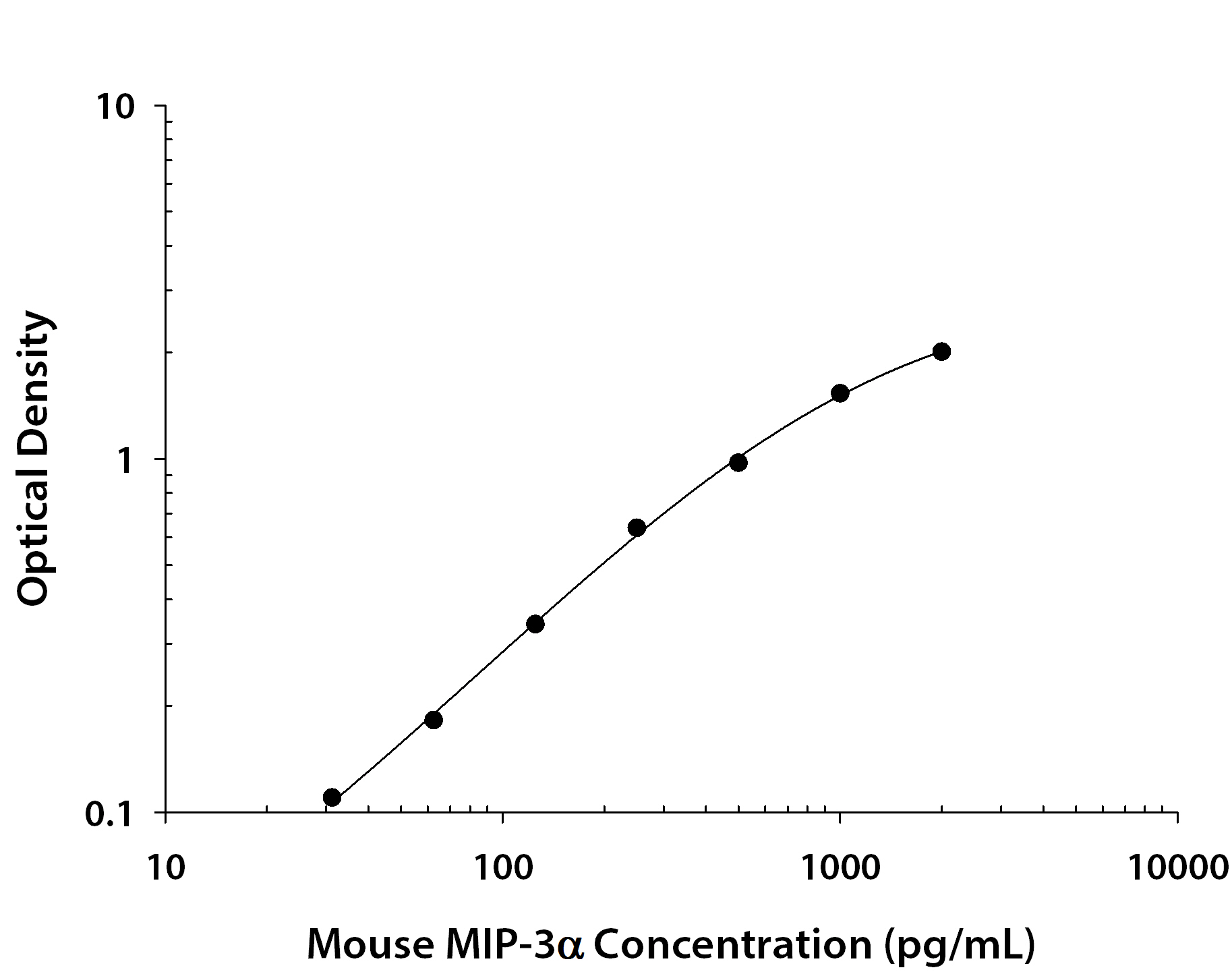

Mouse CCL20/MIP-3 alpha Sandwich Immunoassay

ELISA Capture (Matched Antibody Pair)
Recommended Concentration: 2-8 µg/mL
Use in combination with these reagents:
  • Detection Reagent: Mouse CCL20/MIP-3 alpha Biotinylated Antibody (Catalog # BAF760)
  • Standard: Recombinant Mouse CCL20/MIP-3 alpha Protein (Catalog # 760-M3)
Please Note: Optimal dilutions of this antibody should be experimentally determined.

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CCL20/MIP-3 alpha

MIP-3 alpha, also known as LARC (Liver and Activation-regulated Chemokine) and as Exodus, is one of many novel beta chemokines identified through bioinformatics. Mouse MIP-3 alpha cDNA encodes a 97 amino acid residue precursor protein with a 27 aa residue putative signal peptide that is predicted to be cleaved to form the 70 amino acid (aa) residue mature secreted protein. MIP-3 alpha is distantly related to other beta chemokines (20-28% aa sequence identity). Mouse MIP-3 alpha shares approximately 71% and 63% amino acid sequence homology with rat and human MIP-3 alpha, respectively.

MIP-3 alpha has been shown to be expressed predominantly in lymph nodes, appendix, PBL, fetal liver, fetal lung, and epithelial cells of intestinal tissues. The expression of MIP-3 alpha is strongly up-regulated by inflammatory signals and down-regulated by the anti-inflammatory cytokine IL-10. Synthetic or recombinant MIP-3 alpha has been shown to be chemotactic for lymphocytes and dendritic cells, and inhibits proliferation of myeloid progenitors in colony formation assays. MIP-3 alpha has now been shown to be a unique functional ligand for CCR-6 (previously referred to as GPR-CY4, CKR-L3, or STRL22 orphan receptor), a chemokine receptor that is selectively and highly expressed in human dendritic cells derived from CD34+ cord blood precursors.

References

  1. Baba, M. et al. (1997) J. Biol. Chem. 272:14893.
  2. Hromas, R. et al. (1997) Blood 89:3315.
  3. Greaves, D.R. et al. (1997) J. Exp. Med. 186: 857.
  4. Tanaka, Y. et al. (1999) Eur. J. Immunol. 29:633.

Alternate Names

exodus-1, LARC, MIP-3 alpha, MIP3 alpha

Entrez Gene IDs

6364 (Human); 20297 (Mouse); 29538 (Rat)

Gene Symbol

CCL20

UniProt

Additional CCL20/MIP-3 alpha Products

Product Documents for Mouse CCL20/MIP-3 alpha Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse CCL20/MIP-3 alpha Antibody

For research use only
