Recombinant Human B7-1/CD80 His-tag Alexa Fluor® 488 Protein

R&D Systems, part of Bio-Techne | Catalog # AFG9050

R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
AFG9050-020
Print Quote
Bulk Order
100% Guarantee

Key Product Details

Learn more about FluorokinesTM Fluorescent-Labeled Proteins

Source

HEK293

Accession #

P33681.1

Structure / Form

Labeled with Alexa Fluor® 488 via amines
Excitation Wavelength: 488 nm
Emission Wavelength: 515-545 nm

Conjugate

Alexa Fluor 488 (Excitation= 488 nm, Emission= 515-545 nm)

Applications

Bioactivity

View all B7-1/CD80 Proteins and Enzymes »

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human B7-1/CD80 protein
Val35-Asn242, with a C-terminal 6-His tag

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<1.0 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Val35

Predicted Molecular Mass

25 kDa

SDS-PAGE

45-58 kDa, under reducing conditions.

Activity

Measured by flow cytometry for its ability to bind anti-human B7-1 Monoclonal Antibody conjugated beads. The concentration of Recombinant Human B7-1 His-tag Alexa Fluor® 488 (Catalog # AFG9050) that produces 50% of the binding response is 0.150-50 μg/mL.

Scientific Data Images for Recombinant Human B7-1/CD80 His-tag Alexa Fluor® 488 Protein

Flow cytometry analysis for Recombinant Human B7‑1/CD80 His-tag Alexa Fluor® 488 staining on Human B7‑1/CD80 Monoclonal Antibody conjugated beads.

Streptavidin coated beads conjugated to biotinylated Human B7‑1/CD80 (BAM1402) were stained with the indicated concentrations of Recombinant Human B7‑1/CD80 His-tag Alexa Fluor® 488 Protein (Catalog # AFG9050).

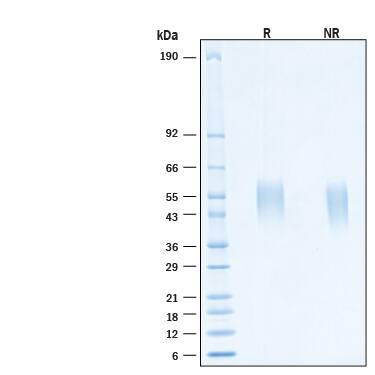

Recombinant Human B7‑1/CD80 His-tag Alexa Fluor® 488 Protein SDS-PAGE.

2 μg/lane of Recombinant Human B7‑1/CD80 His-tag Alexa Fluor® 488 Protein (Catalog # AFG9050) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 45-58 kDa.

Formulation, Preparation and Storage

AFG9050
Formulation Supplied as a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping The product is shipped with dry ice or equivalent. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Protect from light. Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 6 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after opening.
  • 3 months, -20 to -70 °C under sterile conditions after opening.

Background: B7-1/CD80

B7-1/CD80 and B7-2/CD86, together with their receptors CD28 and CTLA-4, constitute one of the dominant co-stimulatory pathways that regulate T- and B-cell responses (1). Although both CTLA-4 and CD28 can bind to the same ligands, CTLA-4 binds to B7-1 and B7-2 with a 20-100 fold higher affinity than CD28 and is involved in the down-regulation of the immune response (2-6). Mature human B7-1 consists of a 208 aa extracellular domain (ECD) with two immunoglobulin-like domains, a 21 aa transmembrane domain, and a 25 aa cytoplasmic domain (7). Within the ECD, human B7-1 shares 50% aa sequence identity with mouse and rat
B7-1. Alternative splicing generates a 30 kDa soluble isoform that lacks the transmembrane segment and retains the ability to bind CD28 and CTLA-4 and an isoform that lacks the second Ig-like domain and the transmembrane segment (8). Both human and mouse B7-1 and B7-2 can bind to either human or mouse CD28 and
CTLA-4 (1). B7-1 is expressed on activated B cells, activated T cells, and macrophages. B7-2 is constitutively expressed on interdigitating dendritic cells, Langerhans cells, peripheral blood dendritic cells, memory B cells, and germinal center B cells (2).

References

  1. Ville, S. et al. (2015) Front. Immunol. 6:411.
  2. Azuma, M. et al. (1993) Nature 366:76.
  3. Freeman, G.J. et al. (1993) Science 262:909.
  4. Chen, C. et al. (1994) J. Immunol. 152:4929.
  5. Freeman, G.J. et al. (1993) J. Exp. Med. 178:2185.
  6. Lanier, L. et al. (1995) J. Immunol. 154:97.
  7. Freeman, G.J. et al. (1989) J. Immunol. 143:2714.
  8. Kakoulidou, M. et al. (2007) Scand. J. Immunol. 66:529.

Alternate Names

B71, CD80

Entrez Gene IDs

941 (Human); 12519 (Mouse); 25408 (Rat); 102140078 (Cynomolgus Monkey)

Gene Symbol

CD80

UniProt

P33681.1
