Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein, CF

R&D Systems, part of Bio-Techne | Catalog # AVI1137

Biotinylated
R&D Systems, part of Bio-Techne
Catalog #
Availability
Size / Price
Qty
Loading...
AVI1137-050

Key Product Details

Learn more about Avi-tag Biotinylated Proteins

Source

CHO

Accession #

Structure / Form

Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human Siglec-3/CD33 protein
Human Siglec-3/CD33
(Met17-His259)
Accession # P20138.2
HHHHHH  Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Met17

Predicted Molecular Mass

29 kDa

SDS-PAGE

45-52 kDa, under reducing conditions

Activity

Measured by its binding ability in a functional ELISA.
When Human Siglec-3/CD33 (6C5/2) Antibody (Catalog # MAB1137) is immobilized at 0.5 µg/mL (100 µL/well), Biotinylated Recombinant Human Siglec-3/CD33 His-tag Avi-tag (Catalog # AVI1137) binds with an ED50 of 60-360 pg/mL.

Measured by the ability of the immobilized protein to support the adhesion of human red blood cells. Subramanian, S. et al. (2006) Blood 107:2548.
The ED50 for this effect is 0.05-0.4 μg/mL.

Scientific Data Images for Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein, CF

Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein Binding Activity

Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein Binding Activity

When Human Siglec-3/CD33 (6C5/2) Antibody (Catalog # MAB1137) is immobilized at 0.5 µg/mL, 100 µL/well, Biotinylated Recombinant Human Siglec-3/CD33 His-tag Avi-tag (Catalog # AVI1137) binds with an ED50 of 60-360 pg/mL.

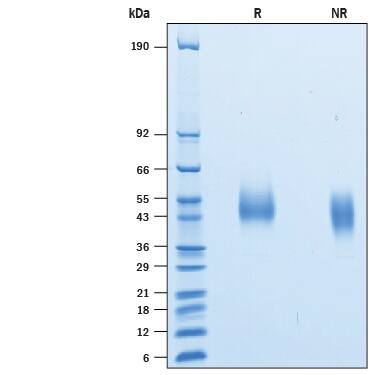

Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein SDS-PAGE

Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein SDS-PAGE

2 μg/lane of Biotinylated Recombinant Human Siglec-3/CD33 His-tag Avi-tag (Catalog # AVI1137) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 45-52 kDa.

Formulation, Preparation and Storage

AVI1137
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Siglec-3/CD33

Siglecs (sialic acid binding Ig-like lectins) are I-type (Ig-type) lectins belonging to the Ig superfamily. They are characterized by an N-terminal Ig-like V-type domain which mediates sialic acid binding, followed by varying numbers of Ig-like C2-type domains (1, 2). Eleven human Siglecs have been cloned and characterized. They are sialoadhesin/CD169/Siglec-1, CD22/Siglec-2, CD33/Siglec-3, Myelin-Associated Glycoprotein (MAG/Siglec-4a) and Siglecs 5 to 11 (1-3). To date, no Siglec has been shown to recognized any cell surface ligand other than sialic acids, suggesting that interactions with glycans containing this carbohydrate are important in mediating the biological functions of Siglecs. Siglecs 5 to 11 share a high degree of sequence similarity with CD33/Siglec-3 both in their extracellular and intracellular regions. They are collectively referred to as CD33-related Siglecs. One remarkable feature of the CD33-related Siglecs is their differential expression pattern within the hematopoietic system (1, 2). This fact, together with the presence of two conserved immunoreceptor tyrosine-based inhibition motifs (ITIMs) in their cytoplasma tails, suggests that CD33-related Siglecs are involved in the regulation of cellular activation within the immune system. Human Siglec-3 is alternatively known as myeloid cell surface antigen CD33 and GP67. Human Siglec-3 cDNA encodes a 364 amino acid (aa) polypeptide with a hydrophobic signal peptide, an N-terminal Ig-like V-type domain, one Ig-like C2-type domains, a transmembrane region and a cytoplasmic tail (1, 4). Siglec-3 expression is restricted to cells of myelomonocytic lineage (2). It binds sialic acid preferring alpha2,3- linkage over alpha2,6- linkage (5). Studies indicated that Siglec-3 recruits SHP-1 and SHP-2 to its ITIMs (6, 7). When co-crosslinking with Fc gammaR1, Siglec-3 inhibits tyrosine phosphorylation and calcium mobilization, suggesting Siglec-3 can mediate inhibitory signals (7).

References

  1. Crocker, P.R. and A. Varki (2001) Trends Immunol. 22:337.
  2. Crocker, P.R. and A. Varki (2001) Immunology 103:137.
  3. Angata, T. et al. (2002) J. Biol. Chem. 277:24466.
  4. Simmons, D. and B. Seed (1988) J. Immunol. 141:2797.
  5. Freeman, S.D. et al. (1995) Blood 85:2002.
  6. Taylor, V.C. et al. (1999) J. Biol. Chem. 274:11505.
  7. Ulyanova, T. et al. (1999) Eur. J. Immunol. 29:3440.

Long Name

Sialic Acid Binding Ig-like Lectin 3

Alternate Names

CD33, gp67, Siglec3

Entrez Gene IDs

945 (Human); 12489 (Mouse); 102117580 (Cynomolgus Monkey)

Gene Symbol

CD33

UniProt

Additional Siglec-3/CD33 Products

Product Documents for Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein, CF

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human Siglec-3/CD33 His-Tag Avi-Tag Protein, CF

For research use only
