Simple Plex Human IL-12 p70 Cartridge

Name: Simple Plex Human IL-12 p70 Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000498

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000498

Cartridges below are for plasma/serum (PS-000498) cartridges. Stocked cartridges are indicated with ST01 and available to ship in 3-4 days. Simple Plex Human IL-12 p70 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (25 uL), Serum (25 uL), EDTA Plasma (25 uL)
Sensitivity:	0.39 pg/mL
Assay Range:	0.62 - 5,890 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma)
Simple Plex Human IL-12 p70 Cartridge Summary:	Simple Plex assay for the detection of human IL-12p70 in cell culture supernatant (CCS), serum, and EDTA plasma.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human IL-12 p70 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human IL-12 p70 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human IL-12p70.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	15	15
Mean (pg/mL)	36.2	1657	33.2	1587
Standard Deviation	1.25	90	1.95	137
CV%	3.4	5.4	5.9	8.6

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=6)	87	73-117
Serum (n=6)	81	73-90

Linearity

Samples containing and/or spiked with high concentrations of human IL-12p70 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Human IL-12 p70 Cartridge

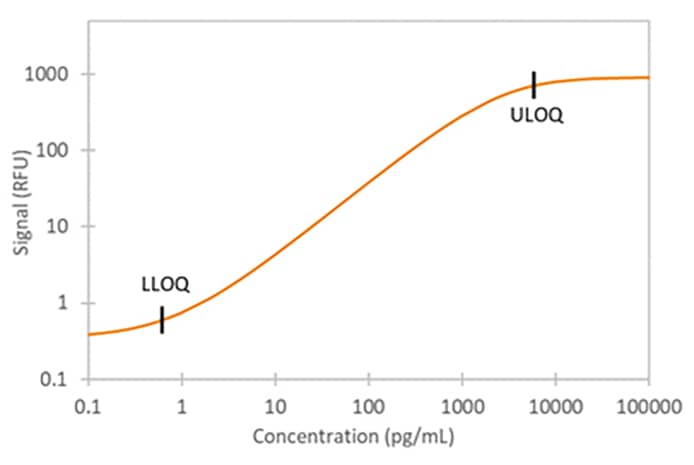

	Human IL-12 p70 Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-12 p70

Interleukin 12 (IL-12), also known as natural killer cell stimulatory factor (NKSF) or cytotoxic lymphocyte maturation factor (CLMF), is a heterodimeric pleiotropic cytokine made up of a 40 kDa (p40) subunit and a 35 kDa (p35) subunit. The IL-12 p40 subunit is shared by IL-23, another heterodimeric cytokine that has biological activities similar to, as well as distinct from, IL-12. IL-12 is produced by macrophages and B cells and has been shown to have multiple effects on T cells and natural killer (NK) cells. While mouse IL-12 is active on both human and mouse cells, human IL-12 is not active on mouse cells.

Item	Value
Long Name	Interleukin 12 p70
Entrez Gene IDs	3592 (Human); 16159 (Mouse); 84405 (Rat)
Alternate Names	CLMF p35, Cytotoxic lymphocyte maturation factor 35 kDa subunit, IL-12 p70, IL-12 subunit p35, IL-12, subunit p35, IL12 p70, NF cell stimulatory factor chain 1, NK cell stimulatory factor chain 1, NKSF1, interleukin 12, p35, interleukin 12A (natural killer cell stimulatory factor 1, cytotoxic lymphocytematuration factor 1, p35), interleukin-12 alpha chain, interleukin-12 subunit alpha, natural killer cell stimulatory factor 1, 35 kD subunit, p35

Compatible Instruments

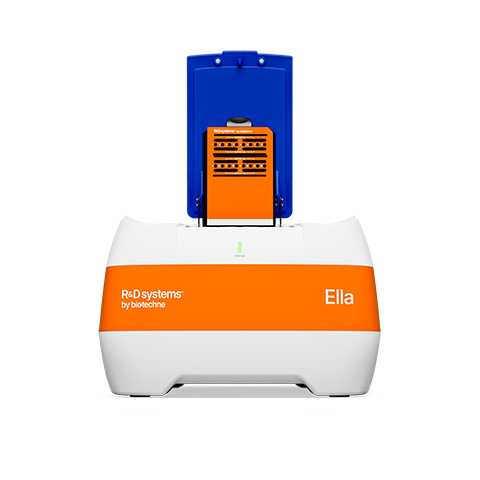

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human IL-12 p70 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
