Simple Plex Human IL-6 R alpha Cartridge

Name: Simple Plex Human IL-6 R alpha Cartridge
Brand: ProteinSimple
SKU: SPCKB-PS-000505

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-PS-000505

Simple Plex Human IL-6R alpha assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Cell Culture Supernates (10 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Urine (10 uL)
Sensitivity:	0.214 pg/mL
Assay Range:	0.78 - 2,976 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine)
Simple Plex Human IL-6 R alpha Cartridge Summary:	Simple Plex assay for the detection of human Interleukin 6 Receptor alpha (IL-6 R alpha ) in cell culture supernatant (CCS), serum and plasma (EDTA/Heparin), and urine.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Human IL-6 R alpha Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Human IL-6 R alpha Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Human
Specificity	Natural and recombinant human IL-6 R alpha.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Urine

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	10	10
Mean (pg/mL)	46.5	2131	44.6	2219
Standard Deviation	1.63	173	1.97	85
CV%	3.5	8.1	4.4	3.8

Recovery

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Cell Culture Media (n=3)	97	94-101

Linearity

Samples containing and/or spiked with high concentrations of human IL-6 R alpha were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Examples for Simple Plex Human IL-6 R alpha Cartridge

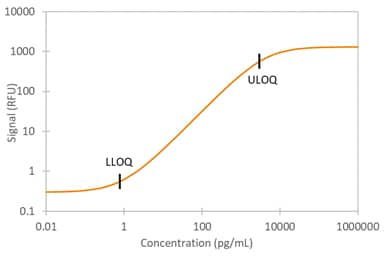

	Human IL-6 R alpha Ella Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-6R alpha

IL-6 R alpha is a transmembrane subunit of the receptor for Interleukin-6. It associates with gp130 which is a shared component of the receptors for CLC, CNTF, CT-1, IL-11, IL-27, LIF, and OSM. Soluble forms of IL-6 R alpha are generated by both alternative splicing and proteolytic cleavage. In a mechanism known as trans-signaling, complexes of soluble IL-6 and IL-6 R alpha elicit responses from gp130-expressing cells that lack cell surface IL-6 R alpha. IL-6 plays important roles in the acute phase reaction, inflammation, hematopoiesis, bone metabolism, and cancer progression. IL-6, along with TNF-alpha and IL-1, drives the acute inflammatory response and the transition from acute inflammation to either acquired immunity or chronic inflammatory disease. When dysregulated, it contributes to chronic inflammation in obesity, insulin resistance, inflammatory bowel disease, arthritis, sepsis, and atherosclerosis.

Item	Value
Long Name	Interleukin 6 Receptor alpha
Entrez Gene IDs	3570 (Human); 16194 (Mouse); 24499 (Rat); 102116430 (Cynomolgus Monkey)
Alternate Names	CD126, IL-6 R alpha, IL-6R alpha, IL-6R-1, IL-6Ra, IL6Q, IL6R, IL6R alpha, IL6RA, IL6RQ, gp80, interleukin 6 receptor

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Human IL-6 R alpha Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
