Simple Plex Mouse/Rat FGF-21 Cartridge

Name: Simple Plex Mouse/Rat FGF-21 Cartridge
Brand: ProteinSimple
SKU: SPCKB-MP-006323

ProteinSimple, part of Bio-Techne | Catalog # SPCKB-MP-006323

Simple Plex Mouse/Rat FGF-21 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD09, and wash buffer.

Customize Your Simple Plex Cartridge

Create your custom Simple Plex cartridge for up to 8 targets. Choose from more than 250 targets across multiple species.

Build My Cartridge

Key Product Details

Assay Length:	90 minutes
Sample Type & Volume Required Per Well:	Mouse Cell Culture Supernates (10 uL), Serum (25 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
Sensitivity:	0.7 pg/mL
Assay Range:	2.62 - 4,000 pg/mL (Mouse Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Simple Plex Mouse/Rat FGF-21 Cartridge Summary:	Simple Plex assay for the detection of mouse and rat Fibroblast Growth Factor 21 (FGF-21) in cell culture supernatant (CCS)*, serum, and plasma (EDTA/Heparin)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay’s minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View Full Technical Details for Simple Plex Mouse/Rat FGF-21 Cartridge

Technical Data
Citations

Product Specifications for Simple Plex Mouse/Rat FGF-21 Cartridge

Assay Type	Automated sandwich ELISA
Format	Microfluidic cartridge containing three Glass Nano Reactors (GNR)
Reactivity	Mouse, Rat
Specificity	This assay recognizes natural and recombinant mouse/rat FGF-21.
Cross-reactivity	< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.
Interference	No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Cell Culture Supernates, Mouse Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma

	Intra-Assay Precision			Inter-Assay Precision
Sample	1	2	2	1
n	16	16	29	29
Mean (pg/mL)	27.3	1439	1345	26.2
Standard Deviation	2.22	132	104	2.39
CV%	8.1	9.2	7.7	9.1

Linearity

Samples containing and/or spiked with high concentrations of mouse/rat FGF-21 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Examples for Simple Plex Mouse/Rat FGF-21 Cartridge

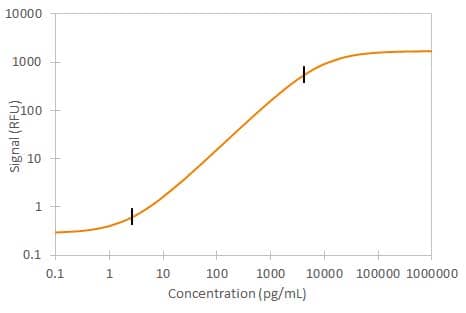

	Mouse/Rat FGF-21 Simple Plex Assay Standard Curve

Preparation and Storage

Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: FGF-21

FGF-21 (Fibroblast Growth Factor 21) is a member of an FGF subfamily that also includes FGF-19 and FGF-23. FGF-19 subfamily members lack a heparin binding domain, enabling them to freely circulate as endocrine factors and diffuse within tissues. FGF-21 signals through Klotho beta in complex with FGF receptors. It regulates cellular metabolism including glucose uptake in adipocytes and cellular sensitivity to insulin. It is basally expressed in the pancreas, thymus, liver, and adipose tissue and is upregulated in liver, muscle, and fat in obesity and diabetes. FGF-21 also plays a role in cell survival and proliferation, mesenchymal stem cell differentiation, circadian rhythm, and controlling reproductive capacity.

Item	Value
Long Name	Fibroblast Growth Factor 21
Entrez Gene IDs	26291 (Human); 56636 (Mouse)
Alternate Names	FGF-21, FGF21, fibroblast growth factor 21

Compatible Instruments

Ella - Automated Immunoassay Platform | ProteinSimple

Ella from ProteinSimple, a Bio-Techne brand. Get single or multiplex immunoassay results in less than 90 minutes that are consistent and highly reproducible.

Learn More

Product Documents for Simple Plex Mouse/Rat FGF-21 Cartridge

Product Datasheets

Download Product Insert

COA

Protocols & Manuals

Download Protocol
