Human Fc gamma RIII (CD16) Antibody

R&D Systems, part of Bio-Techne | Catalog # MAB4325

R&D Systems, part of Bio-Techne

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

CyTOF-ready, Flow Cytometry, Immunocytochemistry, Immunohistochemistry, Western Blot

Cited:

Immunocytochemistry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2A Clone # 1001049

Product Specifications

Immunogen

Human embryonic kidney cell, HEK293-derived human Fc gamma RIIIA/CD16a
Gly17-Gln208
Accession # P08637

Specificity

Detects human Fc gamma RIIIA/CD16a in direct ELISAs. In direct ELISAs, 60% cross-reactivity with Fc gamma RIIIB/CD16b is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2A

Scientific Data Images for Human Fc gamma RIII (CD16) Antibody

Detection of Human Fc? RIIIA/CD16a antibody by Western Blot.

Detection of Human Fc gamma RIII (CD16) by Western Blot.

Western blot shows lysates of human lung tissue and human peripheral blood mononuclear cells (PBMCs). PVDF membrane was probed with 2 µg/mL of Mouse Anti-Human Fc gamma RIII (CD16) Monoclonal Antibody (Catalog # MAB4325) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for Fc gamma RIII (CD16) at approximately 50 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

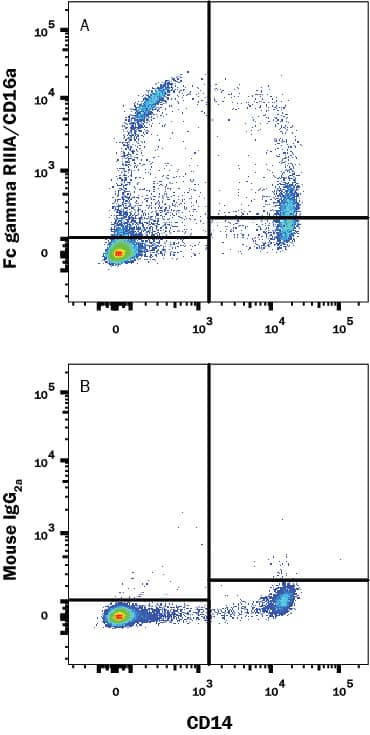

Detection of Fc? RIIIA/CD16a antibody in Human PBMCs antibody by Flow Cytometry.

Detection of Fc gamma RIII (CD16) in Human PBMCs by Flow Cytometry.

Human peripheral blood mononuclear cells (PBMCs) were stained with (A) Mouse Anti-Human Fc gamma RIII (CD16) Monoclonal Antibody (Catalog # MAB4325) or (B) Mouse IgG2A isotype control antibody (Catalog # MAB003) followed by Goat anti-Mouse IgG APC-conjugated Secondary Antibody (Catalog # F0101B) and Mouse anti-Human CD14 PE-conjugated Monoclonal Antibody (Catalog # FAB3832P). View our protocol for Staining Membrane-associated Proteins.
Fc? RIIIA/CD16a antibody in Human PBMCs by Immunocytochemistry (ICC).

Fc gamma RIII (CD16) in Human PBMCs.

Fc gamma RIII (CD16) was detected in immersion fixed human peripheral blood mononuclear cells (PBMCs) using Mouse Anti-Human Fc gamma RIII (CD16) Monoclonal Antibody (Catalog # MAB4325) at 8 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; Catalog # NL007) and counterstained with DAPI (blue). Specific staining was localized to cell surfaces. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Applications for Human Fc gamma RIII (CD16) Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: Human PBMC

Immunocytochemistry

8-25 µg/mL
Sample: Immersion fixed human peripheral blood mononuclear cells (PBMCs)

Immunohistochemistry

5-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human spleen

Western Blot

2 µg/mL
Sample: Human lung tissue and Human peripheral blood mononuclear cells (PBMCs)

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Reconstitution Buffer Available:
Size / Price
Qty
Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Fc gamma RIII (CD16)

Fc gamma RIIIa is a low/intermediate affinity receptor for polyvalent immune-complexed IgG. It is involved in phagocytosis, secretion of enzymes and inflammatory mediators, antibody-dependent cytotoxicity and clearance of immune complexes (1, 2). In humans, it is a 50-70 kDa type I transmembrane activating receptor expressed by NK cells, T cells, monocytes, and macrophages (1). Fc gamma RIIIb is highly related, sharing 97% amino acid (aa) identity within the extracellular domain (ECD), but is a GPI-linked receptor expressed on human neutrophils and eosinophils (1, 2). The ECD of Fc gamma RIIIa shares 63%, 61%, 65%, 59% and 58% aa identity with mouse Fc gamma RIV, rat Fc gamma RIIIa, feline CD16, bovine CD16 and porcine Fc gamma RIIIb paralogs, respectively. The Fc gamma RIIIa cDNA encodes 254 aa including a 16 aa signal sequence, 191 aa ECD with two C2-type Ig-like domains and five potential N-glycosylation sites, a 22 aa transmembrane (TM) sequence and a 25 aa cytoplasmic domain. In humans, a single nucleotide polymorphism creates high binding (176V) and low binding (176F) forms that, when homozygous, may influence susceptibility to autoimmune diseases or response to therapeutic IgG antibodies (3, 4). Catalog # 4325-FC is expressed as the 176V isoform of Fc gamma RIIIa. Fc gamma RIIIa surface expression requires interaction of an accessory chain, either the common gamma-chain or CD3 zeta (5, 6). Glycosylation patterns, electrophoretic mobility and binding affinity appear to differ between NK cell and monocyte Fc gamma RIIIa (7). The ECD of both Fc gamma RIIIa and b can be proteolytically cleaved and retain binding activity in soluble form (8-11). In monocytes and macrophages, activation and phagocytosis can trigger Fc gamma RIIIa release (11). Soluble Fc gamma RIII can be detected in normal plasma and is increased in rheumatoid arthritis and in coronary artery diseases (9, 10).

References

  1. Nimmerjahn, F. and J.V. Ravetch (2006) Immunity 24:19.
  2. Ravetch, J.V. and B. Perussia (1989) J. Exp. Med. 170:481.
  3. Wu, J. et al. (1997) J. Clin. Invest. 100:1059.
  4. Dall’Ozzo, S. et al. (2004) Cancer Res. 64:4664.
  5. Kim, M.-K. et al. (2003) Blood 101:4479.
  6. Lanier, L.L. et al. (1989) Nature 342:803.
  7. Edberg, J.C. and R.P. Kimberley (1997) J. Immunol. 159:3849.
  8. Li, P. et al. (2007) J. Biol. Chem. 282:6210.
  9. Masuda, M. et al. (2003) J. Rheumatol. 30:1911.
  10. Masuda, M. et al. (2006) Atherosclerosis 188:377.
  11. Webster, N.L. et al. (2006) J. Leukoc. Biol. 79:294.

Long Name

Fc gamma Receptor III

Alternate Names

FcgRIII

Entrez Gene IDs

14131 (Mouse); 102140945 (Cynomolgus Monkey)

Gene Symbol

FCGR3

UniProt

Additional Fc gamma RIII (CD16) Products

Product Documents for Human Fc gamma RIII (CD16) Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human Fc gamma RIII (CD16) Antibody

For research use only
